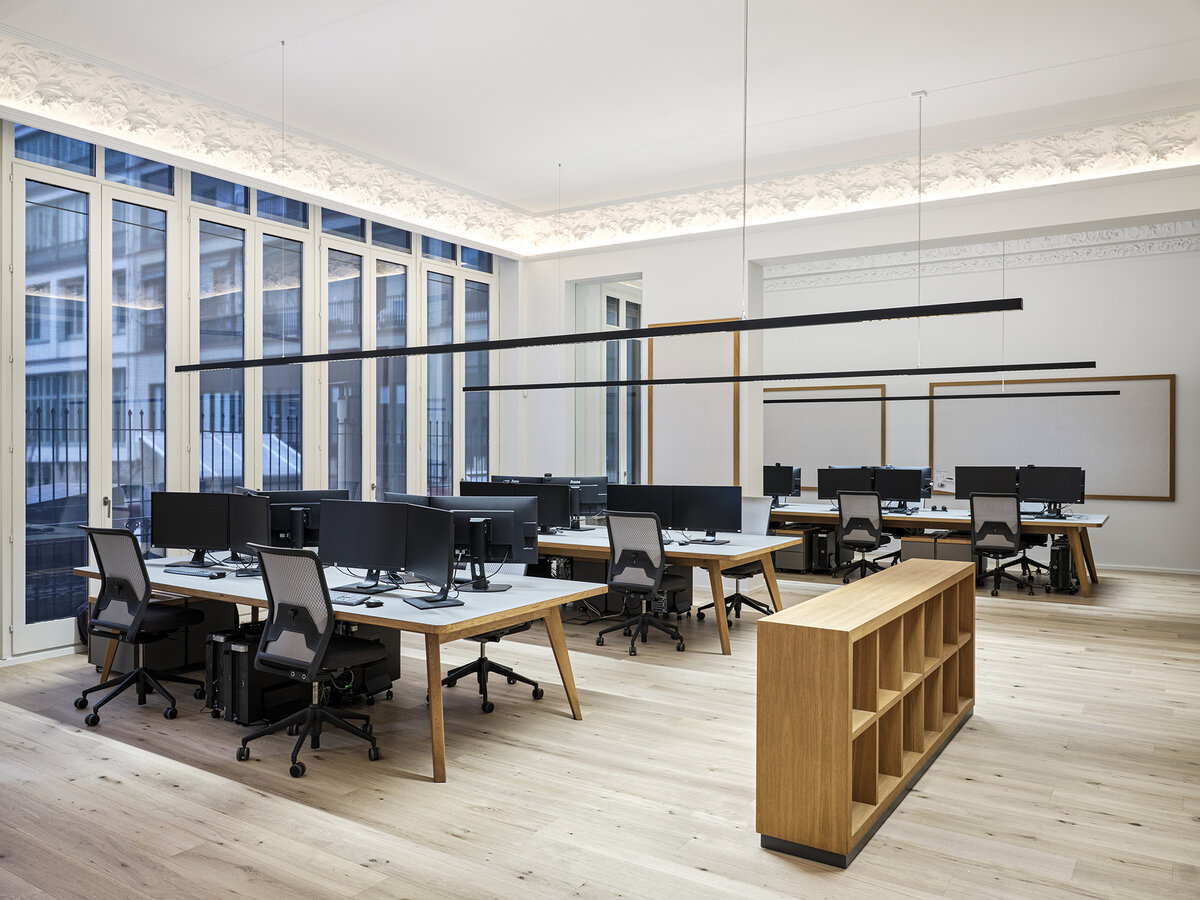

Creative Lab BCN

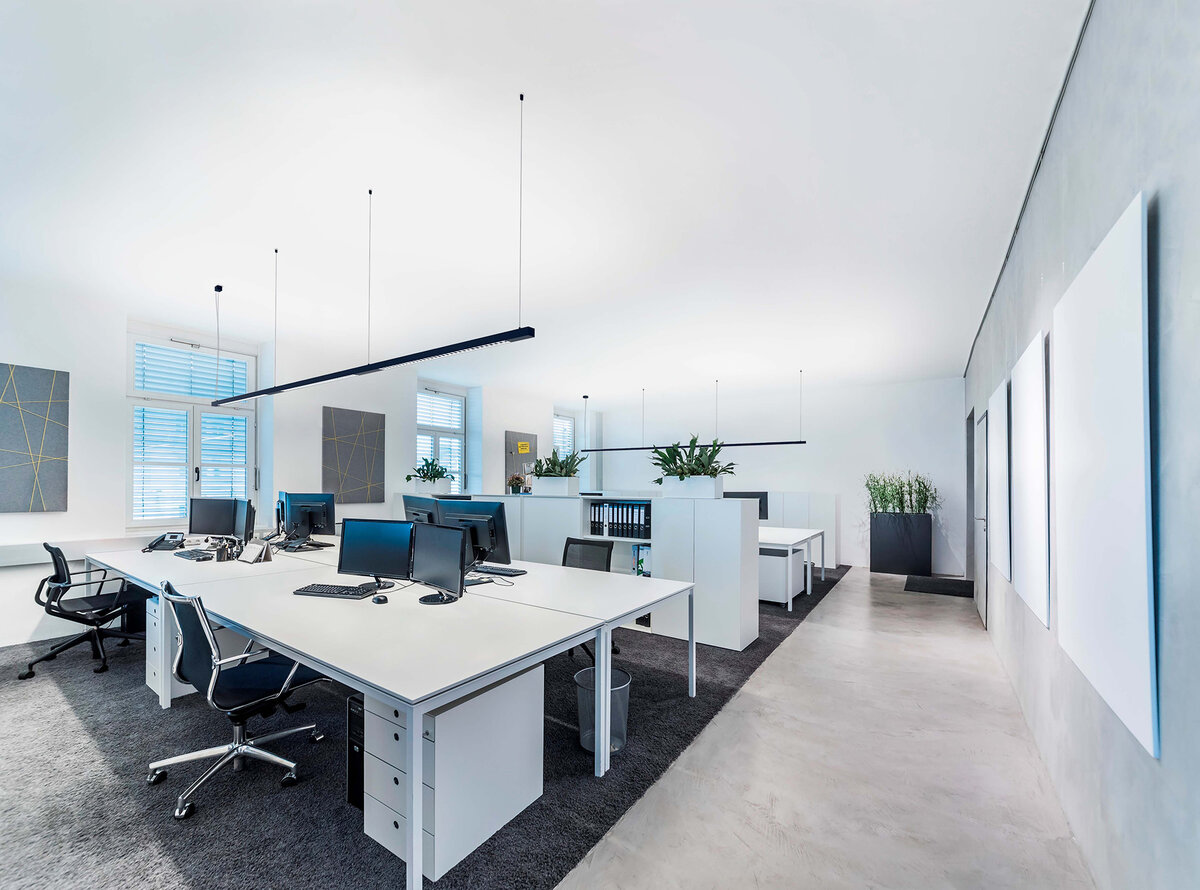

gobli gmbH

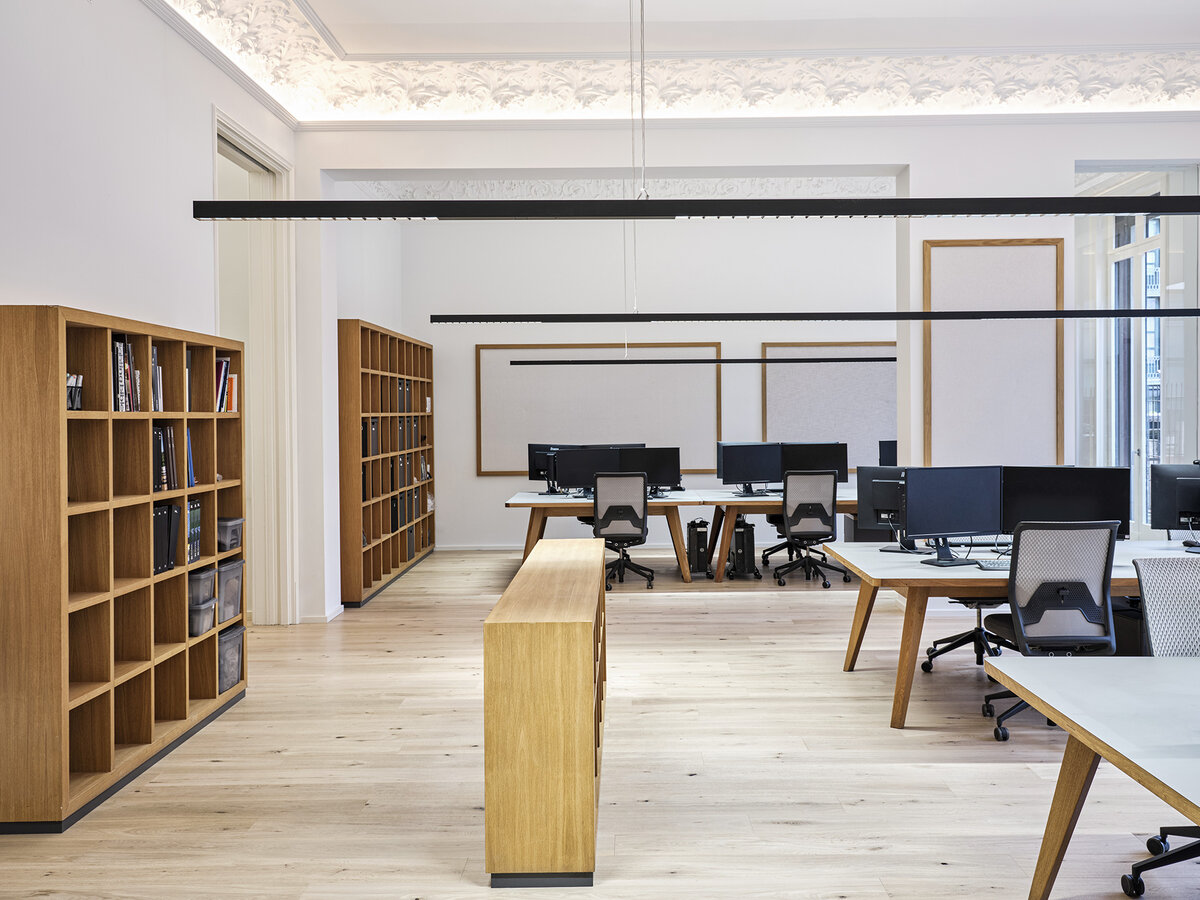

Creative Lab BCN
F+P Architekten

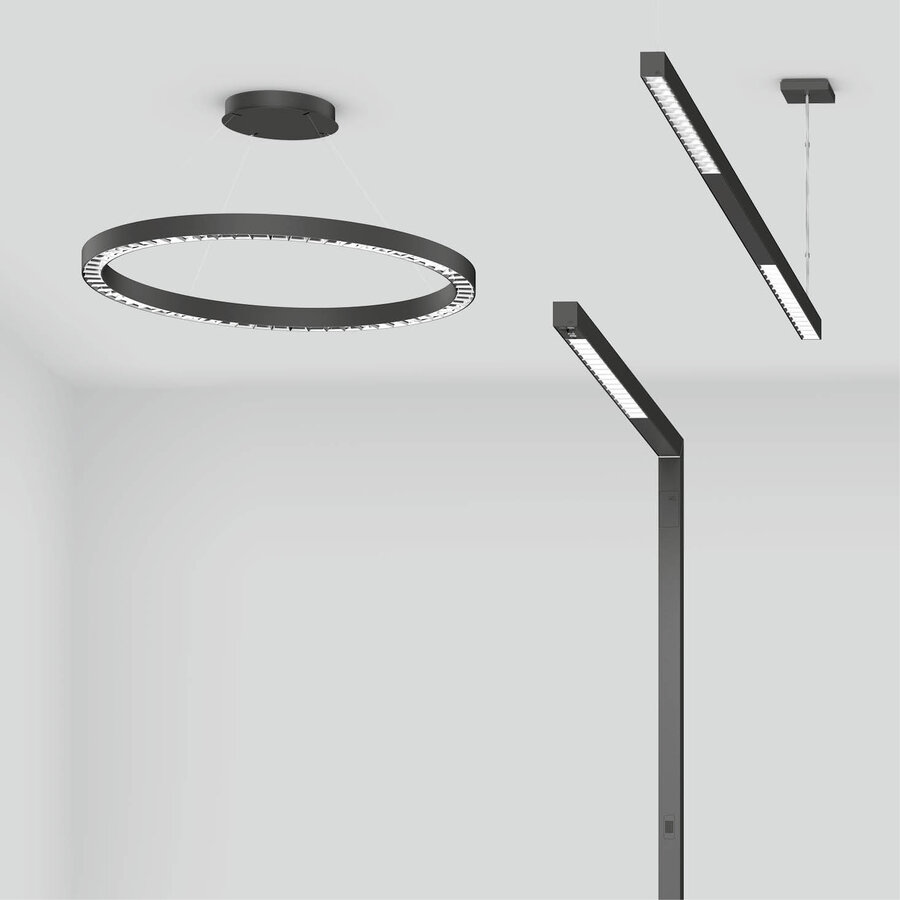

BETO variety

BETO

ceiling / suspended system

Quickinfo

3000 K, 4000 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM
UGR < 10, UGR < 13, UGR < 16, UGR < 19
up to ↓ 10,200 lm/↑ 8,640 lm
up to 164 lm/W
L90 / 50000 h
DALI-2, DALI-2 sensor
Reflector
IP20 / PC1 220-240V

Colour

    • System components
    Single luminaire

    Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    Download all
    • 3DS
    • DWG - 3D
    • Revit BIM data

    Description

    Luminaire housing from extruded aluminium profile, angular design (only 42 x 42 mm); no visible screws; designed for lighting systems; different versions: choice of linear, S-shaped or CURVE segment design (90° or 180°); surface powder coated; for ceiling surface mounting or suspended mounting; pendant fitting with cable suspension; height adjustment without tools; spring clip attachment to the luminaire; incl. feeder cable; extruded profile for improved thermal management; high gloss reflector with faceted design; either with direct or direct / indirect light distribution, or with high quality aluminum-vaporised micro-faceted reflector for homogeneous vertical lighting intensity; indirect light component with integrated PC boards and high quality lens system for maximum, homogeneous ceiling illumination, separately controllable; energy-efficient LEDs with very good colour rendering

    DiiA® standards 251, 252, 253

    curve elements

    DIN EN 12464-1 UGR ≤ 19

    glare-free direct and 170° indirect illumination

    CRI ≥ 98 XPECTRUM (optional)

    System components

    Click to see components

    BETO ceiling / suspended system;BETO LINEAR DIRECT ceiling / suspended system

    BETO linear direct ceiling / suspended system

    3000 K, 4000 K
    CRI ≥ 80, CRI ≥ 90 / 3 SDCM
    UGR < 10, UGR < 13, UGR < 16, UGR < 19
    up to ↓ 10,200 lm/↑ 8,640 lm
    up to 164 lm/W
    L90 / 50000 h
    DALI-2, DALI-2 sensor
    Reflector
    IP20 / PC1 220-240V

    BETO END CAPS

    BETO BLIND COVER

    250 mm, 500 mm

    BETO SYSTEM CONNECTOR

    90° | incl. through wire 5 × 1.5 mm²

    CANOPY / FEEDER CABLE

    5 x 1,5 mm²
    BETO S-LINE 225 L DIRECT ceiling / suspended system;BETO S-LINE 225 L DIRECT / INDIRECT POWER suspended system

    BETO s-line 225 L direct / indirect power suspended system

    3000 K, 4000 K
    CRI ≥ 80, CRI ≥ 90 / 3 SDCM
    UGR < 10, UGR < 13, UGR < 16, UGR < 19
    up to ↓ 10,200 lm/↑ 8,640 lm
    up to 164 lm/W
    L90 / 50000 h
    DALI-2, DALI-2 sensor
    Reflector
    IP20 / PC1 220-240V

    MOVE IT SYSTEM | BETO SYSTEM | BASO SYSTEM CABLE SUSPENSION

    Products and codes

    Filter
    100
    lm/W
    164
    lm/W
    2270
    lm
    10200
    lm
    3710
    lm
    8640
    lm
    22.6
    W
    144
    W
    0.54
    0.74
    0.49
    0.67

    Colour

    • Reflector

    • BETO LINEAR BLACKBOARD DIRECT / INDIRECT suspended system

    BETO linear blackboard direct / indirect suspended system

    BETO linear blackboard direct / indirect suspended system

    Status
    Article number(s)
    Type
    Dimming
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 75 W, 116 lm/W, length 1,700 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 76 W, 123 lm/W, length 1,700 mm
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 120 W, 126 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 122 W, 134 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 142 W, 124 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 144 W, 131 lm/W, length 3,400 mm
    DALI-2
    BETO LINEAR BLACKBOARD DIRECT / INDIRECT suspended system

    BETO linear blackboard direct / indirect suspended system

    BETO linear blackboard direct / indirect suspended system

    Status
    Article number(s)
    Type
    Dimming
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 75 W, 116 lm/W, length 1,700 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 76 W, 123 lm/W, length 1,700 mm
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 120 W, 126 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 122 W, 134 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 142 W, 124 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 144 W, 131 lm/W, length 3,400 mm
    DALI-2
    BETO LINEAR BLACKBOARD DIRECT ceiling / suspended system

    BETO linear blackboard direct ceiling / suspended system

    BETO linear blackboard direct ceiling / suspended system

    Status
    Article number(s)
    Type
    Dimming
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 47 W, 107 lm/W, length 1,700 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 47 W, 109 lm/W, length 1,700 mm
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 70 W, 108 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 71 W, 108 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 93 W, 108 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 90 W, 113 lm/W, length 3,400 mm
    DALI-2
    BETO LINEAR BLACKBOARD DIRECT ceiling / suspended system

    BETO linear blackboard direct ceiling / suspended system

    BETO linear blackboard direct ceiling / suspended system

    Status
    Article number(s)
    Type
    Dimming
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 47 W, 107 lm/W, length 1,700 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 47 W, 109 lm/W, length 1,700 mm
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 70 W, 108 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 71 W, 108 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 93 W, 108 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 90 W, 113 lm/W, length 3,400 mm
    DALI-2
    BETO LINEAR DIRECT / INDIRECT POWER suspended system;BETO LINEAR DIRECT / INDIRECT TW POWER suspended system

    BETO linear direct / indirect power suspended system

    BETO linear direct / indirect power suspended system

    Status
    Article number(s)
    Type
    Dimming
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 51 W, 135 lm/W, length 1,700 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 51 W, 154 lm/W, length 1,700 mm
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 95 W, 144 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 95 W, 144 lm/W, length 3,400 mm
    DALI-2 sensor
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 95 W, 164 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 95 W, 164 lm/W, length 3,400 mm
    DALI-2 sensor
    BETO LINEAR DIRECT / INDIRECT POWER suspended system;BETO LINEAR DIRECT / INDIRECT TW POWER suspended system

    BETO linear direct / indirect power suspended system

    BETO linear direct / indirect power suspended system

    Status
    Article number(s)
    Type
    Dimming
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 51 W, 135 lm/W, length 1,700 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 51 W, 154 lm/W, length 1,700 mm
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 95 W, 144 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 95 W, 144 lm/W, length 3,400 mm
    DALI-2 sensor
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 95 W, 164 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 95 W, 164 lm/W, length 3,400 mm
    DALI-2 sensor
    BETO LINEAR DIRECT / INDIRECT POWER suspended system;BETO LINEAR DIRECT / INDIRECT TW POWER suspended system

    BETO linear direct / indirect power suspended system

    BETO linear direct / indirect power suspended system

    Status
    Article number(s)
    Type
    Dimming
    black, Reflector dark chrome, 3000 K, CRI ≥ CRI ≥ 80, system 51 W, 117 lm/W, length 1,700 mm
    DALI-2
    black, Reflector dark chrome, 4000 K, CRI ≥ CRI ≥ 80, system 51 W, 133 lm/W, length 1,700 mm
    DALI-2
    black, Reflector dark chrome, 3000 K, CRI ≥ CRI ≥ 80, system 95 W, 125 lm/W, length 3,400 mm
    DALI-2
    black, Reflector dark chrome, 3000 K, CRI ≥ CRI ≥ 80, system 95 W, 125 lm/W, length 3,400 mm
    DALI-2 sensor
    black, Reflector dark chrome, 4000 K, CRI ≥ CRI ≥ 80, system 95 W, 142 lm/W, length 3,400 mm
    DALI-2
    black, Reflector dark chrome, 4000 K, CRI ≥ CRI ≥ 80, system 95 W, 142 lm/W, length 3,400 mm
    DALI-2 sensor
    BETO LINEAR DIRECT / INDIRECT POWER suspended system;BETO LINEAR DIRECT / INDIRECT TW POWER suspended system

    BETO linear direct / indirect power suspended system

    BETO linear direct / indirect power suspended system

    Status
    Article number(s)
    Type
    Dimming
    white, Reflector dark chrome, 3000 K, CRI ≥ CRI ≥ 80, system 51 W, 117 lm/W, length 1,700 mm
    DALI-2
    white, Reflector dark chrome, 4000 K, CRI ≥ CRI ≥ 80, system 51 W, 133 lm/W, length 1,700 mm
    DALI-2
    white, Reflector dark chrome, 3000 K, CRI ≥ CRI ≥ 80, system 95 W, 125 lm/W, length 3,400 mm
    DALI-2
    white, Reflector dark chrome, 3000 K, CRI ≥ CRI ≥ 80, system 95 W, 125 lm/W, length 3,400 mm
    DALI-2 sensor
    white, Reflector dark chrome, 4000 K, CRI ≥ CRI ≥ 80, system 95 W, 142 lm/W, length 3,400 mm
    DALI-2
    white, Reflector dark chrome, 4000 K, CRI ≥ CRI ≥ 80, system 95 W, 142 lm/W, length 3,400 mm
    DALI-2 sensor
    BETO ceiling / suspended system;BETO LINEAR DIRECT ceiling / suspended system

    BETO linear direct ceiling / suspended system

    BETO linear direct ceiling / suspended system

    Status
    Article number(s)
    Type
    Dimming
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 22.6 W, 140 lm/W, length 1,700 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 22.6 W, 160 lm/W, length 1,700 mm
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 45 W, 141 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 45 W, 141 lm/W, length 3,400 mm
    DALI-2 sensor
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 45 W, 161 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 45 W, 161 lm/W, length 3,400 mm
    DALI-2 sensor
    BETO ceiling / suspended system;BETO LINEAR DIRECT ceiling / suspended system

    BETO linear direct ceiling / suspended system

    BETO linear direct ceiling / suspended system

    Status
    Article number(s)
    Type
    Dimming
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 22.6 W, 140 lm/W, length 1,700 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 22.6 W, 160 lm/W, length 1,700 mm
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 45 W, 141 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 45 W, 141 lm/W, length 3,400 mm
    DALI-2 sensor
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 45 W, 161 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 45 W, 161 lm/W, length 3,400 mm
    DALI-2 sensor
    BETO LINEAR DIRECT ceiling / suspended system

    BETO linear direct ceiling / suspended system

    BETO linear direct ceiling / suspended system

    Status
    Article number(s)
    Type
    Dimming
    black, Reflector dark chrome, 3000 K, CRI ≥ CRI ≥ 80, system 22.6 W, 100 lm/W, length 1,700 mm
    DALI-2
    black, Reflector dark chrome, 4000 K, CRI ≥ CRI ≥ 80, system 22.6 W, 114 lm/W, length 1,700 mm
    DALI-2
    black, Reflector dark chrome, 3000 K, CRI ≥ CRI ≥ 80, system 45 W, 101 lm/W, length 3,400 mm
    DALI-2
    black, Reflector dark chrome, 3000 K, CRI ≥ CRI ≥ 80, system 45 W, 101 lm/W, length 3,400 mm
    DALI-2 sensor
    black, Reflector dark chrome, 4000 K, CRI ≥ CRI ≥ 80, system 45 W, 115 lm/W, length 3,400 mm
    DALI-2
    black, Reflector dark chrome, 4000 K, CRI ≥ CRI ≥ 80, system 45 W, 115 lm/W, length 3,400 mm
    DALI-2 sensor
    BETO LINEAR DIRECT ceiling / suspended system

    BETO linear direct ceiling / suspended system

    BETO linear direct ceiling / suspended system

    Status
    Article number(s)
    Type
    Dimming
    white, Reflector dark chrome, 3000 K, CRI ≥ CRI ≥ 80, system 22.6 W, 100 lm/W, length 1,700 mm
    DALI-2
    white, Reflector dark chrome, 4000 K, CRI ≥ CRI ≥ 80, system 22.6 W, 114 lm/W, length 1,700 mm
    DALI-2
    white, Reflector dark chrome, 3000 K, CRI ≥ CRI ≥ 80, system 45 W, 101 lm/W, length 3,400 mm
    DALI-2
    white, Reflector dark chrome, 3000 K, CRI ≥ CRI ≥ 80, system 45 W, 101 lm/W, length 3,400 mm
    DALI-2 sensor
    white, Reflector dark chrome, 4000 K, CRI ≥ CRI ≥ 80, system 45 W, 115 lm/W, length 3,400 mm
    DALI-2
    white, Reflector dark chrome, 4000 K, CRI ≥ CRI ≥ 80, system 45 W, 115 lm/W, length 3,400 mm
    DALI-2 sensor

    Accessories

    050-2041217

    CEILING FASTENER

    MOVE IT 45 | BETO system | SETA system
    traffic white
    050-2041218

    CEILING FASTENER

    MOVE IT 45 | BETO system | SETA system
    jet black
    074-6090017

    END CAPS

    BETO ceiling/suspended system
    pure white
    074-6090018

    END CAPS

    BETO ceiling/suspended system
    jet black
    074-6091110

    LINEAR CONNECTOR

    BETO ceiling/suspended system
    074-6091120

    LINEAR CONNECTOR

    BETO system / SETA system
    074-6091217

    CORNER CONNECTOR

    90° | incl. through wire 5 × 1.5 mm²
    TASK S system suspended | BETO system
    pure white
    074-6091218

    CORNER CONNECTOR

    90° | incl. through wire 5 × 1.5 mm²
    TASK S system suspended | BETO system
    jet black

    Related products

    BETO circle

    suspended

    BETO

    suspended

    BETO

    free standing

    BETO

    free standing double

    MOVE IT 10

    trimless system

    MOVE IT 10

    surface system

    MOVE IT 10

    square / round suspended system

    MOVE IT 10

    square / round pole system
    New

    MOVE IT 10

    square direct suspended system

    SPOT LINE

    MOVE IT 10
