BO 55 intrack stucchi;BO 55 intrack

BO 55

intrack

180-7311438F

Quickinfo

2700 K
CRI ≥ 90 / 2 SDCM
73 lm/W
L80 / 50000 h
DALI-2
IP20

Colour

General

  • Ceiling
  • Track
  • tilt max 90°
  • rotation 360°
  • black
  • RAL9005 1
  • IP20
  • 1800 lm

LED

  • 2700 K
  • CRI ≥ 90
  • L80 / 50000 h
  • initial MacAdam ≤ 2 SDCM
  • Rg: 99
  • Rf: 91
  • R{1-15}: 89
  • MR 0.53
  • MDER 0.48

Optical

  • flood
  • beam angle 37°
  • PstLM ≤ 1.0 2
  • SVM ≤ 0.4 2

Electrical

  • DALI-2
  • system 24.7 W
  • PC2 220-240V
  • system 73 lm/W3
  • 1 DALI Addr.

Physical

  • diameter 55 mm
  • height 140 mm
  • 0.5 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B13
B16
B20
C13
C16
C20

Number of Fixtures

81
100
125
135
170
208
1 RAL code 2 Value of containing product at full load (undimmed) 3 incl. optical losses and the efficiency of the operating device (converter)

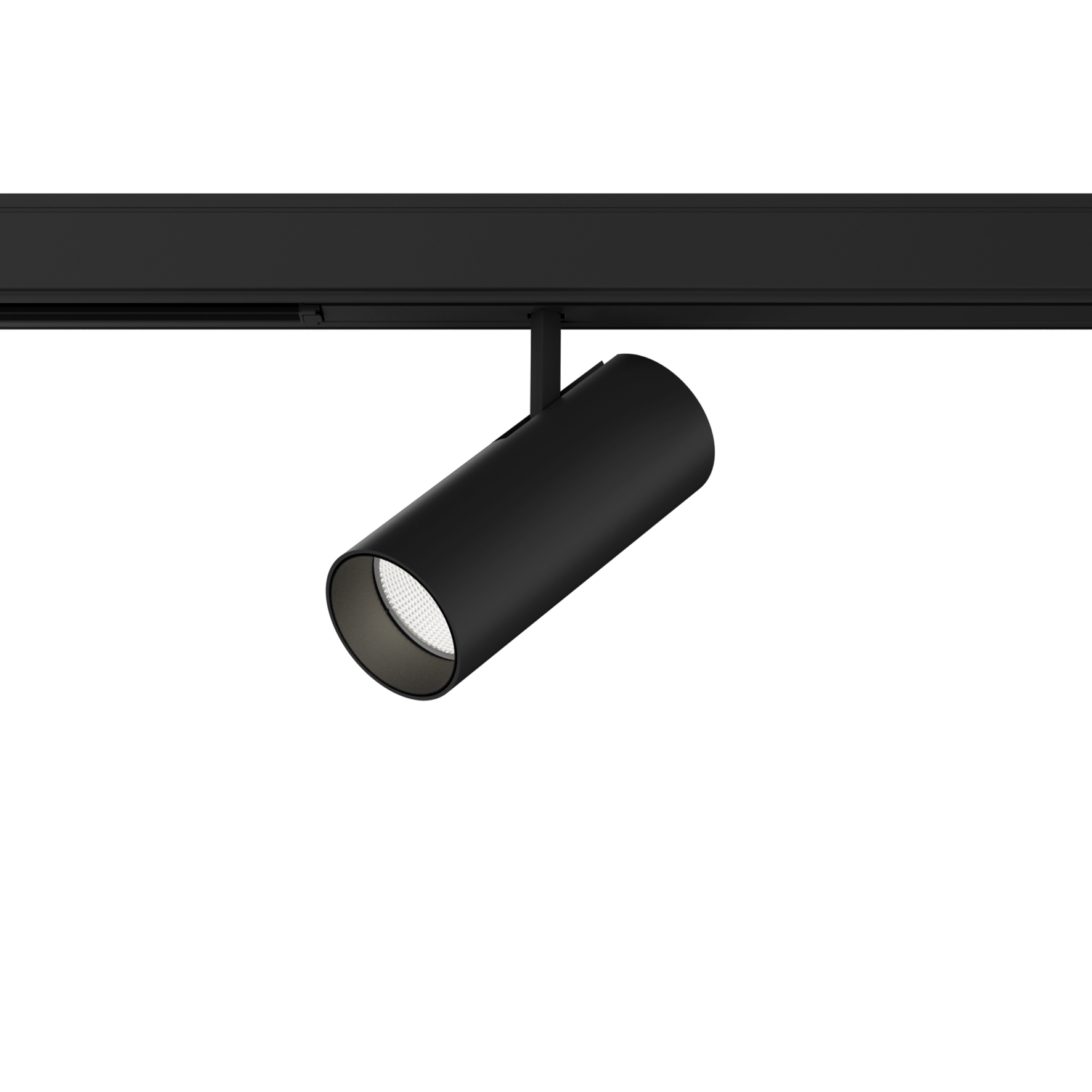

Cylindrical tracked spotlight in die-cast aluminium with 3PH universal adapter; classic style in elegant design for discerning requirements; surface black powder coated; 360° rotatable and 90° tiltable; converter integrated in the power track adapter; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; high quality, aluminium, vapour deposition coated reflector with faceted lens design; precise radiation characteristic with 37° beam; good glare control through recessed light point level; optical attachment available as accessory; accessories are listed separately; degree of protection IP20; PC2 220-240V; adapter for toolless insertion or movement on a variety of 3-phase power tracks; adapter flush with the power track; incl. DALI-2 converter; flicker-free visual comfort through analogue current control (minimum value 1%); light source replaceable by an authorized professional; control gear replaceable by an authorized professional;

Product data & specification documents

Datasheets

Planing files & lighting data

Download all
lightDistribution
lightDistribution
mainDrawing
