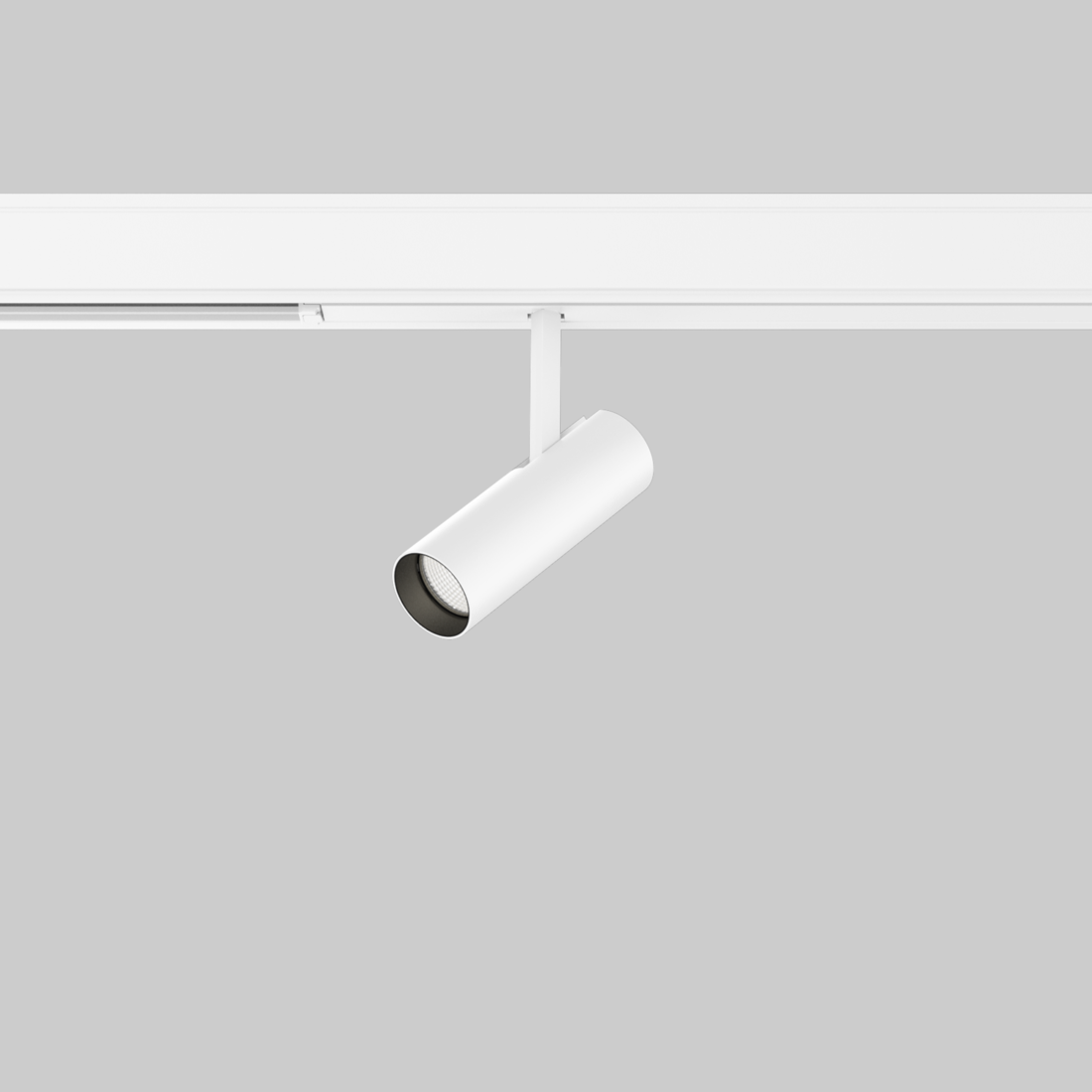

BO 32 / 45 / 55

intrack

Quickinfo

2700 K, 3000 K, 4000 K
CRI ≥ 90 / 2, 3 SDCM
up to 88 lm/W
L80 / 50000 h, L85 / 50000 h
DALI-2, non DIM
IP20

Colour

white

black

special colours

Products and codes

Discover family

Simple drawing

Light distribution

Downloads & links

Product data & specification documents

CataloguePage(s)
DWG - 2D

Special Colour Brochure

Download all

Aggregated downloads

IES
LDT
ROLF
ULD

3DS
DWG - 3D
Revit BIM data

Description

Track light made of die-cast aluminium; surface powder coated; spotlight head rotates 360° and tilts 90°; converter integrated in the power track adapter; with optional high-quality lens system with precise radiation characteristic; or high-quality, aluminium, vapour deposition coated reflector with faceted design; precise radiation characteristics with different beam angles; good glare reduction due to recessed light point plane; optical attachments as accessories; COB (Chip on Board) technology or high power LEDs for maximum efficiency; no multiple shadows; energy-efficient LEDs with very good colour rendering; adapter for toolless insertion or movement on a variety of 3-phase power tracks; adapter flush with the power track

glare control via honeycomb louver

350° rotatable, 90° tiltable

CRI ≥ 95 2 SDCM (optional)

Products and codes

Filter

Colour

white

black

special colours

BO 32 intrack DALI-2

Status

Article number(s)

Type

Dimming

black, 34° flood, 2700 K, system 11.6 W, 65 lm/W

DALI-2

black, 24° medium, 2700 K, system 11.6 W, 68 lm/W

DALI-2

black, 18° spot, 2700 K, system 11.6 W, 65 lm/W

DALI-2

black, 34° flood, 3000 K, system 11.7 W, 68 lm/W

DALI-2

black, 24° medium, 3000 K, system 11.7 W, 71 lm/W

DALI-2

black, 18° spot, 3000 K, system 11.7 W, 68 lm/W

DALI-2

black, 34° flood, 4000 K, system 11.7 W, 72 lm/W

DALI-2

black, 24° medium, 4000 K, system 11.7 W, 76 lm/W

DALI-2

black, 18° spot, 4000 K, system 11.7 W, 72 lm/W

DALI-2

BO 32 intrack DALI-2

Status

Article number(s)

Type

Dimming

special colours, 34° flood, 2700 K, system 11.6 W, 65 lm/W

DALI-2

special colours, 24° medium, 2700 K, system 11.6 W, 68 lm/W

DALI-2

special colours, 18° spot, 2700 K, system 11.6 W, 65 lm/W

DALI-2

special colours, 34° flood, 3000 K, system 11.7 W, 68 lm/W

DALI-2

special colours, 24° medium, 3000 K, system 11.7 W, 71 lm/W

DALI-2

special colours, 18° spot, 3000 K, system 11.7 W, 68 lm/W

DALI-2

special colours, 34° flood, 4000 K, system 11.7 W, 72 lm/W

DALI-2

special colours, 24° medium, 4000 K, system 11.7 W, 76 lm/W

DALI-2

special colours, 18° spot, 4000 K, system 11.7 W, 72 lm/W

DALI-2

BO 32 intrack DALI-2

Status

Article number(s)

Type

Dimming

white, 34° flood, 2700 K, system 11.6 W, 65 lm/W

DALI-2

white, 24° medium, 2700 K, system 11.6 W, 68 lm/W

DALI-2

white, 18° spot, 2700 K, system 11.6 W, 65 lm/W

DALI-2

white, 34° flood, 3000 K, system 11.7 W, 68 lm/W

DALI-2

white, 24° medium, 3000 K, system 11.7 W, 71 lm/W

DALI-2

white, 18° spot, 3000 K, system 11.7 W, 68 lm/W

DALI-2

white, 34° flood, 4000 K, system 11.7 W, 72 lm/W

DALI-2

white, 24° medium, 4000 K, system 11.7 W, 76 lm/W

DALI-2

white, 18° spot, 4000 K, system 11.7 W, 72 lm/W

DALI-2

BO 32 intrack non DIM

Status

Article number(s)

Type

Dimming

black, 34° flood, 2700 K, system 11.6 W, 65 lm/W

non DIM

black, 24° medium, 2700 K, system 11.6 W, 68 lm/W

non DIM

black, 18° spot, 2700 K, system 11.6 W, 65 lm/W

non DIM

black, 34° flood, 3000 K, system 11.7 W, 68 lm/W

non DIM

black, 24° medium, 3000 K, system 11.7 W, 71 lm/W

non DIM

black, 18° spot, 3000 K, system 11.7 W, 68 lm/W

non DIM

black, 34° flood, 4000 K, system 11.7 W, 72 lm/W

non DIM

black, 24° medium, 4000 K, system 11.7 W, 76 lm/W

non DIM

black, 18° spot, 4000 K, system 11.7 W, 72 lm/W

non DIM

BO 32 intrack non DIM

Status

Article number(s)

Type

Dimming

special colours, 34° flood, 2700 K, system 11.6 W, 65 lm/W

non DIM

special colours, 24° medium, 2700 K, system 11.6 W, 68 lm/W

non DIM

special colours, 18° spot, 2700 K, system 11.6 W, 65 lm/W

non DIM

special colours, 34° flood, 3000 K, system 11.7 W, 68 lm/W

non DIM

special colours, 24° medium, 3000 K, system 11.7 W, 71 lm/W

non DIM

special colours, 18° spot, 3000 K, system 11.7 W, 68 lm/W

non DIM

special colours, 34° flood, 4000 K, system 11.7 W, 72 lm/W

non DIM

special colours, 24° medium, 4000 K, system 11.7 W, 76 lm/W

non DIM

special colours, 18° spot, 4000 K, system 11.7 W, 72 lm/W

non DIM

BO 32 intrack non DIM

Status

Article number(s)

Type

Dimming

white, 34° flood, 2700 K, system 11.6 W, 65 lm/W

non DIM

white, 24° medium, 2700 K, system 11.6 W, 68 lm/W

non DIM

white, 18° spot, 2700 K, system 11.6 W, 65 lm/W

non DIM

white, 34° flood, 3000 K, system 11.7 W, 68 lm/W

non DIM

white, 24° medium, 3000 K, system 11.7 W, 71 lm/W

non DIM

white, 18° spot, 3000 K, system 11.7 W, 68 lm/W

non DIM

white, 34° flood, 4000 K, system 11.7 W, 72 lm/W

non DIM

white, 24° medium, 4000 K, system 11.7 W, 76 lm/W

non DIM

white, 18° spot, 4000 K, system 11.7 W, 72 lm/W

non DIM

BO 45 intrack DALI-2

Status

Article number(s)

Type

Dimming

black, 36° flood, 2700 K, system 15.9 W, 78 lm/W

DALI-2

black, 24° medium, 2700 K, system 15.9 W, 77 lm/W

DALI-2

black, 12° spot, 2700 K, system 15 W, 70 lm/W

DALI-2

black, 36° flood, 3000 K, system 15.9 W, 83 lm/W

DALI-2

black, 24° medium, 3000 K, system 15.9 W, 81 lm/W

DALI-2

black, 12° spot, 3000 K, system 15 W, 74 lm/W

DALI-2

black, 36° flood, 4000 K, system 15.9 W, 88 lm/W

DALI-2

black, 24° medium, 4000 K, system 15.9 W, 86 lm/W

DALI-2

black, 12° spot, 4000 K, system 15.1 W, 78 lm/W

DALI-2

BO 45 intrack DALI-2

Status

Article number(s)

Type

Dimming

special colours, 36° flood, 2700 K, system 15.9 W, 78 lm/W

DALI-2

special colours, 24° medium, 2700 K, system 15.9 W, 77 lm/W

DALI-2

special colours, 12° spot, 2700 K, system 15 W, 70 lm/W

DALI-2

special colours, 36° flood, 3000 K, system 15.9 W, 83 lm/W

DALI-2

special colours, 24° medium, 3000 K, system 15.9 W, 81 lm/W

DALI-2

special colours, 12° spot, 3000 K, system 15 W, 74 lm/W

DALI-2

special colours, 36° flood, 4000 K, system 15.9 W, 88 lm/W

DALI-2

special colours, 24° medium, 4000 K, system 15.9 W, 86 lm/W

DALI-2

special colours, 12° spot, 4000 K, system 15.1 W, 78 lm/W

DALI-2

BO 45 intrack DALI-2

Status

Article number(s)

Type

Dimming

white, 36° flood, 2700 K, system 15.9 W, 78 lm/W

DALI-2

white, 24° medium, 2700 K, system 15.9 W, 77 lm/W

DALI-2

white, 12° spot, 2700 K, system 15 W, 70 lm/W

DALI-2

white, 36° flood, 3000 K, system 15.9 W, 83 lm/W

DALI-2

white, 24° medium, 3000 K, system 15.9 W, 81 lm/W

DALI-2

white, 12° spot, 3000 K, system 15 W, 74 lm/W

DALI-2

white, 36° flood, 4000 K, system 15.9 W, 88 lm/W

DALI-2

white, 24° medium, 4000 K, system 15.9 W, 86 lm/W

DALI-2

white, 12° spot, 4000 K, system 15.1 W, 78 lm/W

DALI-2

BO 45 intrack non DIM

Status

Article number(s)

Type

Dimming

black, 36° flood, 2700 K, system 15.9 W, 78 lm/W

non DIM

black, 24° medium, 2700 K, system 15.9 W, 77 lm/W

non DIM

black, 12° spot, 2700 K, system 15 W, 70 lm/W

non DIM

black, 36° flood, 3000 K, system 15.9 W, 83 lm/W

non DIM

black, 24° medium, 3000 K, system 15.9 W, 81 lm/W

non DIM

black, 12° spot, 3000 K, system 15 W, 74 lm/W

non DIM

black, 36° flood, 4000 K, system 15.9 W, 88 lm/W

non DIM

black, 24° medium, 4000 K, system 15.9 W, 86 lm/W

non DIM

black, 12° spot, 4000 K, system 15.1 W, 78 lm/W

non DIM

BO 45 intrack non DIM

Status

Article number(s)

Type

Dimming

special colours, 36° flood, 2700 K, system 15.9 W, 78 lm/W

non DIM

special colours, 24° medium, 2700 K, system 15.9 W, 77 lm/W

non DIM

special colours, 12° spot, 2700 K, system 15 W, 70 lm/W

non DIM

special colours, 36° flood, 3000 K, system 15.9 W, 83 lm/W

non DIM

special colours, 24° medium, 3000 K, system 15.9 W, 81 lm/W

non DIM

special colours, 12° spot, 3000 K, system 15 W, 74 lm/W

non DIM

special colours, 36° flood, 4000 K, system 15.9 W, 88 lm/W

non DIM

special colours, 24° medium, 4000 K, system 15.9 W, 86 lm/W

non DIM

special colours, 12° spot, 4000 K, system 15.1 W, 78 lm/W

non DIM

BO 45 intrack non DIM

Status

Article number(s)

Type

Dimming

white, 36° flood, 2700 K, system 15.9 W, 78 lm/W

non DIM

white, 24° medium, 2700 K, system 15.9 W, 77 lm/W

non DIM

white, 12° spot, 2700 K, system 15 W, 70 lm/W

non DIM

white, 36° flood, 3000 K, system 15.9 W, 83 lm/W

non DIM

white, 24° medium, 3000 K, system 15.9 W, 81 lm/W

non DIM

white, 12° spot, 3000 K, system 15 W, 74 lm/W

non DIM

white, 36° flood, 4000 K, system 15.9 W, 88 lm/W

non DIM

white, 24° medium, 4000 K, system 15.9 W, 86 lm/W

non DIM

white, 12° spot, 4000 K, system 15.1 W, 78 lm/W

non DIM

BO 45 intrack

Status

Article number(s)

Type

Dimming

black, 8° super spot, 2700 K, system 9.3 W, 37 lm/W

non DIM

black, 8° super spot, 2700 K, system 9.3 W, 37 lm/W

DALI-2

black, 8° super spot, 3000 K, system 9.3 W, 37 lm/W

non DIM

black, 8° super spot, 3000 K, system 9.3 W, 37 lm/W

DALI-2

black, 8° super spot, 4000 K, system 9.3 W, 40 lm/W

non DIM

black, 8° super spot, 4000 K, system 9.3 W, 40 lm/W

DALI-2

BO 45 intrack

Status

Article number(s)

Type

Dimming

special colours, 8° super spot, 2700 K, system 9.3 W, 37 lm/W

non DIM

special colours, 8° super spot, 2700 K, system 9.3 W, 37 lm/W

DALI-2

special colours, 8° super spot, 3000 K, system 9.3 W, 37 lm/W

non DIM

special colours, 8° super spot, 3000 K, system 9.3 W, 37 lm/W

DALI-2

special colours, 8° super spot, 4000 K, system 9.3 W, 40 lm/W

non DIM

special colours, 8° super spot, 4000 K, system 9.3 W, 40 lm/W

DALI-2

BO 45 intrack

Status

Article number(s)

Type

Dimming

white, 8° super spot, 2700 K, system 9.3 W, 37 lm/W

non DIM

white, 8° super spot, 2700 K, system 9.3 W, 37 lm/W

DALI-2

white, 8° super spot, 3000 K, system 9.3 W, 37 lm/W

non DIM

white, 8° super spot, 3000 K, system 9.3 W, 37 lm/W

DALI-2

white, 8° super spot, 4000 K, system 9.3 W, 40 lm/W

non DIM

white, 8° super spot, 4000 K, system 9.3 W, 40 lm/W

DALI-2

BO 55 intrack DALI-2

Status

Article number(s)

Type

Dimming

black, 37° flood, 2700 K, system 24.7 W, 73 lm/W

DALI-2

black, 31° medium, 2700 K, system 24.7 W, 72 lm/W

DALI-2

black, 17° spot, 2700 K, system 24.7 W, 72 lm/W

DALI-2

black, 37° flood, 3000 K, system 24.7 W, 77 lm/W

DALI-2

black, 31° medium, 3000 K, system 24.7 W, 77 lm/W

DALI-2

black, 17° spot, 3000 K, system 24.7 W, 76 lm/W

DALI-2

black, 37° flood, 4000 K, system 24.7 W, 82 lm/W

DALI-2

black, 31° medium, 4000 K, system 24.7 W, 81 lm/W

DALI-2

black, 17° spot, 4000 K, system 24.7 W, 81 lm/W

DALI-2

BO 55 intrack DALI-2

Status

Article number(s)

Type

Dimming

special colours, 37° flood, 2700 K, system 24.7 W, 73 lm/W

DALI-2

special colours, 31° medium, 2700 K, system 24.7 W, 72 lm/W

DALI-2

special colours, 17° spot, 2700 K, system 24.7 W, 72 lm/W

DALI-2

special colours, 37° flood, 3000 K, system 24.7 W, 77 lm/W

DALI-2

special colours, 31° medium, 3000 K, system 24.7 W, 77 lm/W

DALI-2

special colours, 17° spot, 3000 K, system 24.7 W, 76 lm/W

DALI-2

special colours, 37° flood, 4000 K, system 24.7 W, 82 lm/W

DALI-2

special colours, 31° medium, 4000 K, system 24.7 W, 81 lm/W

DALI-2

special colours, 17° spot, 4000 K, system 24.7 W, 81 lm/W

DALI-2

BO 55 intrack DALI-2

Status

Article number(s)

Type

Dimming

white, 37° flood, 2700 K, system 24.7 W, 73 lm/W

DALI-2

white, 31° medium, 2700 K, system 24.7 W, 72 lm/W

DALI-2

white, 17° spot, 2700 K, system 24.7 W, 72 lm/W

DALI-2

white, 37° flood, 3000 K, system 24.7 W, 77 lm/W

DALI-2

white, 31° medium, 3000 K, system 24.7 W, 77 lm/W

DALI-2

white, 17° spot, 3000 K, system 24.7 W, 76 lm/W

DALI-2

white, 37° flood, 4000 K, system 24.7 W, 82 lm/W

DALI-2

white, 31° medium, 4000 K, system 24.7 W, 81 lm/W

DALI-2

white, 17° spot, 4000 K, system 24.7 W, 81 lm/W

DALI-2

BO 55 intrack non DIM

Status

Article number(s)

Type

Dimming

black, 37° flood, 2700 K, system 24.7 W, 73 lm/W

non DIM

black, 31° medium, 2700 K, system 24.7 W, 72 lm/W

non DIM

black, 17° spot, 2700 K, system 24.7 W, 72 lm/W

non DIM

black, 37° flood, 3000 K, system 24.7 W, 77 lm/W

non DIM

black, 31° medium, 3000 K, system 24.7 W, 77 lm/W

non DIM

black, 17° spot, 3000 K, system 24.7 W, 76 lm/W

non DIM

black, 37° flood, 4000 K, system 24.7 W, 82 lm/W

non DIM

black, 31° medium, 4000 K, system 24.7 W, 81 lm/W

non DIM

black, 17° spot, 4000 K, system 24.7 W, 81 lm/W

non DIM

BO 55 intrack non DIM

Status

Article number(s)

Type

Dimming

special colours, 37° flood, 2700 K, system 24.7 W, 73 lm/W

non DIM

special colours, 31° medium, 2700 K, system 24.7 W, 72 lm/W

non DIM

special colours, 17° spot, 2700 K, system 24.7 W, 72 lm/W

non DIM

special colours, 37° flood, 3000 K, system 24.7 W, 77 lm/W

non DIM

special colours, 31° medium, 3000 K, system 24.7 W, 77 lm/W

non DIM

special colours, 17° spot, 3000 K, system 24.7 W, 76 lm/W

non DIM

special colours, 37° flood, 4000 K, system 24.7 W, 82 lm/W

non DIM

special colours, 31° medium, 4000 K, system 24.7 W, 81 lm/W

non DIM

special colours, 17° spot, 4000 K, system 24.7 W, 81 lm/W

non DIM

BO 55 intrack non DIM

Status

Article number(s)

Type

Dimming

white, 37° flood, 2700 K, system 24.7 W, 73 lm/W

non DIM

white, 31° medium, 2700 K, system 24.7 W, 72 lm/W

non DIM

white, 17° spot, 2700 K, system 24.7 W, 72 lm/W

non DIM

white, 37° flood, 3000 K, system 24.7 W, 77 lm/W

non DIM

white, 31° medium, 3000 K, system 24.7 W, 77 lm/W

non DIM

white, 17° spot, 3000 K, system 24.7 W, 76 lm/W

non DIM

white, 37° flood, 4000 K, system 24.7 W, 82 lm/W

non DIM

white, 31° medium, 4000 K, system 24.7 W, 81 lm/W

non DIM

white, 17° spot, 4000 K, system 24.7 W, 81 lm/W

non DIM

BO 32 / 45 / 55

intrack

Quickinfo

Colour

Simple drawing

Light distribution

Product data & specification documents

Description

Products and codes

Colour

BO 32 intrack DALI-2

BO 32 intrack DALI-2

BO 32 intrack DALI-2

BO 32 intrack DALI-2

BO 32 intrack DALI-2

BO 32 intrack DALI-2

BO 32 intrack non DIM

BO 32 intrack non DIM

BO 32 intrack non DIM

BO 32 intrack non DIM

BO 32 intrack non DIM

BO 32 intrack non DIM

BO 45 intrack DALI-2

BO 45 intrack DALI-2

BO 45 intrack DALI-2

BO 45 intrack DALI-2

BO 45 intrack DALI-2

BO 45 intrack DALI-2

BO 45 intrack non DIM

BO 45 intrack non DIM

BO 45 intrack non DIM

BO 45 intrack non DIM

BO 45 intrack non DIM

BO 45 intrack non DIM

BO 45 intrack

BO 45 intrack

BO 45 intrack

BO 45 intrack

BO 45 intrack

BO 45 intrack

BO 55 intrack DALI-2

BO 55 intrack DALI-2

BO 55 intrack DALI-2

BO 55 intrack DALI-2

BO 55 intrack DALI-2

BO 55 intrack DALI-2

BO 55 intrack non DIM

BO 55 intrack non DIM

BO 55 intrack non DIM

BO 55 intrack non DIM

BO 55 intrack non DIM

BO 55 intrack non DIM

Accessories

Related products
