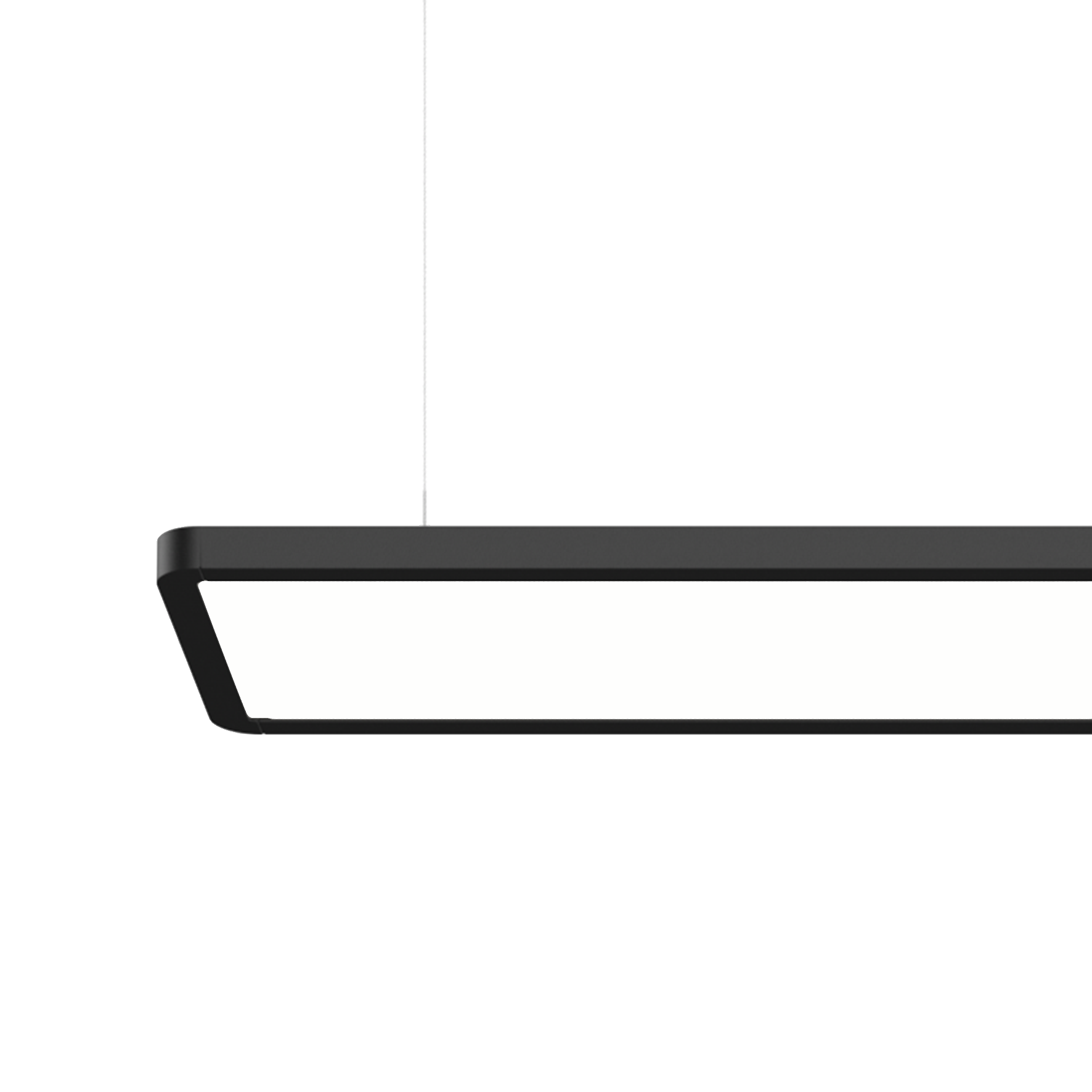

TASK S LINEAR direct suspended system;TASK S LINEAR direct / indirect power suspended system;TASK S LINEAR direct / indirect soft suspended system;TASK S LINEAR sensor direct suspended system;TASK S LINEAR sensor direct / indirect power suspended system;TASK S LINEAR sensor direct / indirect soft suspended system;TASK S LINEAR sensor direct / indirect TW power suspended system;TASK S LINEAR direct / indirect TW power suspended system

TASK S linear direct / indirect power

suspended system

059-5765138K

Quickinfo

4000 K
CRI ≥ 90 / 3 SDCM
UGR < 19
4,140 lm/↑ 2,230 lm
120 lm/W
L90 / 50000 h
DALI-2
Microprismatic
IP20 / PC1 220-240V

Colour

General

  • Ceiling
  • Suspended
  • black
  • RAL9005 1
  • IP20
  • indirect 2230 lm
  • direct 4140 lm
  • total 6370 lm

LED

  • 4000 K
  • CRI ≥ 90
  • L90 / 50000 h
  • photobio. safety RG 0 - no Risk
  • initial MacAdam ≤ 3 SDCM
  • Rg: 96
  • Rf: 90
  • R{1-15}: 87
  • MR 0.75
  • MDER 0.68

Optical

  • Microprismatic
  • microprismatic
  • UGR < 19
  • PstLM ≤ 1.0 2
  • SVM ≤ 0.4 2

Electrical

  • DALI-2
  • system 53 W
  • PC1 220-240V
  • system 120 lm/W3
  • 1 DALI Addr.

Physical

  • length 1457 mm
  • width 180 mm
  • height 34 mm
  • 3.9 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B13
B16
B20
C10
C13
C16
C20

Number of Fixtures

12
16
20
25
20
27
34
41
1 RAL code 2 Value of containing product at full load (undimmed) 3 incl. optical losses and the efficiency of the operating device (converter)

Luminaire housing made of aluminium with rounded edges; extremely flat (only 15mm) and slim (only 180mm) design; modern shape in an elegant design for high demands; for continuous lighting systems; surface black powder coated; with integrated toolless suspension height adjustment on the luminaire; convenient quick mounting system without tools; direct light distribution through LGP body (Light Guiding Prism); side coupled light directed downwards by laser engraving; light control via highly reflective reflector material; indirect light component with special PCBs for increased luminous flux and maximum ceiling illumination; microprismatic PMMA cover; completely homogeneous illumination; same light density for all surface lights with the same components; UGR ≤ 19; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; degree of protection IP20; PC1 220-240V; photobiological safety according to IEC 62471 risk group RG 0 - no Risk; internal wiring in light halogen free; incl. DALI-2 converter; sound absorbing accessories available; accessories are listed separately; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
