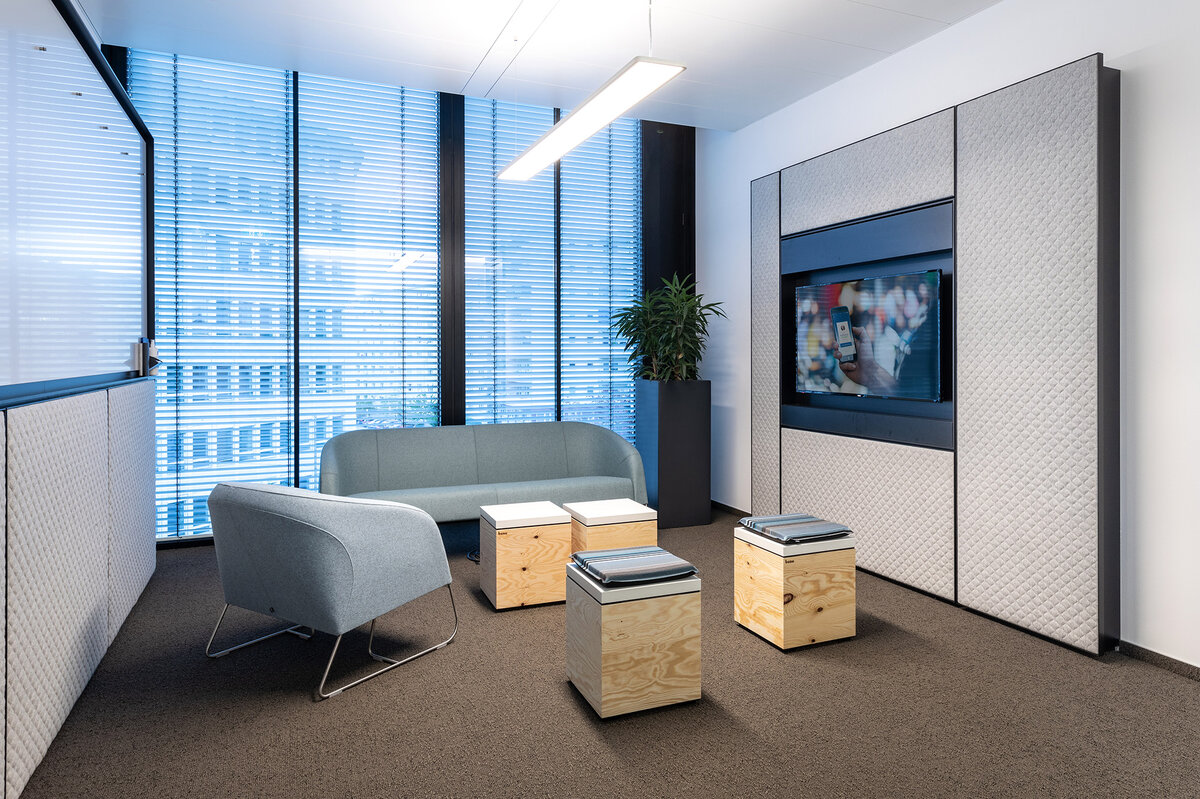

TASK S

suspended

Quickinfo

3000 K, 4000 K, tunable white 2700 - 6500 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM (initial MacAdam)
UGR ≤ 16, UGR ≤ 19
up to ↓ 5,010 lm / ↑ 3,270 lm
up to 133 lm/W
L85 / 50000 h, L90 / 50000 h
DALI-2, stand alone ESSENTIAL sensor
Microprismatic
IP20

Colour

pure white

jet black

special colours

Products and codes

Discover family

Simple drawing

Light distribution

Downloads & links

Product data & specification documents

Datasheet product line
DWG - 2D

Special Colour Brochure

Download all

Aggregated downloads

IES
LDT
ROLF
ULD

3DS
DWG - 3D
Revit BIM data

Description

Rectangular housing made of aluminium with rounded edges; ultra low-profile design (only 15 mm); surface powder coated; 1500 mm cable suspension, toolless height adjustment; incl. feeder cable; direct or direct/indirect light distribution by LGP body (Light Guiding Prism); side coupled light, directed downwards or up and down by laser engraving; light control via highly reflective reflector material; optional: indirect light component with special PCBs for increased luminous flux and maximum ceiling illumination; completely homogeneous illumination; energy-efficient LEDs with very good colour rendering; canopy with 2 cable openings and plug-in terminal for through wiring

DiiA^® standards 251, 252, 253

direct / indirect illumination

system solution

DIN EN 12464-1 UGR ≤ 19

tunable white 2700 – 6500 K

CRI ≥ 98 XPECTRUM (optional)

Products and codes

Filter

Colour

pure white

jet black

special colours

TASK S direct / indirect TW power suspended

Status

Article number(s)

Type

Dimming

pure white, 3000 K, 124 lm/W, length 1,180 mm

DALI-2

pure white, 4000 K, 129 lm/W, length 1,180 mm

DALI-2

pure white, 3000 K, 123 lm/W, length 1,448 mm

DALI-2

pure white, 4000 K, 129 lm/W, length 1,448 mm

DALI-2

pure white, 3000 K, 126 lm/W, length 1,748 mm

DALI-2

pure white, 4000 K, 131 lm/W, length 1,748 mm

DALI-2

pure white, 3000 K, 128 lm/W, length 2,315 mm

DALI-2

pure white, 4000 K, 133 lm/W, length 2,315 mm

DALI-2

TASK S direct / indirect TW power suspended

Status

Article number(s)

Type

Dimming

jet black, 3000 K, 124 lm/W, length 1,180 mm

DALI-2

jet black, 4000 K, 129 lm/W, length 1,180 mm

DALI-2

jet black, 3000 K, 123 lm/W, length 1,448 mm

DALI-2

jet black, 4000 K, 129 lm/W, length 1,448 mm

DALI-2

jet black, 3000 K, 126 lm/W, length 1,748 mm

DALI-2

jet black, 4000 K, 131 lm/W, length 1,748 mm

DALI-2

jet black, 3000 K, 128 lm/W, length 2,315 mm

DALI-2

jet black, 4000 K, 133 lm/W, length 2,315 mm

DALI-2

TASK S direct / indirect TW power suspended

Status

Article number(s)

Type

Dimming

special colours, 3000 K, 124 lm/W, length 1,180 mm

DALI-2

special colours, 4000 K, 129 lm/W, length 1,180 mm

DALI-2

special colours, 3000 K, 123 lm/W, length 1,448 mm

DALI-2

special colours, 4000 K, 129 lm/W, length 1,448 mm

DALI-2

special colours, 3000 K, 126 lm/W, length 1,748 mm

DALI-2

special colours, 4000 K, 131 lm/W, length 1,748 mm

DALI-2

special colours, 3000 K, 128 lm/W, length 2,315 mm

DALI-2

special colours, 4000 K, 133 lm/W, length 2,315 mm

DALI-2

TASK S direct / indirect power suspended

Status

Article number(s)

Type

Dimming

pure white, 3000 K, 119 lm/W, length 1,180 mm

DALI-2

pure white, 4000 K, 126 lm/W, length 1,180 mm

DALI-2

pure white, tunable white, 114 lm/W, length 1,180 mm

DALI-2

pure white, 3000 K, 119 lm/W, length 1,448 mm

DALI-2

pure white, 4000 K, 127 lm/W, length 1,448 mm

DALI-2

pure white, tunable white, 116 lm/W, length 1,448 mm

DALI-2

pure white, 3000 K, 120 lm/W, length 1,748 mm

DALI-2

pure white, 4000 K, 127 lm/W, length 1,748 mm

DALI-2

pure white, tunable white, 117 lm/W, length 1,748 mm

DALI-2

pure white, 3000 K, 120 lm/W, length 2,315 mm

DALI-2

pure white, 4000 K, 128 lm/W, length 2,315 mm

DALI-2

pure white, tunable white, 119 lm/W, length 2,315 mm

DALI-2

TASK S direct / indirect power suspended

Status

Article number(s)

Type

Dimming

jet black, 3000 K, 119 lm/W, length 1,180 mm

DALI-2

jet black, 4000 K, 126 lm/W, length 1,180 mm

DALI-2

jet black, tunable white, 114 lm/W, length 1,180 mm

DALI-2

jet black, 3000 K, 119 lm/W, length 1,448 mm

DALI-2

jet black, 4000 K, 127 lm/W, length 1,448 mm

DALI-2

jet black, tunable white, 116 lm/W, length 1,448 mm

DALI-2

jet black, 3000 K, 120 lm/W, length 1,748 mm

DALI-2

jet black, 4000 K, 127 lm/W, length 1,748 mm

DALI-2

jet black, tunable white, 117 lm/W, length 1,748 mm

DALI-2

jet black, 3000 K, 120 lm/W, length 2,315 mm

DALI-2

jet black, 4000 K, 128 lm/W, length 2,315 mm

DALI-2

jet black, tunable white, 119 lm/W, length 2,315 mm

DALI-2

TASK S direct / indirect power suspended

Status

Article number(s)

Type

Dimming

special colours, 3000 K, 119 lm/W, length 1,180 mm

DALI-2

special colours, 4000 K, 126 lm/W, length 1,180 mm

DALI-2

special colours, tunable white, 114 lm/W, length 1,180 mm

DALI-2

special colours, 3000 K, 119 lm/W, length 1,448 mm

DALI-2

special colours, 4000 K, 127 lm/W, length 1,448 mm

DALI-2

special colours, tunable white, 116 lm/W, length 1,448 mm

DALI-2

special colours, 3000 K, 120 lm/W, length 1,748 mm

DALI-2

special colours, 4000 K, 127 lm/W, length 1,748 mm

DALI-2

special colours, tunable white, 117 lm/W, length 1,748 mm

DALI-2

special colours, 3000 K, 120 lm/W, length 2,315 mm

DALI-2

special colours, 4000 K, 128 lm/W, length 2,315 mm

DALI-2

special colours, tunable white, 119 lm/W, length 2,315 mm

DALI-2

TASK S direct / indirect soft suspended

Status

Article number(s)

Type

Dimming

pure white, 3000 K, 114 lm/W, length 1,180 mm

DALI-2

pure white, 4000 K, 122 lm/W, length 1,180 mm

DALI-2

pure white, 3000 K, 114 lm/W, length 1,448 mm

DALI-2

pure white, 4000 K, 122 lm/W, length 1,448 mm

DALI-2

pure white, 3000 K, 115 lm/W, length 1,748 mm

DALI-2

pure white, 4000 K, 122 lm/W, length 1,748 mm

DALI-2

pure white, 3000 K, 117 lm/W, length 2,315 mm

DALI-2

pure white, 4000 K, 125 lm/W, length 2,315 mm

DALI-2

TASK S direct / indirect soft suspended

Status

Article number(s)

Type

Dimming

jet black, 3000 K, 114 lm/W, length 1,180 mm

DALI-2

jet black, 4000 K, 122 lm/W, length 1,180 mm

DALI-2

jet black, 3000 K, 114 lm/W, length 1,448 mm

DALI-2

jet black, 4000 K, 122 lm/W, length 1,448 mm

DALI-2

jet black, 3000 K, 115 lm/W, length 1,748 mm

DALI-2

jet black, 4000 K, 122 lm/W, length 1,748 mm

DALI-2

jet black, 3000 K, 117 lm/W, length 2,315 mm

DALI-2

jet black, 4000 K, 125 lm/W, length 2,315 mm

DALI-2

TASK S direct / indirect soft suspended

Status

Article number(s)

Type

Dimming

special colours, 3000 K, 114 lm/W, length 1,180 mm

DALI-2

special colours, 4000 K, 122 lm/W, length 1,180 mm

DALI-2

special colours, 3000 K, 114 lm/W, length 1,448 mm

DALI-2

special colours, 4000 K, 122 lm/W, length 1,448 mm

DALI-2

special colours, 3000 K, 115 lm/W, length 1,748 mm

DALI-2

special colours, 4000 K, 122 lm/W, length 1,748 mm

DALI-2

special colours, 3000 K, 117 lm/W, length 2,315 mm

DALI-2

special colours, 4000 K, 125 lm/W, length 2,315 mm

DALI-2

TASK S sensor direct / indirect TW power suspended

Status

Article number(s)

Type

Dimming

pure white, 3000 K, 123 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

pure white, 4000 K, 129 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

pure white, 3000 K, 126 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

pure white, 4000 K, 131 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

pure white, 3000 K, 128 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

pure white, 4000 K, 133 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

TASK S sensor direct / indirect TW power suspended

Status

Article number(s)

Type

Dimming

jet black, 3000 K, 123 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

jet black, 4000 K, 129 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

jet black, 3000 K, 126 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

jet black, 4000 K, 131 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

jet black, 3000 K, 128 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

jet black, 4000 K, 133 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

TASK S sensor direct / indirect TW power suspended

Status

Article number(s)

Type

Dimming

special colours, 3000 K, 123 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

special colours, 4000 K, 129 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

special colours, 3000 K, 126 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

special colours, 4000 K, 131 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

special colours, 3000 K, 128 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

special colours, 4000 K, 133 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

TASK S sensor direct / indirect power suspended

Status

Article number(s)

Type

Dimming

pure white, 3000 K, 119 lm/W, length 1,189 mm

stand alone ESSENTIAL sensor

pure white, 4000 K, 126 lm/W, length 1,189 mm

stand alone ESSENTIAL sensor

pure white, tunable white, 114 lm/W, length 1,189 mm

stand alone ESSENTIAL sensor

pure white, 3000 K, 119 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

pure white, 4000 K, 127 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

pure white, tunable white, 116 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

pure white, 3000 K, 120 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

pure white, 4000 K, 127 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

pure white, tunable white, 117 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

pure white, 3000 K, 120 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

pure white, 4000 K, 128 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

pure white, tunable white, 119 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

TASK S sensor direct / indirect power suspended

Status

Article number(s)

Type

Dimming

jet black, 3000 K, 119 lm/W, length 1,189 mm

stand alone ESSENTIAL sensor

jet black, 4000 K, 126 lm/W, length 1,189 mm

stand alone ESSENTIAL sensor

jet black, tunable white, 114 lm/W, length 1,189 mm

stand alone ESSENTIAL sensor

jet black, 3000 K, 119 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

jet black, 4000 K, 127 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

jet black, tunable white, 116 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

jet black, 3000 K, 120 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

jet black, 4000 K, 127 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

jet black, tunable white, 117 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

jet black, 3000 K, 120 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

jet black, 4000 K, 128 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

jet black, tunable white, 119 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

TASK S sensor direct / indirect power suspended

Status

Article number(s)

Type

Dimming

special colours, 3000 K, 119 lm/W, length 1,189 mm

stand alone ESSENTIAL sensor

special colours, 4000 K, 126 lm/W, length 1,189 mm

stand alone ESSENTIAL sensor

special colours, tunable white, 114 lm/W, length 1,189 mm

stand alone ESSENTIAL sensor

special colours, 3000 K, 119 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

special colours, 4000 K, 127 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

special colours, tunable white, 116 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

special colours, 3000 K, 120 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

special colours, 4000 K, 127 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

special colours, tunable white, 117 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

special colours, 3000 K, 120 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

special colours, 4000 K, 128 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

special colours, tunable white, 119 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

TASK S sensor direct / indirect soft suspended

Status

Article number(s)

Type

Dimming

pure white, 3000 K, 114 lm/W, length 1,189 mm

stand alone ESSENTIAL sensor

pure white, 4000 K, 122 lm/W, length 1,189 mm

stand alone ESSENTIAL sensor

pure white, 3000 K, 114 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

pure white, 4000 K, 122 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

pure white, 3000 K, 115 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

pure white, 4000 K, 122 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

pure white, 3000 K, 117 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

pure white, 4000 K, 125 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

TASK S sensor direct / indirect soft suspended

Status

Article number(s)

Type

Dimming

jet black, 3000 K, 114 lm/W, length 1,189 mm

stand alone ESSENTIAL sensor

jet black, 4000 K, 122 lm/W, length 1,189 mm

stand alone ESSENTIAL sensor

jet black, 3000 K, 114 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

jet black, 4000 K, 122 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

jet black, 3000 K, 115 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

jet black, 4000 K, 122 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

jet black, 3000 K, 117 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

jet black, 4000 K, 125 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

TASK S sensor direct / indirect soft suspended

Status

Article number(s)

Type

Dimming

special colours, 3000 K, 114 lm/W, length 1,189 mm

stand alone ESSENTIAL sensor

special colours, 4000 K, 122 lm/W, length 1,189 mm

stand alone ESSENTIAL sensor

special colours, 3000 K, 114 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

special colours, 4000 K, 122 lm/W, length 1,457 mm

stand alone ESSENTIAL sensor

special colours, 3000 K, 115 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

special colours, 4000 K, 122 lm/W, length 1,757 mm

stand alone ESSENTIAL sensor

special colours, 3000 K, 117 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

special colours, 4000 K, 125 lm/W, length 2,324 mm

stand alone ESSENTIAL sensor

TASK S

suspended

Quickinfo

Colour

Simple drawing

Light distribution

Product data & specification documents

Description

Products and codes

Colour

TASK S direct / indirect TW power suspended

TASK S direct / indirect TW power suspended

TASK S direct / indirect TW power suspended

TASK S direct / indirect TW power suspended

TASK S direct / indirect TW power suspended

TASK S direct / indirect TW power suspended

TASK S direct / indirect power suspended

TASK S direct / indirect power suspended

TASK S direct / indirect power suspended

TASK S direct / indirect power suspended

TASK S direct / indirect power suspended

TASK S direct / indirect power suspended

TASK S direct / indirect soft suspended

TASK S direct / indirect soft suspended

TASK S direct / indirect soft suspended

TASK S direct / indirect soft suspended

TASK S direct / indirect soft suspended

TASK S direct / indirect soft suspended

TASK S sensor direct / indirect TW power suspended

TASK S sensor direct / indirect TW power suspended

TASK S sensor direct / indirect TW power suspended

TASK S sensor direct / indirect TW power suspended

TASK S sensor direct / indirect TW power suspended

TASK S sensor direct / indirect TW power suspended

TASK S sensor direct / indirect power suspended

TASK S sensor direct / indirect power suspended

TASK S sensor direct / indirect power suspended

TASK S sensor direct / indirect power suspended

TASK S sensor direct / indirect power suspended

TASK S sensor direct / indirect power suspended

TASK S sensor direct / indirect soft suspended

TASK S sensor direct / indirect soft suspended

TASK S sensor direct / indirect soft suspended

TASK S sensor direct / indirect soft suspended

TASK S sensor direct / indirect soft suspended

TASK S sensor direct / indirect soft suspended

Related products
