TASK S linear direct / indirect power
suspended system
059-5765138K
Quickinfo
4000 KCRI ≥ 90 / 3 SDCM
UGR < 19
4,140 lm/↑ 2,230 lm
120 lm/W
L90 / 50000 h
DALI-2
Microprismatic
IP20 / PC1 / 220-240 V
Colour
General
- Ceiling
- Suspended
- black
- RAL9005 1
- IP20
- indirect 2230 lm
- direct 4140 lm
- total 6370 lm
LED
- 4000 K
- CRI ≥ 90
- L90 / 50000 h
- initial MacAdam ≤ 3 SDCM
- Rg: 96
- Rf: 90
- R{1-15}: 87
- MR 0.75
- MDER 0.68
Optical
- Microprismatic
- microprismatic
- UGR < 19
- ≤ 1.0 2
- SVM ≤ 0.4 2
Electrical
- DALI-2
- 220-240 V
- system 53 W
- PC1
- system 120 lm/W3
- 1 DALI Addr.
Physical
- length 1457 mm
- width 180 mm
- height 34 mm
- 3.9 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures

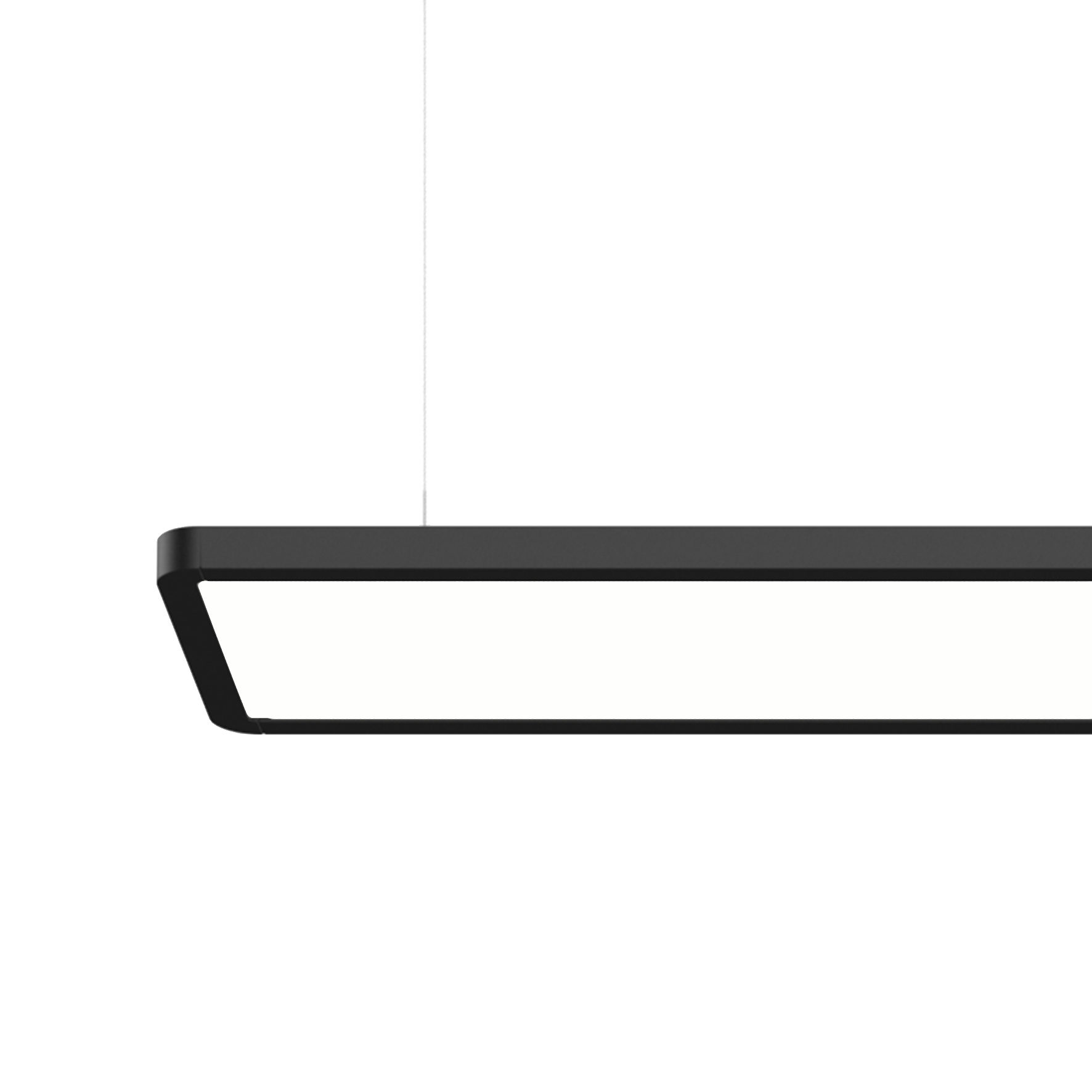

Luminaire housing made of aluminium with rounded edges; extremely flat (only 15mm) and slim (only 180mm) design; modern shape in an elegant design for high demands; for continuous lighting systems; surface black powder coated; with integrated toolless suspension height adjustment on the luminaire; convenient quick mounting system without tools; direct light distribution through LGP body (Light Guiding Prism); side coupled light directed downwards by laser engraving; light control via highly reflective reflector material; indirect light component with special PCBs for increased luminous flux and maximum ceiling illumination; microprismatic PMMA cover; completely homogeneous illumination; same light density for all surface lights with the same components; UGR ≤ 19; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; degree of protection IP20; PC1; internal wiring in light halogen free; incl. DALI-2 converter; sound absorbing accessories available; accessories are listed separately; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
