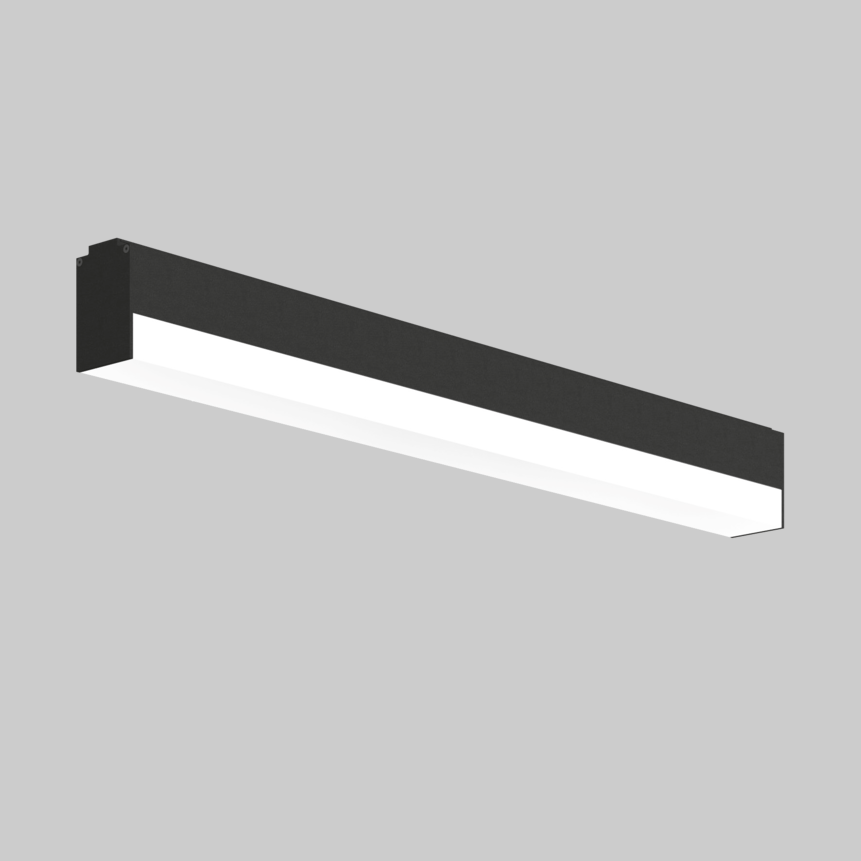

OPAL JUT-OUT MOVE IT 45

OPAL JUT-OUT

MOVE IT 45

Quickinfo

3000 K, 4000 K, tunable white
CRI ≥ 90 / 3 SDCM
up to 86 lm/W
L80 / 50000 h, L90 / 50000 h
DALI-2 DT8 single control, DALI-2 single control
Jut-Out
IP20 / PC3 / 48 V

Colour

    • Products and codes
    Discover family

    Simple drawing

    Product data & specification documents

    Download all
    Download all
    • 3DS
    • DWG - 3D
    • Revit BIM data

    Description

    Linear light inset made of aluminium; light inset can be installed and moved without tools by means of magnetic holders+locking; surface anodised; prodruding from profile system; completely homogeneously illuminated, satinised PMMA cover; with CSP (Chip-Scale-Packaging) technology for maximum efficiency; energy-efficient high power LEDs with very good colour rendering; hot plug protection

    Products and codes

    Filter
    78
    lm/W
    86
    lm/W
    1150
    lm
    2550
    lm
    14.3
    W
    29.6
    W
    0.61
    0.95
    0.55
    0.86

    Colour

    • OPAL JUT-OUT MOVE IT 45

    OPAL JUT-OUT MOVE IT 45

    OPAL JUT-OUT MOVE IT 45

    Status
    Article number(s)
    Type
    Dimming
    3000 K, 78 lm/W, length 605 mm
    DALI-2 single control
    4000 K, 86 lm/W, length 605 mm
    DALI-2 single control
    tunable white, 80 lm/W, length 605 mm
    DALI-2 DT8 single control
    3000 K, 78 lm/W, length 1,205 mm
    DALI-2 single control
    4000 K, 86 lm/W, length 1,205 mm
    DALI-2 single control
    tunable white, 81 lm/W, length 1,205 mm
    DALI-2 DT8 single control

    System products

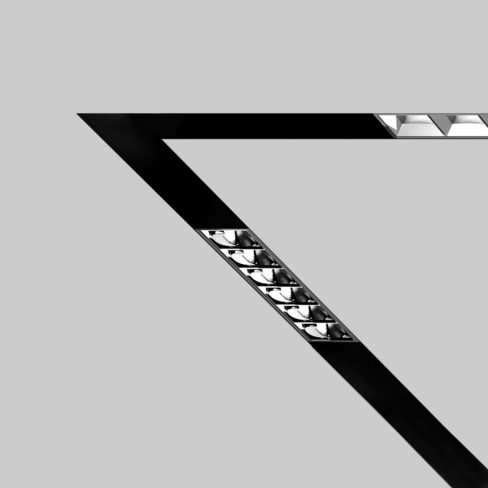

    MOVE IT 45

    trimless system

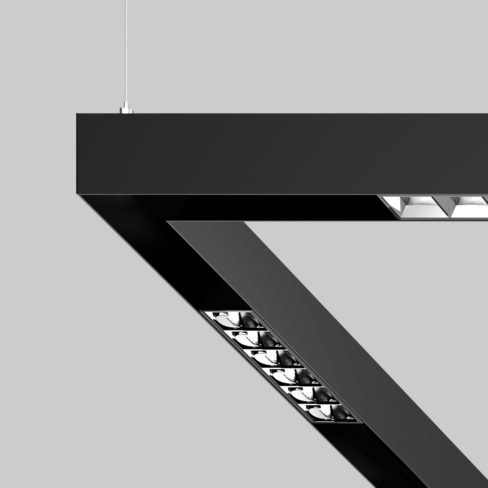

    MOVE IT 45

    surface / suspended system

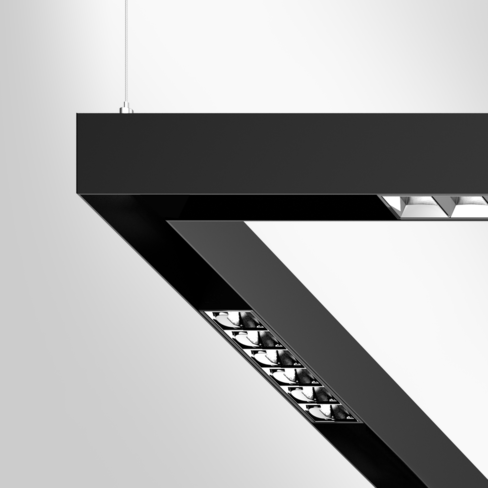

    MOVE IT 45

    suspended indirect system
