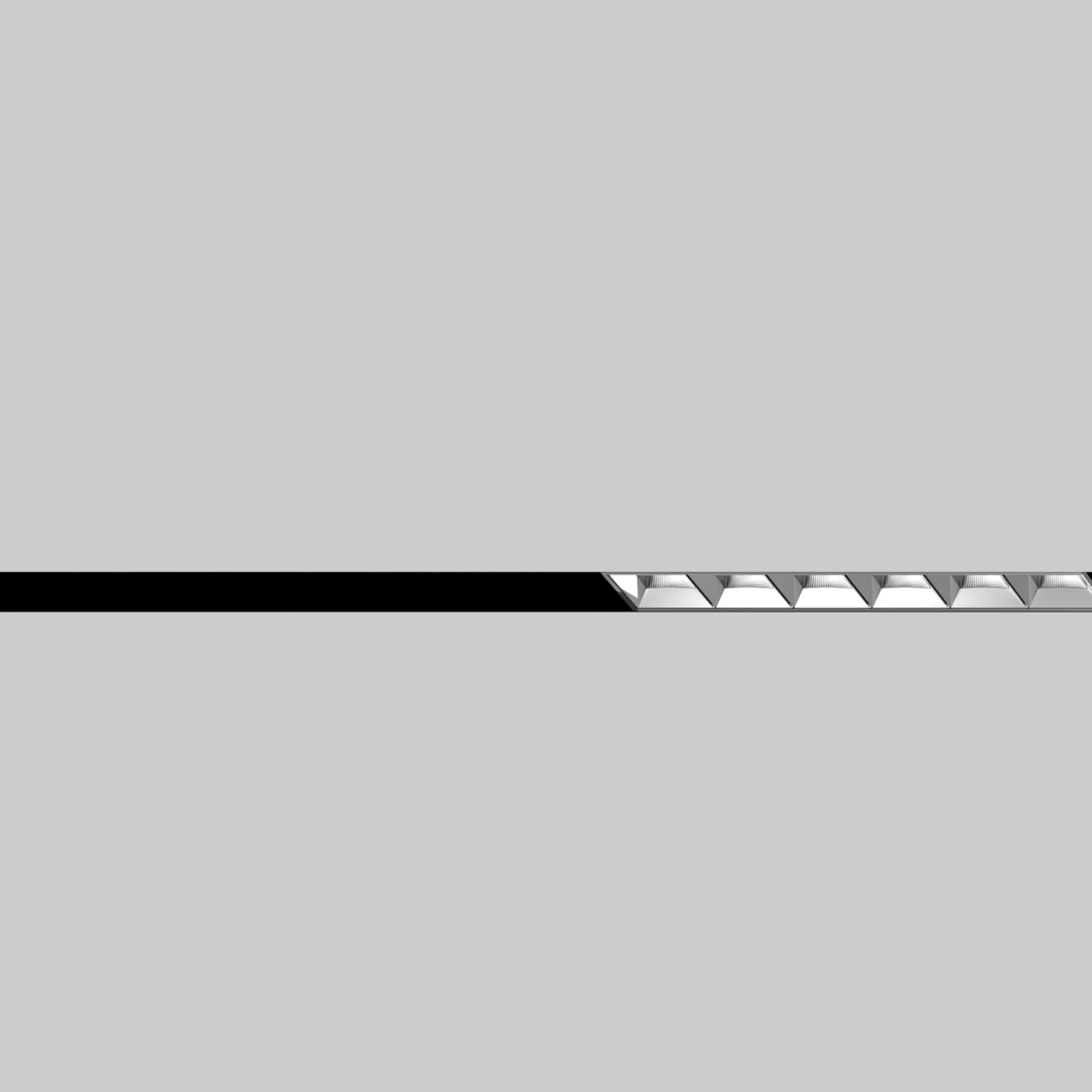

MOVE IT 45 trimless track

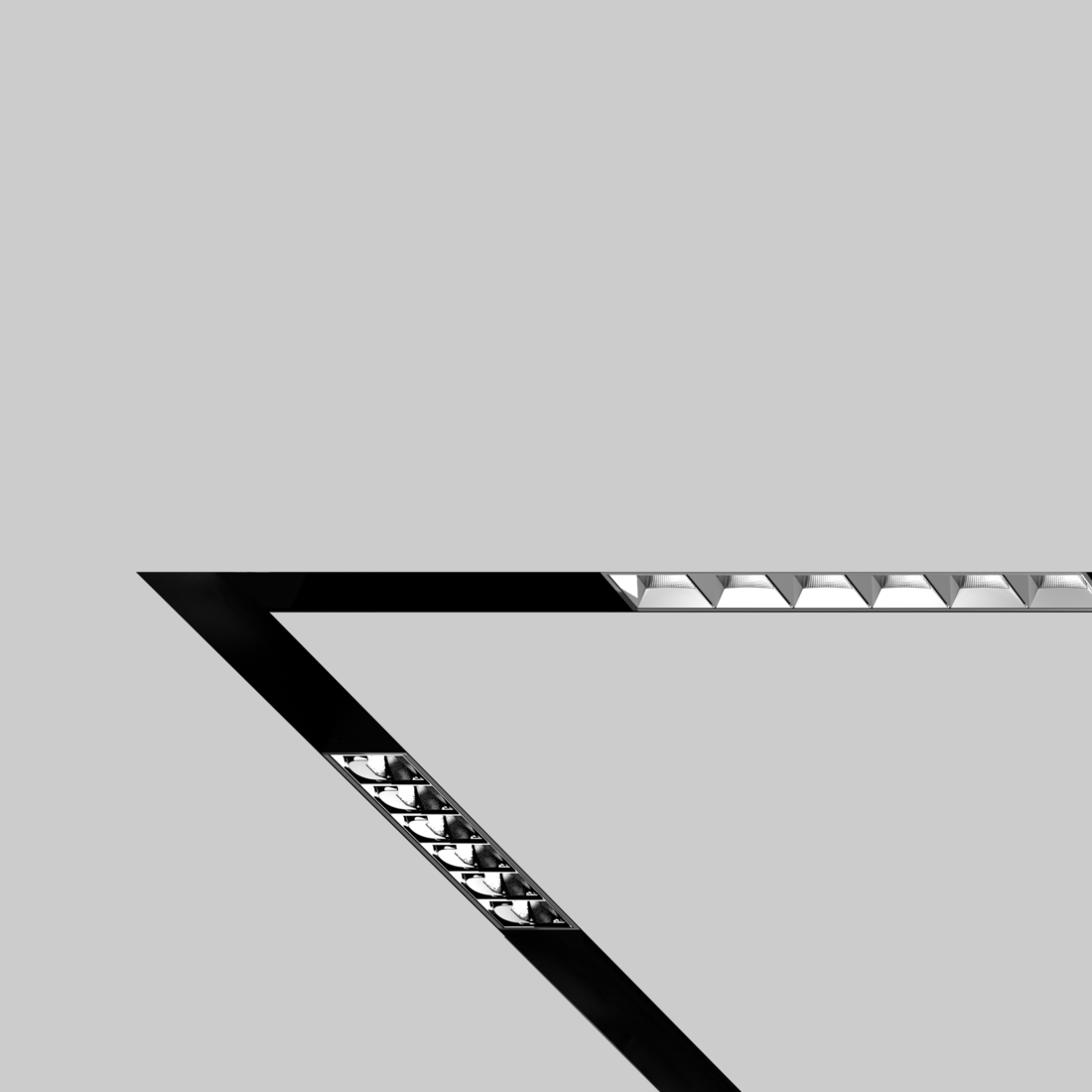

MOVE IT 45 trimless system;MOVE IT 45 trimless track corner

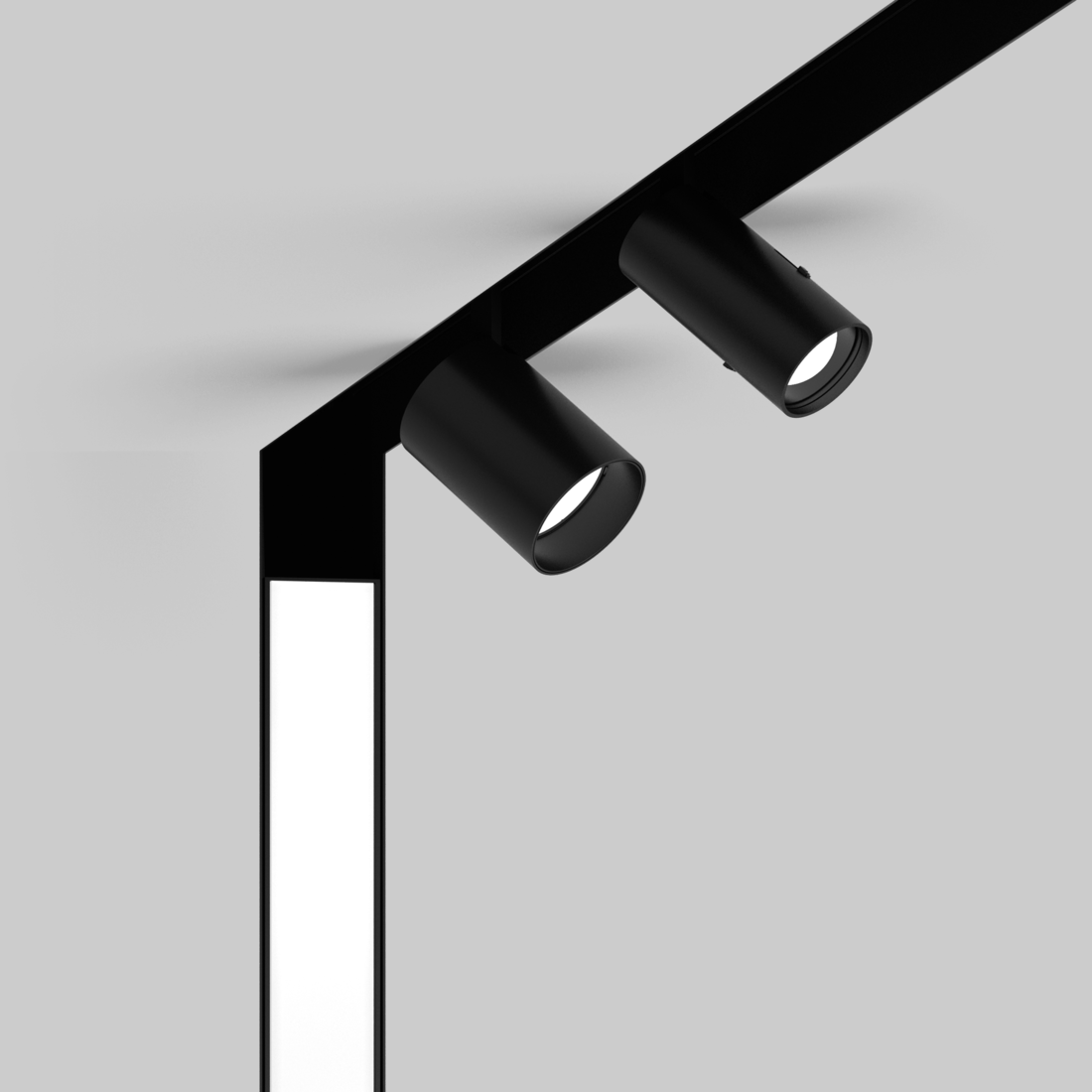

MOVE IT 45 trimless track ceiling wall
Langzauner GmbH
Langzauner GmbH
Press Glass Headquarters
CREATIVE LAB

MOVE IT 45

trimless system

Quickinfo

DALI-2 single control, non DIM
IP20 / PC3 / 48 V

Colour

    • Products and codes
    Discover family

    Simple drawing

    Product data & specification documents

    Download all
    Download all
    • 3DS
    • DWG - 3D
    • Revit BIM data

    Description

    Extruded aluminium profile with 45 mm width groove; suitable for trimless installation in plasterboard ceilings with 12.5 mm ceiling thickness; suitable for wall or ceiling mounting; designed for continuous lighting systems, 90° angle connectors for flexible system design; with integrated power track profile for take off of supply voltage and DALI signal; surface anodised; insets can be installed flexibly and without tools by means of magnetic holders+locking

    custom cut on building site or by XAL

    acoustic elements

    Products and codes

    Filter

    Colour

    • MOVE IT 45 trimless track

    MOVE IT 45 trimless track

    MOVE IT 45 trimless track

    Status
    Article number(s)
    Type
    Dimming
    length 617 mm
    non DIM
    length 617 mm
    DALI-2 single control
    length 1,217 mm
    non DIM
    length 1,217 mm
    DALI-2 single control
    length 2,417 mm
    non DIM
    length 2,417 mm
    DALI-2 single control
    length 3,622 mm
    non DIM
    length 3,622 mm
    DALI-2 single control
    MOVE IT 45 trimless track ceiling wall

    MOVE IT 45 trimless track ceiling wall

    MOVE IT 45 trimless track ceiling wall

    Status
    Article number(s)
    Type
    Dimming
    length 661 mm
    non DIM
    length 661 mm
    DALI-2 single control
    MOVE IT 45 trimless system;MOVE IT 45 trimless track corner

    MOVE IT 45 trimless track corner

    MOVE IT 45 trimless track corner

    Status
    Article number(s)
    Type
    Dimming
    length 692 mm
    non DIM
    length 692 mm
    DALI-2 single control

    Accessories

    System products

    New Version

    JUST 45

    MOVE IT 25 / 25 S / 45
    New Version

    JUST 55

    MOVE IT 25 / 25 S / 45
