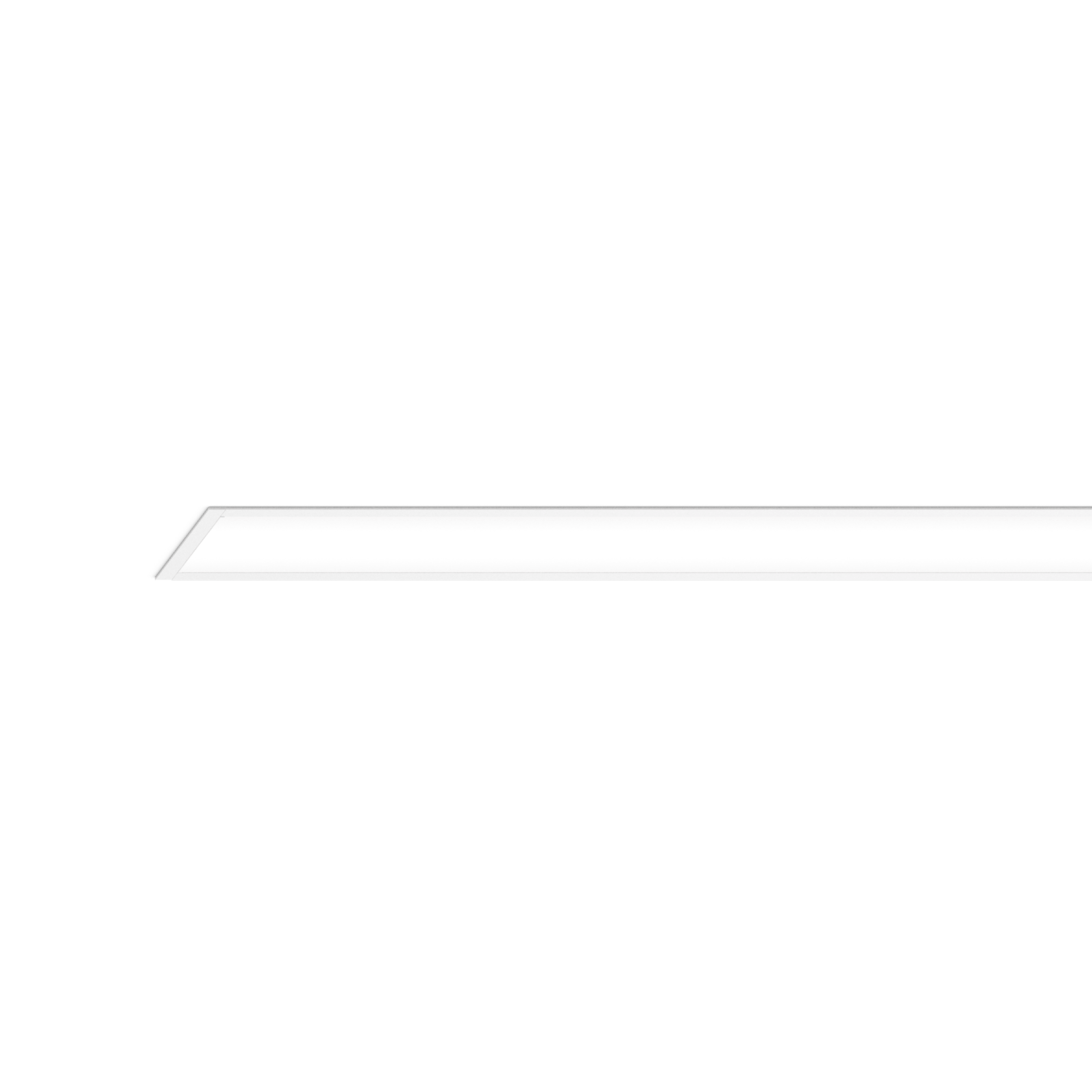

FRAME 100 high lumen
trim
052-43M2517G
Quickinfo
3000 KCRI ≥ 80 / 3 SDCM
UGR < 19
109 lm/W
L90 / 50000 h
non DIM
Microprismatic
IP20
Colour
General
- Ceiling
- Recessed
- white
- RAL9016 1
- 2620 lm/m
- IP20
- 1500 lm
LED
- 3000 K
- CRI ≥ 80
- L90 / 50000 h
- initial MacAdam ≤ 3 SDCM
- MR 0.54
- MDER 0.49
Optical
- Microprismatic
- microprismatic
- UGR < 19
- ≤ 1.0 2
- SVM ≤ 0.4 2
Electrical
- non DIM
- 220-240 V
- system 13.8 W
- PC1
- system 109 lm/W3
- 24 W/m
Physical
- trim
- length 596 mm
- width 120 mm
- height 82 mm
- 2.35 kg
Cutout
- length 584 mm
- width 108 mm
- min. ceiling thickness 8 mm
- max. ceiling thickness 25 mm
- recessed depth 108 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Luminaire housing made of extruded aluminium profile; recessed light with wrap around edge; suitable for ceiling thickness of 8-25 mm; surface white powder coated; lighting profile (end cover and mounting bracket pre-assembled) available in advance for installation; remaining lamp components mounted without tools; LED light inset consisting of highly reflective lacquered aluminium for improved thermal management; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance; UGR ≤ 19; degree of protection IP20; PC1; 220-240 V; internal wiring in light halogen free; incl. converter, non dimmable; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
