UNICO Q9 basic ceiling

UNICO Q9 basic

ceiling

090-1Q9419B001

Quickinfo

2700 K
CRI ≥ 90 / 3 SDCM
86 lm/W
L90 / 50000 h
non DIM
IP20

Colour

Reflector

General

  • Ceiling
  • Surface
  • black
  • Reflector chrome
  • RAL9005 1
  • IP20
  • 2910 lm

LED

  • 2700 K
  • CRI ≥ 90
  • L90 / 50000 h
  • initial MacAdam ≤ 3 SDCM
  • Rg: 101
  • Rf: 91
  • R{1-15}: 89
  • MR 0.56
  • MDER 0.51

Optical

  • wallwasher floor
  • PstLM ≤ 1.0 2
  • SVM ≤ 0.4 2

Electrical

  • non DIM
  • system 34 W
  • PC1
  • system 86 lm/W3

Physical

  • length 126 mm
  • width 126 mm
  • height 90 mm
  • 0.75 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B13
B16
B20
C10
C13
C16
C20

Number of Fixtures

48
62
76
95
81
104
129
162
1 RAL code 2 Value of containing product at full load (undimmed) 3 incl. optical losses and the efficiency of the operating device (converter)

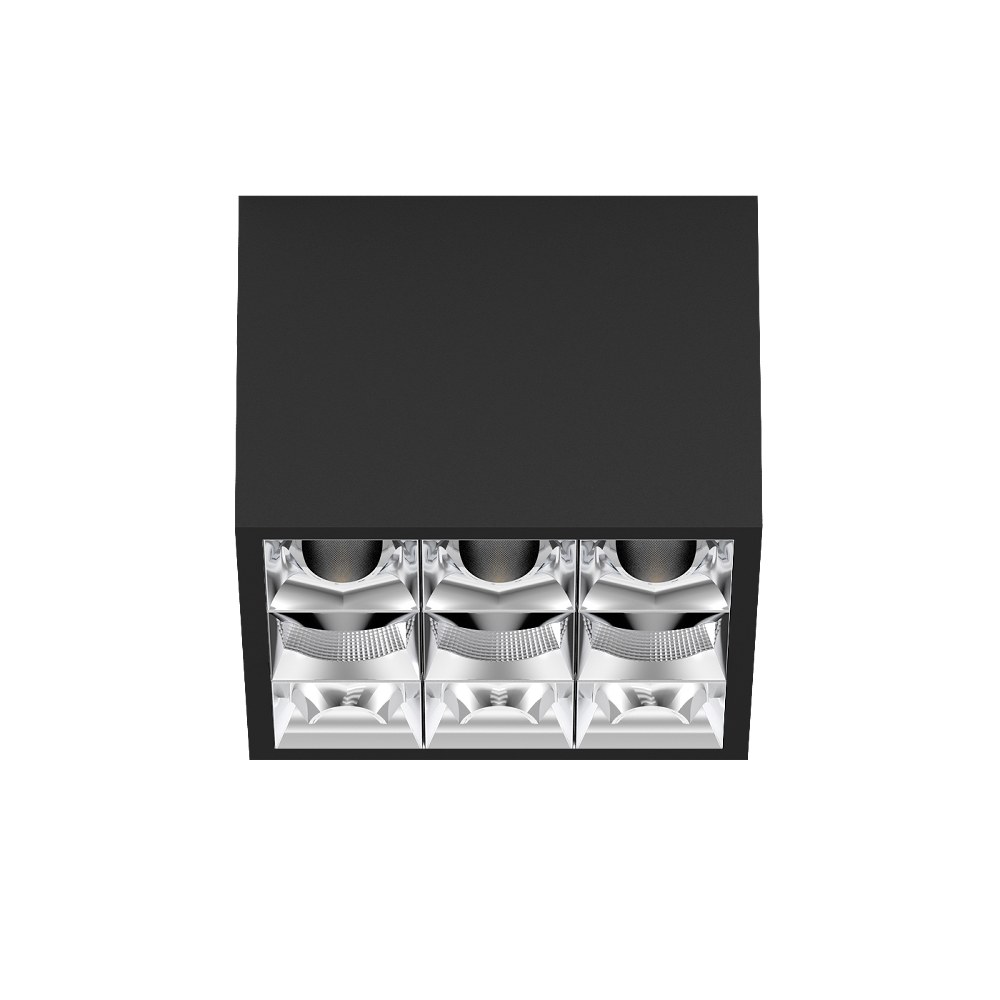

Square surface mounted multi-downlight made of aluminium; luminaire housing can be attached to mounting plate without tools by interlock; converter integrated into luminaire housing; surface black powder coated; equipped with three wallwasher floor light elements 180° + three wallwasher floor light elements 0° + three rectangular medium light elements; precise radiation characteristic; high quality reflector with micro-faceted, aluminum-vaporised surface; Reflector chrome; passive cooling of the LEDs through improved heat sink geometry; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC1; incl. converter, non dimmable; light source not replaceable; control gear replaceable by an authorized professional; clank-free;
