UNICO L2 basic trim

UNICO L2 basic

trim

090-7L241D0021 090-7L2020B

Quickinfo

2700 K
CRI ≥ 90 / 3 SDCM
/ 65° ≤ 1,500 cd/m²
87 lm/W
L90 / 50000 h
non DIM
IP20

Colour

Mounting set

General

  • Ceiling
  • Recessed
  • chrome reflector
  • Mounting set jet black
  • RAL9005 1
  • IP20
  • 632 lm

LED

  • 2700 K
  • CRI ≥ 90
  • L90 / 50000 h
  • initial MacAdam ≤ 3 SDCM
  • Rg: 101
  • Rf: 91
  • R{1-15}: 89
  • MR 0.56
  • MDER 0.51

Optical

  • wide flood round
  • beam angle 72°
  • ≥65° <1500 cd/m²
  • PstLM ≤ 1.0 2
  • SVM ≤ 0.4 2

Electrical

  • non DIM
  • system 7.3 W
  • PC2
  • system 87 lm/W3

Physical

  • trim
  • length 81 mm
  • width 43 mm
  • height 51 mm
  • 0.31 kg

Cutout

  • length 90 mm
  • width 50 mm
  • min. ceiling thickness 2 mm
  • max. ceiling thickness 25 mm
  • recessed depth 120 mm

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B13
B16
B20
B25
C10
C13
C16
C20
C25

Number of Fixtures

31
40
50
62
78
52
67
85
104
130
1 RAL code 2 Value of containing product at full load (undimmed) 3 incl. optical losses and the efficiency of the operating device (converter)

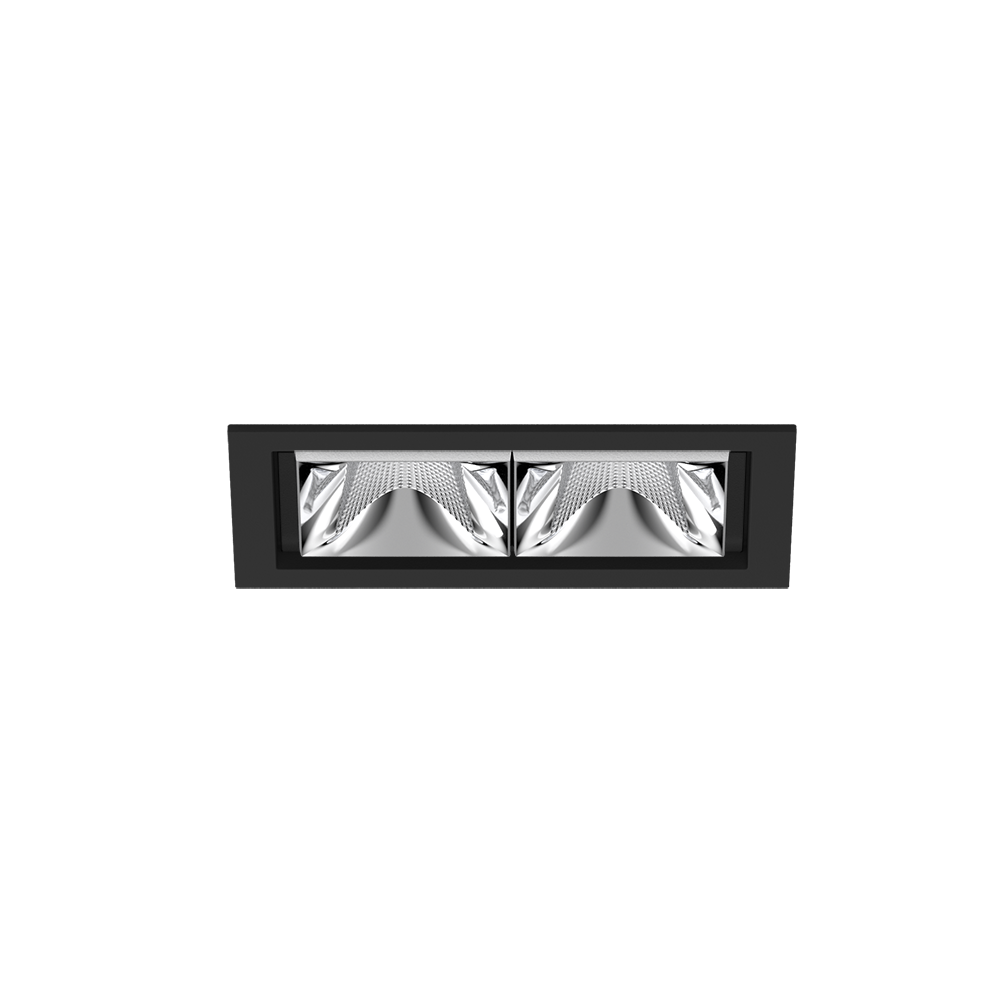

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with two wide flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 72°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;
