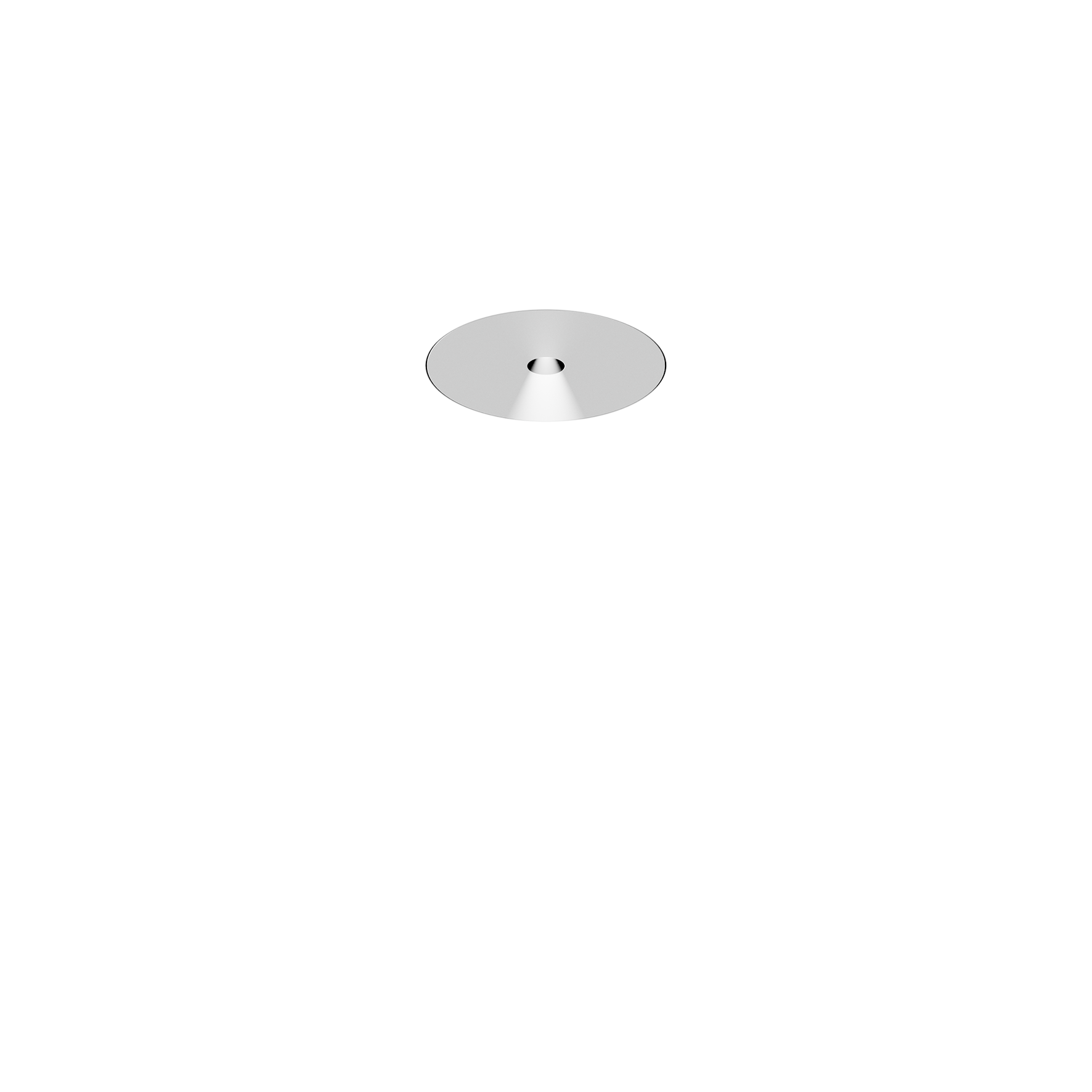

SPIO 60 downlight trimless

SPIO 60 downlight

trimless

048-1510417F 048-2696117 002-90787

Quickinfo

2700 K
CRI ≥ 90 / 3 SDCM
UGR < 10
34 lm/W, inset 40 lm/W
L95 / 50000 h
non DIM
IP20

Colour

Mounting set

General

  • Ceiling
  • Recessed
  • rotation 360°
  • white
  • Mounting set traffic white
  • RAL9016 1
  • IP20
  • 477 lm

LED

  • 2700 K
  • CRI ≥ 90
  • L95 / 50000 h
  • initial MacAdam ≤ 3 SDCM
  • Rg: 104
  • Rf: 88
  • R{1-15}: 89
  • MR 0.5
  • MDER 0.46

Optical

  • flood
  • beam angle 34°
  • UGR < 10
  • PstLM ≤ 1.0 2
  • SVM ≤ 0.4 2

Electrical

  • non DIM
  • system 14.0 W
  • inset 11.9 W
  • 12 Vf
  • 1050 mA
  • PC2 220-240V
  • system 34 lm/W3
  • inset 40 lm/W4

Physical

  • trimless
  • diameter 73 mm
  • height 67 mm
  • 0.47 kg

Cutout

  • diameter 73 mm
  • min. ceiling thickness 12.5 mm
  • max. ceiling thickness 25 mm
  • recessed depth 90 mm

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B13
B16
B20
B25
C10
C13
C16
C20
C25

Number of Fixtures

17
21
27
33
42
28
36
45
56
70
1 RAL code 2 Value of containing product at full load (undimmed) 3 incl. optical losses and the efficiency of the operating device (converter) 4 incl. optical losses

Round recessed spotlight in die-cast aluminium; surface white powder coated; installation without tools in mounting set due to patented ball catch system; for trimless installation in plasterboard ceilings, specially designed trim with grooves for better adhesion of smoothing compound; suitable for ceiling thickness of 12.5/15/25 mm; paintable cover; shadow joint between cover and mounting set optionally fillable; passive cooling of the LEDs through improved heat sink geometry; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 95% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; incl. high quality lens system; precise radiation characteristic with 34° beam; no multiple shadows; uncluttered ceiling look through recessed lighting level; reduced light-emitting surface (only ø 10 mm); degree of protection IP20; PC2 220-240V; incl. converter, non dimmable; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
