SPIO 20 wallwasher/floor trimless

SPIO 20 wallwasher/floor

trimless

048-17304108W 048-1698107 002-90787

Quickinfo

2700 K
CRI ≥ 90 / 3 SDCM
51 lm/W, inset 67 lm/W
L95 / 50000 h
non DIM
IP20

Colour

Mounting set

General

  • Ceiling
  • Recessed
  • rotation 360°
  • white
  • traffic white
  • RAL9016 1
  • IP20
  • 399 lm

LED

  • 2700 K
  • CRI ≥ 90
  • L95 / 50000 h
  • initial MacAdam ≤ 3 SDCM
  • Rg: 104
  • Rf: 88
  • R{1-15}: 89
  • MR 0.5
  • MDER 0.46

Optical

  • wallwasher floor
  • beam angle 52°
  • PstLM ≤ 1.0 2
  • SVM ≤ 0.4 2

Electrical

  • non DIM
  • system 7.9 W
  • inset 5.9 W
  • 5.6 Vf
  • 1050 mA
  • PC2 220-240V
  • system 51 lm/W3
  • inset 67 lm/W4

Physical

  • trimless
  • diameter 26 mm
  • height 51 mm

Cutout

  • diameter 48 mm
  • min. ceiling thickness 9 mm
  • max. ceiling thickness 25 mm
  • recessed depth 80 mm

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B13
B16
B20
B25
C10
C13
C16
C20
C25

Number of Fixtures

17
21
27
33
42
28
36
45
56
70
1 RAL code 2 Value of containing product at full load (undimmed) 3 incl. optical losses and the efficiency of the operating device (converter) 4 incl. optical losses

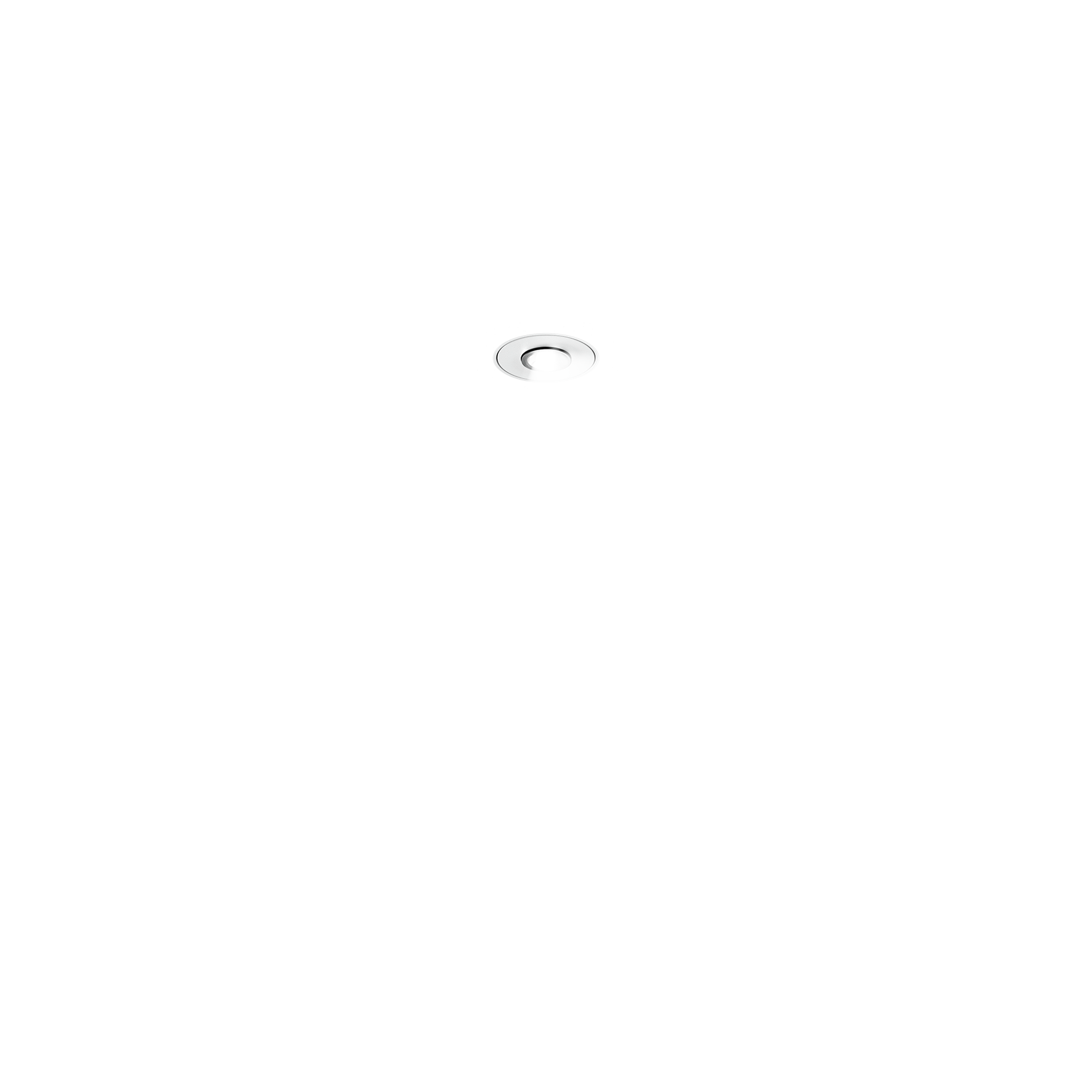

Round recessed spotlight in aluminium; surface white powder coated; installation without tools in mounting set due to patented ball catch system; for trimless installation in plasterboard ceilings, specially designed trim with grooves for better adhesion of smoothing compound; suitable for ceiling thickness of 9-25 mm; special mounting tool for easy installation of the trimless housing available as an accessory; paintable light inset; shadow joint between light inset and mounting set optionally fillable; passive cooling of the LEDs through improved heat sink geometry; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 95% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; with specially computed, asymmetrical reflector for homogeneous lighting intensity; high quality reflector with micro-faceted, aluminum-vaporised surface; no multiple shadows; uncluttered ceiling look through recessed lighting level; reduced light-emitting surface (only ø 13 mm); degree of protection IP20; PC2 220-240V; incl. converter, non dimmable; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
