PICO SUPPORT round / square
Quickinfo
3000 K, 4000 K
CRI ≥ 95 (R9 ≥ 90)
L90 / 50 000 h
L 290 up to 249 lm
L 580 up to 498 lm
L 880 up to 747 lm
L 1180 up to 996 lm
DALI-2, non DIM

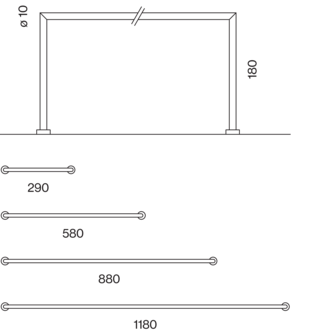

Simple drawing
Light distribution
Description
Round or square, slim rectangular lamp made of aluminium; +/- 10° rotatable; surface black or natural anodised; plug and play electrical connector system for toolless mounting; beam angle 132°; passively cooled high-power LED system; available in the light colours 3000 K and 4000 K; min. 90 % of the luminous flux after 50000 operating hours; colour rendering CRI ≥ 95, R9 > 90; 350 mA converter plug and play; converter separately available; degree of protection IP 20; PC I / PC II (power supply) or PC III (light insets); optionally non-dimmable or DALI-2 control
10 mm diameter
10° tiltable
CRI ≥ 95, R9 ≥ 90
