WALLWASHER FLUSH MOVE IT 25 S;WALL GRAZER MOVE IT 25 S;BATWING MOVE IT 25 S
Dental Practice Coornaert- (Tantartscentrum Atlas)

WALLWASHER FLUSH

MOVE IT 25 S

Quickinfo

2700 K, 3000 K
CRI ≥ 90 / 3 SDCM
up to 82 lm/W
L80 / 50000 h
DALI-2 single control, non DIM
IP20 / PC3 48V

Colour

    • Products and codes
    Discover family

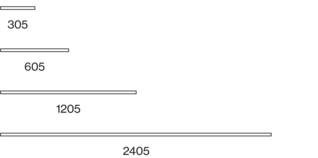

    Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    Download all
    • 3DS
    • DWG - 3D
    • Revit BIM data

    Description

    Linear light inset made of aluminium; light inset can be installed and moved without tools by means of magnetic holders+locking; surface anodised; flush with profile system; with specially computed, asymmetrical lens for homogeneous vertical lighting intensity; with CSP (Chip-Scale-Packaging) technology for maximum efficiency; energy-efficient LEDs with very good colour rendering; hot plug protection

    CRI ≥ 98 XPECTRUM (optional)

    Products and codes

    Filter
    74
    lm/W
    82
    lm/W
    415
    lm
    3630
    lm
    5.6
    W
    45
    W
    0.45
    0.56
    0.41
    0.51

    Colour

    • WALLWASHER FLUSH MOVE IT 25 S;WALL GRAZER MOVE IT 25 S;BATWING MOVE IT 25 S

    WALLWASHER FLUSH MOVE IT 25 S

    WALLWASHER FLUSH MOVE IT 25 S

    Status
    Article number(s)
    Type
    Dimming
    2700 K, system 5.6 W, 74 lm/W, length 305 mm
    non DIM
    2700 K, system 5.6 W, 74 lm/W, length 305 mm
    DALI-2 single control
    3000 K, system 5.6 W, 81 lm/W, length 305 mm
    non DIM
    3000 K, system 5.6 W, 81 lm/W, length 305 mm
    DALI-2 single control
    2700 K, system 11.2 W, 74 lm/W, length 605 mm
    non DIM
    2700 K, system 11.2 W, 74 lm/W, length 605 mm
    DALI-2 single control
    3000 K, system 11.2 W, 81 lm/W, length 605 mm
    non DIM
    3000 K, system 11.2 W, 81 lm/W, length 605 mm
    DALI-2 single control
    2700 K, system 22.3 W, 74 lm/W, length 1,205 mm
    non DIM
    2700 K, system 22.3 W, 74 lm/W, length 1,205 mm
    DALI-2 single control
    3000 K, system 22.3 W, 82 lm/W, length 1,205 mm
    non DIM
    3000 K, system 22.3 W, 82 lm/W, length 1,205 mm
    DALI-2 single control
    2700 K, system 45 W, 74 lm/W, length 2,405 mm
    non DIM
    2700 K, system 45 W, 74 lm/W, length 2,405 mm
    DALI-2 single control
    3000 K, system 45 W, 81 lm/W, length 2,405 mm
    non DIM
    3000 K, system 45 W, 81 lm/W, length 2,405 mm
    DALI-2 single control

    System products

    MOVE IT 25 S

    trimless system

    MOVE IT 25 S

    surface / suspended system

    MOVE IT 25 S

    suspended indirect system
