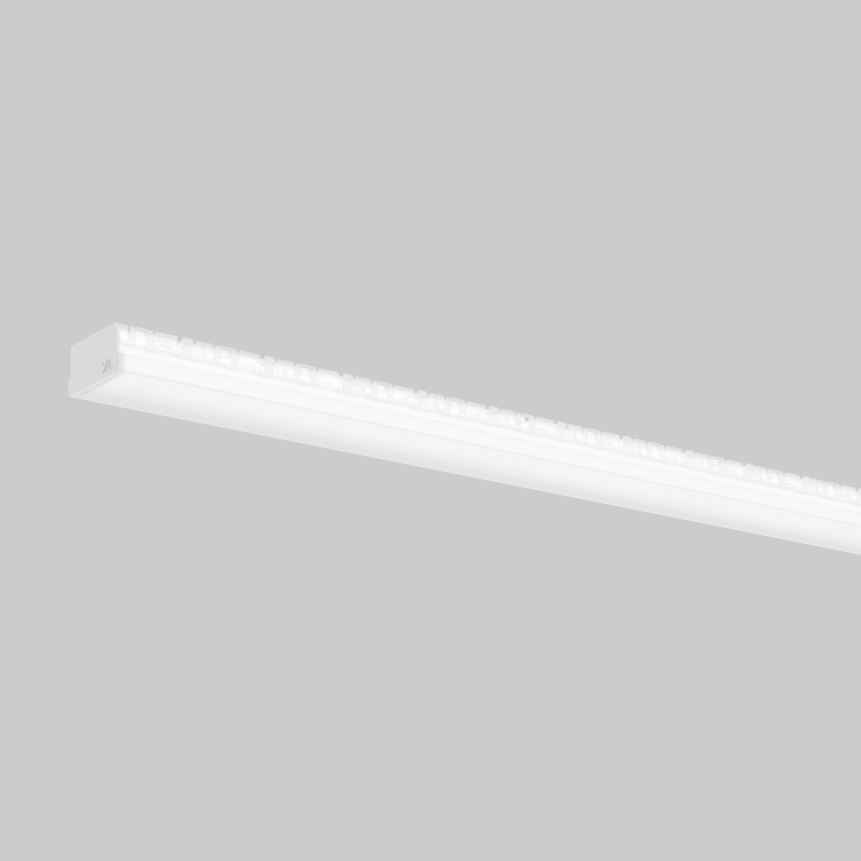

OPAL JUT-OUT MOVE IT PRO

OPAL JUT-OUT

MOVE IT PRO

Quickinfo

2700 K, 3000 K, 3500 K, 4000 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM
up to 164 lm/W
L90 / 50000 h
DALI-2
Opal
IP20 / PC2 / 220-240 V

Simple drawing

Light distribution

Product data & specification documents

Download all
  • 3DS
  • DWG - 3D
  • Revit BIM data

Description

Linear light inset made of plastic; light inset, incl. high power adapter + converter can be installed flexibly and without tools; prodruding from profile system; equipped with specially computed lenses; homogeneously illuminated, satinised PMMA cover; energy-efficient LEDs with very good colour rendering

continuous cover

up to 152 lm/W (high efficiency)

Dieser Bereich wird neu geladen sobald ein Eingabefeld geändert wird.

Products and codes

Filter
104
lm/W
164
lm/W
1900
lm
7540
lm
18.2
W
46
W
0.48
0.81
0.44
0.74
OPAL JUT-OUT MOVE IT PRO

OPAL JUT-OUT MOVE IT PRO

OPAL JUT-OUT MOVE IT PRO

Status
Article number(s)
Type
Dimming
3000 K, CRI ≥ 90, system 18.2 W, 104 lm/W, length 1,000 mm
DALI-2
4000 K, CRI ≥ 90, system 18.2 W, 113 lm/W, length 1,000 mm
DALI-2
3500 K, CRI ≥ 90, system 18.2 W, 104 lm/W, length 1,000 mm
DALI-2
2700 K, CRI ≥ 80, system 18.2 W, 121 lm/W, length 1,000 mm
DALI-2
3000 K, CRI ≥ 80, system 18.2 W, 121 lm/W, length 1,000 mm
DALI-2
4000 K, CRI ≥ 80, system 18.2 W, 138 lm/W, length 1,000 mm
DALI-2
3500 K, CRI ≥ 80, system 18.2 W, 130 lm/W, length 1,000 mm
DALI-2
2700 K, CRI ≥ 90, system 18.2 W, 104 lm/W, length 1,000 mm
DALI-2
3000 K, CRI ≥ 90, system 26.4 W, 108 lm/W, length 1,500 mm
DALI-2
4000 K, CRI ≥ 90, system 26.4 W, 117 lm/W, length 1,500 mm
DALI-2
3500 K, CRI ≥ 90, system 26.4 W, 108 lm/W, length 1,500 mm
DALI-2
2700 K, CRI ≥ 80, system 26.4 W, 125 lm/W, length 1,500 mm
DALI-2
3000 K, CRI ≥ 80, system 26.4 W, 125 lm/W, length 1,500 mm
DALI-2
4000 K, CRI ≥ 80, system 26.4 W, 143 lm/W, length 1,500 mm
DALI-2
3500 K, CRI ≥ 80, system 26.4 W, 134 lm/W, length 1,500 mm
DALI-2
2700 K, CRI ≥ 90, system 26.4 W, 108 lm/W, length 1,500 mm
DALI-2
3000 K, CRI ≥ 90, system 33 W, 115 lm/W, length 2,000 mm
DALI-2
4000 K, CRI ≥ 90, system 33 W, 125 lm/W, length 2,000 mm
DALI-2
3500 K, CRI ≥ 90, system 33 W, 115 lm/W, length 2,000 mm
DALI-2
2700 K, CRI ≥ 80, system 33 W, 134 lm/W, length 2,000 mm
DALI-2
3000 K, CRI ≥ 80, system 33 W, 134 lm/W, length 2,000 mm
DALI-2
4000 K, CRI ≥ 80, system 33 W, 152 lm/W, length 2,000 mm
DALI-2
3500 K, CRI ≥ 80, system 33 W, 143 lm/W, length 2,000 mm
DALI-2
2700 K, CRI ≥ 90, system 33 W, 115 lm/W, length 2,000 mm
DALI-2
3000 K, CRI ≥ 90, system 41 W, 116 lm/W, length 2,500 mm
DALI-2
4000 K, CRI ≥ 90, system 41 W, 125 lm/W, length 2,500 mm
DALI-2
3500 K, CRI ≥ 90, system 41 W, 116 lm/W, length 2,500 mm
DALI-2
2700 K, CRI ≥ 80, system 41 W, 135 lm/W, length 2,500 mm
DALI-2
3000 K, CRI ≥ 80, system 41 W, 135 lm/W, length 2,500 mm
DALI-2
4000 K, CRI ≥ 80, system 41 W, 153 lm/W, length 2,500 mm
DALI-2
3500 K, CRI ≥ 80, system 41 W, 144 lm/W, length 2,500 mm
DALI-2
2700 K, CRI ≥ 90, system 41 W, 116 lm/W, length 2,500 mm
DALI-2
3000 K, CRI ≥ 90, system 46 W, 124 lm/W, length 3,000 mm
DALI-2
4000 K, CRI ≥ 90, system 46 W, 134 lm/W, length 3,000 mm
DALI-2
3500 K, CRI ≥ 90, system 46 W, 124 lm/W, length 3,000 mm
DALI-2
2700 K, CRI ≥ 80, system 46 W, 144 lm/W, length 3,000 mm
DALI-2
3000 K, CRI ≥ 80, system 46 W, 144 lm/W, length 3,000 mm
DALI-2
4000 K, CRI ≥ 80, system 46 W, 164 lm/W, length 3,000 mm
DALI-2
3500 K, CRI ≥ 80, system 46 W, 154 lm/W, length 3,000 mm
DALI-2
2700 K, CRI ≥ 90, system 46 W, 124 lm/W, length 3,000 mm
DALI-2
