NOBA 40 suspended MOVE IT 10

NOBA 40 suspended

MOVE IT 10

030-6900434

Quickinfo

2700 K
CRI ≥ 90 / 2 SDCM
109 lm/W
L80 / 50000 h
DALI-2
IP20 / PC3 / 48 V

Colour

General

  • Ceiling
  • Track Suspended
  • chrome
  • IP20
  • 382 lm

LED

  • 2700 K
  • CRI ≥ 90
  • L80 / 50000 h
  • initial MacAdam ≤ 2 SDCM
  • Rg: 99
  • Rf: 91
  • R{1-15}: 89
  • MR 0.53
  • MDER 0.48

Optical

  • wide flood
  • beam angle 69°
  • PstLM ≤ 1.0 1
  • SVM ≤ 0.4 1

Electrical

  • DALI-2
  • 48 V
  • inset 3.5 W
  • PC3
  • inset 109 lm/W2
  • 1 DALI Addr.

Physical

  • diameter 40 mm
  • height 40 mm
  • 1500 mm
1 Value of containing product at full load (undimmed) 2 incl. optical losses and the efficiency of the operating device (converter)

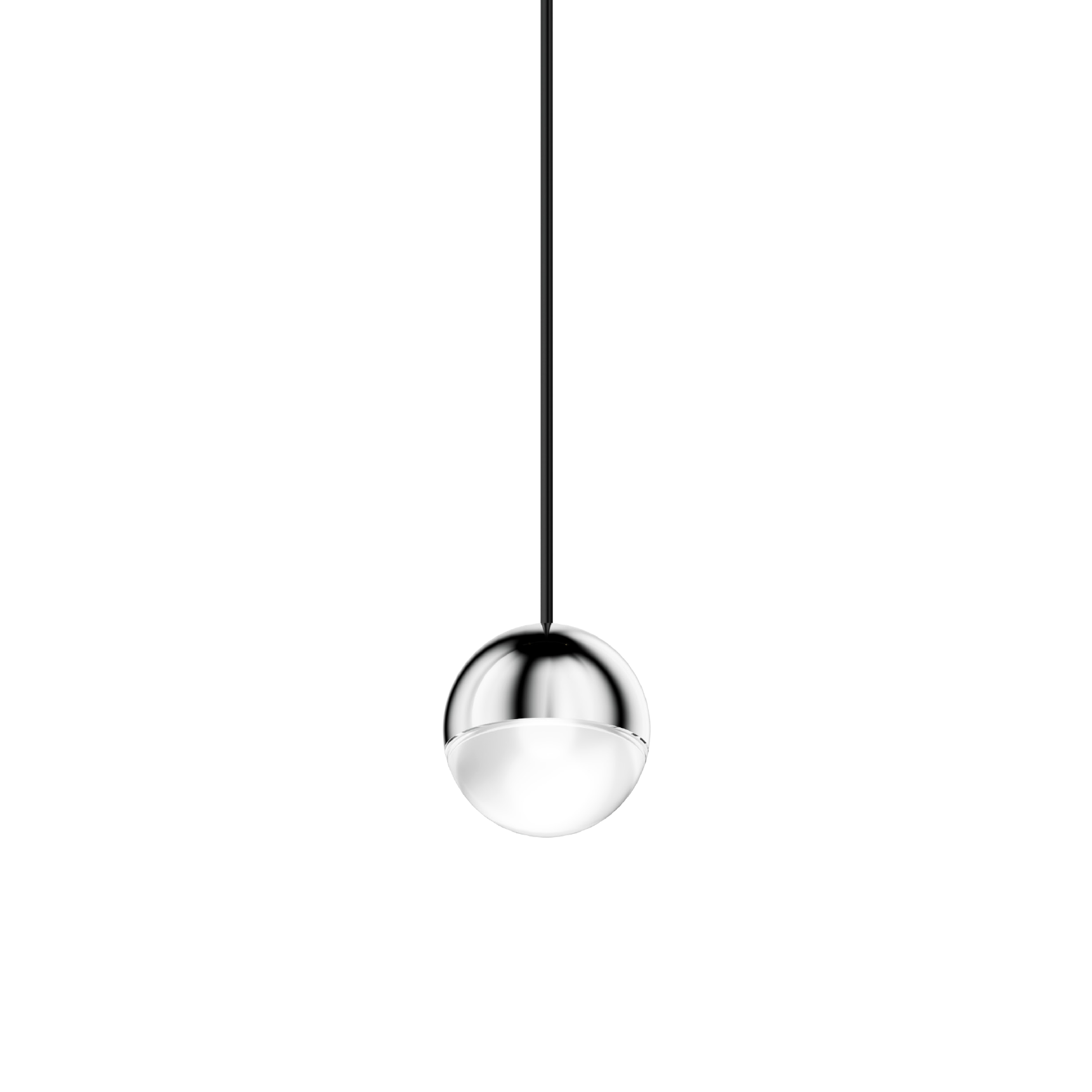

Decorative pendant light inset made of aluminium; surface polished chrome; light inset can be installed and moved without tools by means of clip mount; power supplied via MOVE IT system track profile; hot plug protection; pendant fitting with 1500mm suspension, incl. feed (black), can be individually shortened; passive cooling of the LEDs through improved heat sink geometry; light colour 2700 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; high quality plano-convex glass lens; beam angle 69°; no multiple shadows; degree of protection IP20; PC3; DALI-2 control; flicker-free visual comfort through analogue current control (minimum value 1%); light source replaceable by an authorized professional;

Product data & specification documents

Datasheets

Planing files & lighting data

Download all
lightDistribution
lightDistribution
mainDrawing

Accessories

System products

MOVE IT 10

trimless system

MOVE IT 10

surface system

MOVE IT 10

square / round suspended system

MOVE IT 10

square / round pole system
