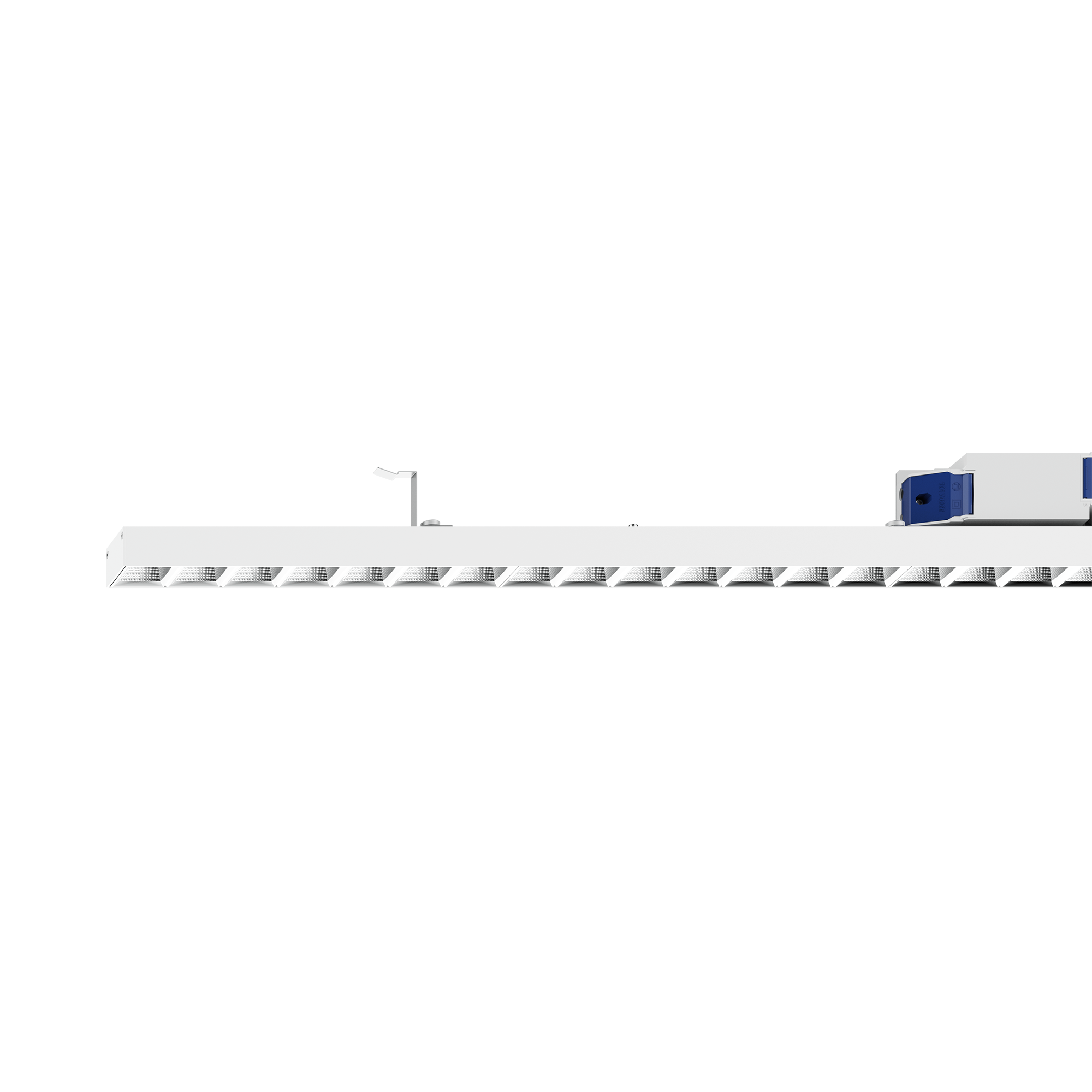

MILA reflector
ceiling system
045-9123137R
Quickinfo
4000 KCRI ≥ 90 / 3 SDCM
UGR < 19 / 65° ≤ 1,500 cd/m²
122 lm/W
L90 / 50000 h
DALI-2
Reflector
IP20 / PC2 / 220-240 V
Colour
Reflector
General
- Ceiling
- Recessed
- white
- Reflector chrome
- RAL 9016 1
- 3280 lm/m
- IP20
- 3280 lm
LED
- 4000 K
- CRI ≥ 90
- L90 / 50000 h
- initial MacAdam ≤ 3 SDCM
- Rg: 99
- Rf: 92
- R{1-15}: 90
- MR 0.81
- MDER 0.74
Optical
- Reflector
- symmetric
- UGR < 19
- ≥65° <1500 cd/m²
- ≤ 1.0 2
- SVM ≤ 0.4 2
Electrical
- DALI-2
- 220-240 V
- system 26.8 W
- PC2
- system 122 lm/W3
- 1 DALI Addr.
- 27 W/m
Physical
- length 1004 mm
- width 40 mm
- height 86 mm
- 5.5 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Luminaire housing made of extruded aluminium profile; angular design; for continuous lighting systems; light-tight end caps in aluminium; surface white powder coated; suitable for installation in the HAUFE louvre ceiling system; extruded profile for improved thermal management; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; high gloss reflector with faceted design; Reflector chrome; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 1500 cd/m²; degree of protection IP20; PC2; 220-240 V; incl. DALI-2 converter; converter flexible positionable on the luminaire profile; converter suitable for through-wiring; accessories are listed separately; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
