MILA microprismatic ceiling system;MILA opal ceiling system

MILA opal

ceiling system

045-9022037 006-4207510H

Quickinfo

3000 K
CRI ≥ 90 / 3 SDCM
104 lm/W
L90 / 50000 h
DALI-2
High Performance Opal
IP20 / PC2 / 220-240 V

Colour

General

  • Ceiling
  • Recessed
  • white
  • RAL 9016 1
  • 2340 lm/m
  • IP20
  • 1750 lm

LED

  • 3000 K
  • CRI ≥ 90
  • L90 / 50000 h
  • initial MacAdam ≤ 3 SDCM
  • Rg: 99
  • Rf: 91
  • R{1-15}: 89
  • MR 0.61
  • MDER 0.55

Optical

  • High Performance Opal
  • opal (lambertsch)
  • PstLM ≤ 1.0 2
  • SVM ≤ 0.4 2

Electrical

  • DALI-2
  • 220-240 V
  • system 16.9 W
  • PC2
  • system 104 lm/W3
  • 23 W/m

Physical

  • length 750 mm
  • width 38 mm
  • height 77 mm
  • 5.5 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B16
C10
C16

Number of Fixtures

18
30
23
36
1 RAL code 2 Value of containing product at full load (undimmed) 3 incl. optical losses and the efficiency of the operating device (converter)

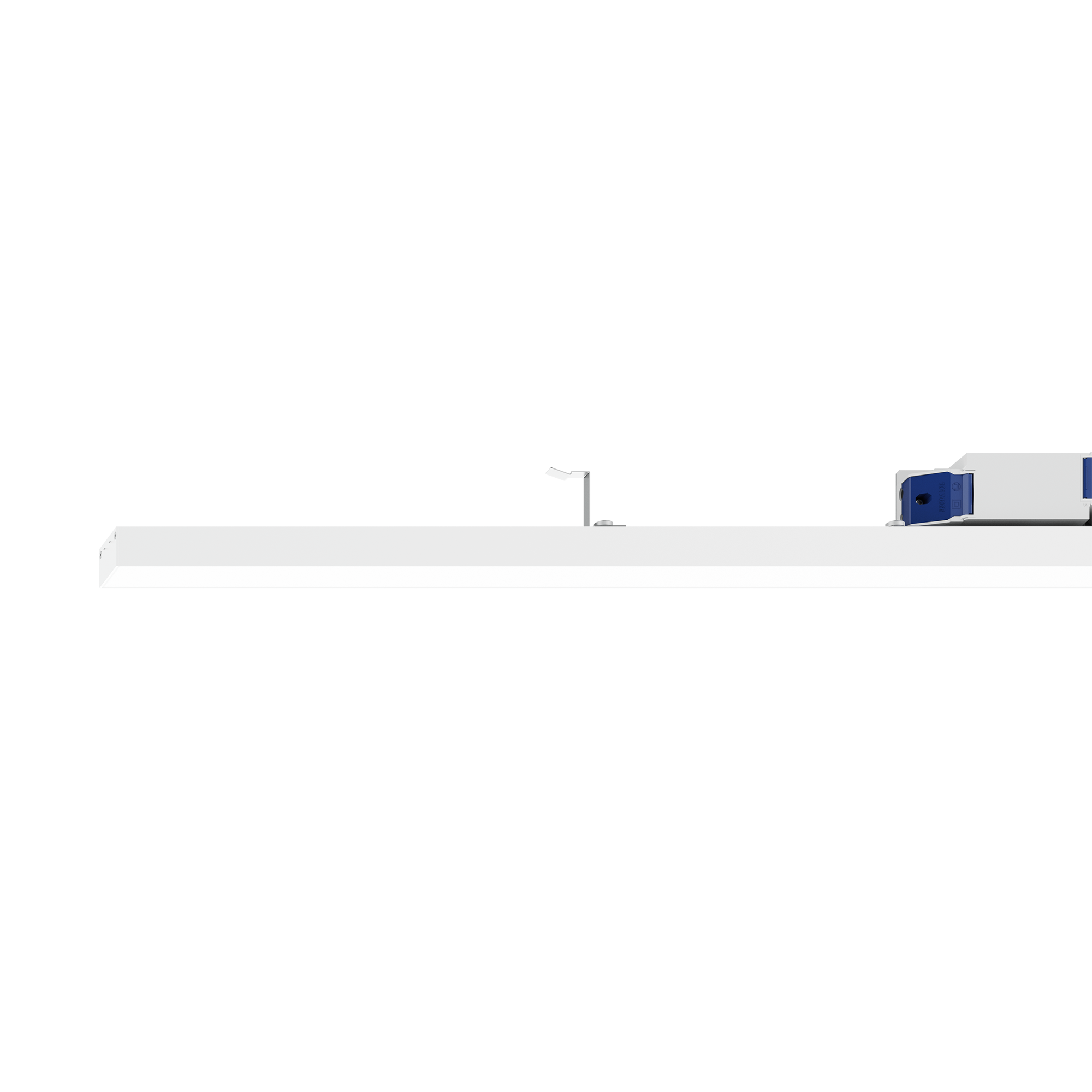

Luminaire housing made of extruded aluminium profile; angular design; for continuous lighting systems; light-tight end caps in aluminium (available as an accessory); surface white powder coated; suitable for installation in the HAUFE louvre ceiling system; extruded profile for improved thermal management; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; HPO (High Performance Opal) cover for uniform illumination; degree of protection IP20; PC2; 220-240 V; incl. DALI-2 converter; converter flexible positionable on the luminaire profile; converter suitable for through-wiring; accessories are listed separately; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
