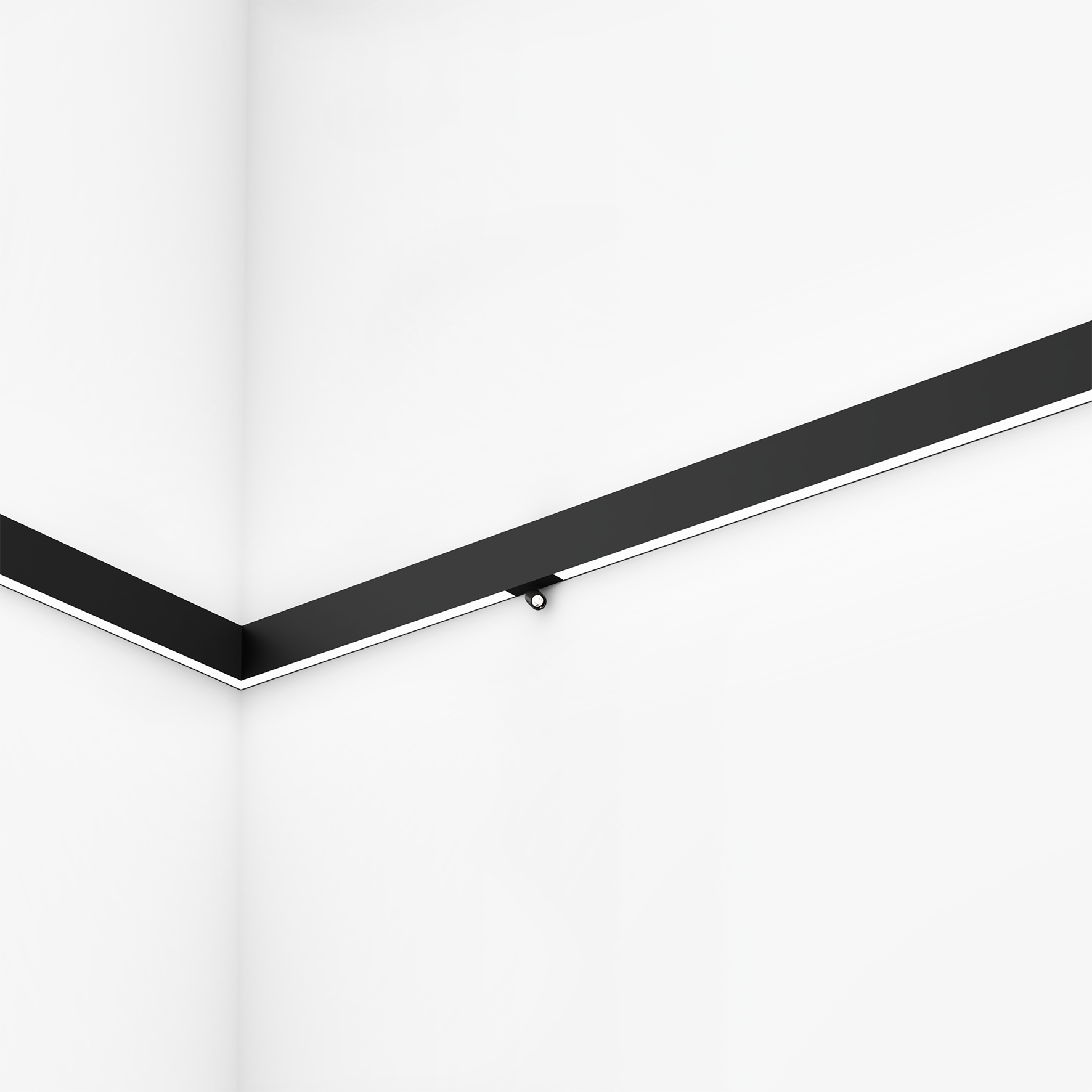

LINEA inner corner opal / asymmetric
wall system
058-6111638AA
Quickinfo
4000 KCRI ≥ 90 / 3 SDCM
1,940 lm/↑ 2,310 lm
121 lm/W
L85 / 50000 h
DALI-2
High Performance Opal / Asymmetric
IP20 / PC1 220-240V
Colour
General
- Ceiling / Wall
- Surface
- black
- RAL9005 1
- 3520 lm/m
- IP20
- indirect 2310 lm
- direct 1940 lm
- total 4250 lm
LED
- 4000 K
- CRI ≥ 90
- L85 / 50000 h
- photobio. safety RG 0 - no Risk
- initial MacAdam ≤ 3 SDCM
- Rg: 98
- Rf: 90
- R{1-15}: 88
- MR 0.76
- MDER 0.69
Optical
- High Performance Opal / Asymmetric
- asymmetric
- ≤ 1.0 2
- SVM ≤ 0.4 2
Electrical
- DALI-2
- system 35 W
- PC1 220-240V
- system 121 lm/W3
- 29 W/m
Physical
- length 633 mm
- width 633 mm
- height 100 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Light fitting and front cover made of extruded aluminium profile; angular design; 90° corner element - inner corner; for lighting systems; no visible screws; surface black powder coated; suitable for wall mounting; homogeneous wall or ceiling illumination through uniform direct/indirect light distribution; direct light component: HPO (High Performance Opal) cover for uniform illumination; indirect light component: with specially computed, asymmetrical lens for homogeneous lighting intensity (installation optionally for floor or ceiling illumination); light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 85% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; degree of protection IP20; PC1 220-240V; photobiological safety according to IEC 62471 risk group RG 0 - no Risk; incl. DALI-2 converter; accessories are listed separately; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
