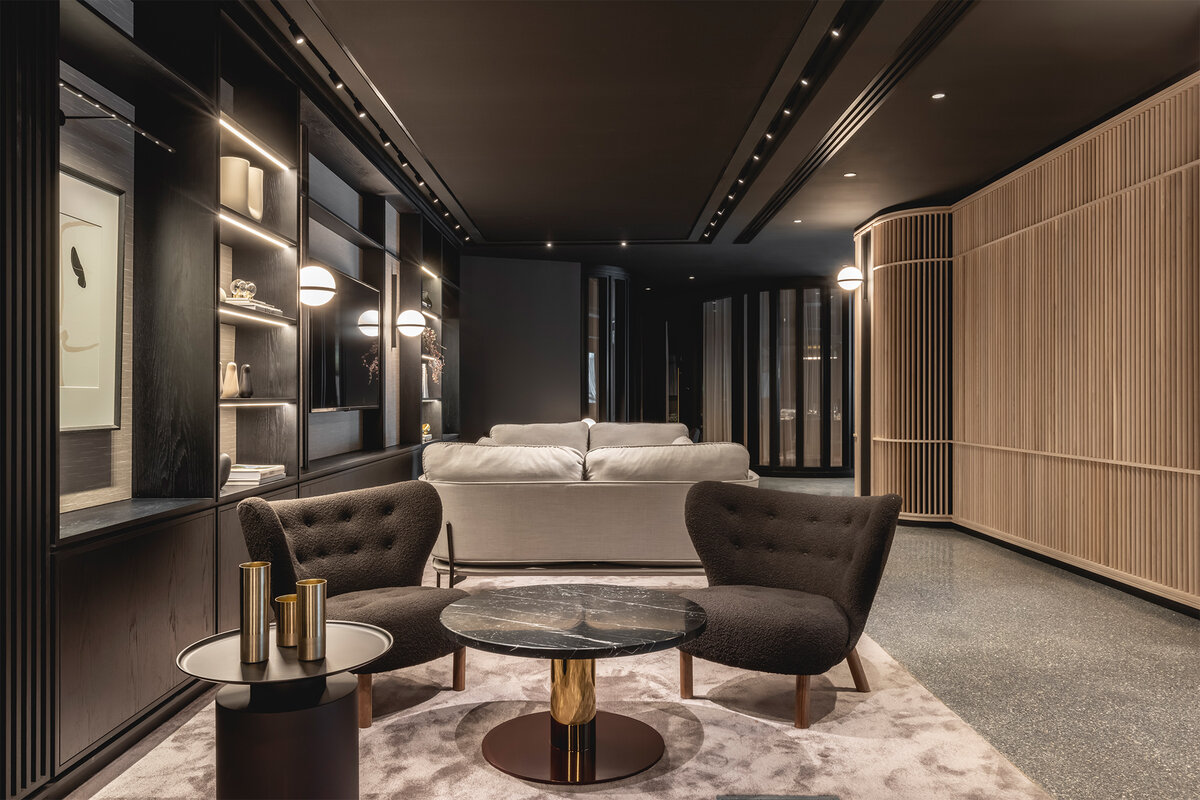

Deansgate Square Main Concierge
Deansgate Square Main Concierge

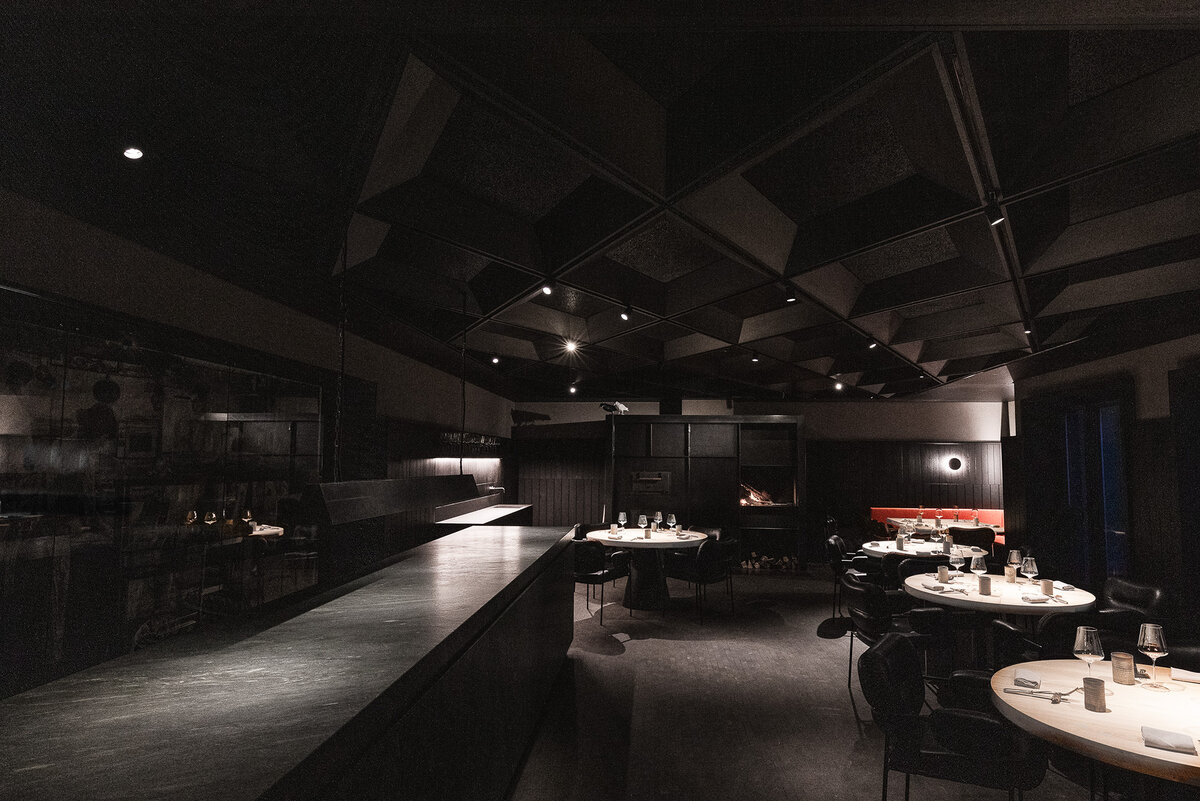

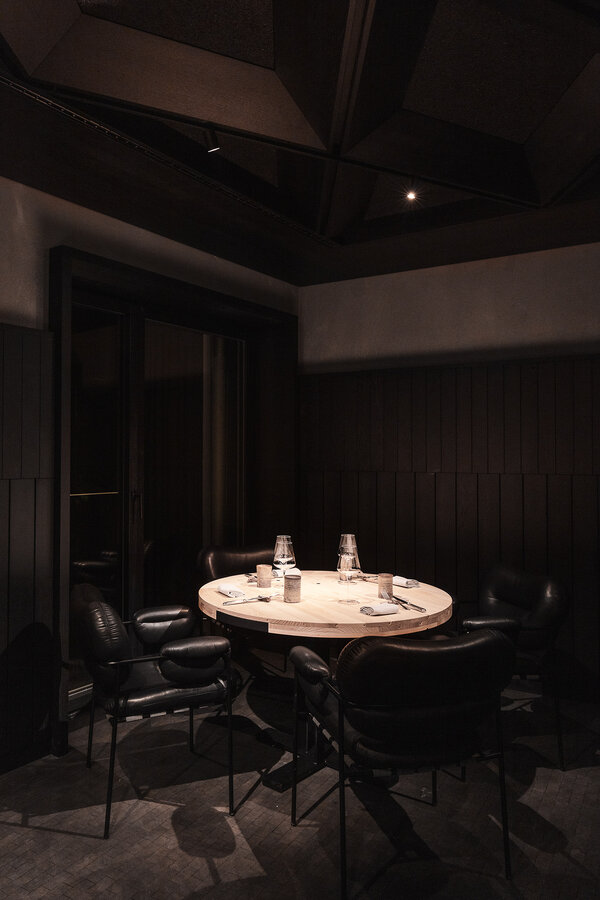

Hotel & Restaurant Mühltalhof
Hotel & Restaurant Mühltalhof

JUST 32 FOCUS

MOVE IT 25

Quickinfo

2700 K, 3000 K, 4000 K
CRI ≥ 90 / 2 SDCM
up to 103 lm/W
L80 / 50000 h
DALI-2 single control, non DIM
IP20 / PC3 / 48 V

Colour

    • Products and codes
    Discover family

    Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    Download all
    • 3DS
    • DWG - 3D
    • Revit BIM data

    Description

    Cylindrical spotlight made of aluminium; spotlight can be installed and moved without tools by means of magnetic holders+locking; spotlight head rotates 360° and tilts 90°; surface powder coated; COB (Chip on Board) technology for maximum efficiency; no multiple shadows; energy-efficient LEDs with very good colour rendering; good glare reduction due to recessed light point plane; incl. high quality plano-convex glass lens; precise object focusing through adjustable lens; adjustable beam angle of 17-43°; focusing by means of patented slider on the spotlight head; optical attachments available as accessories; hot plug protection

    Products and codes

    Filter
    58
    lm/W
    78
    lm/W
    320
    lm
    429
    lm
    0.52
    0.8
    0.47
    0.72

    Colour

    • JUST 32 FOCUS MOVE IT 25

    JUST 32 FOCUS MOVE IT 25

    JUST 32 FOCUS MOVE IT 25

    Status
    Article number(s)
    Variant
    Type
    Dimming
    beam angle max
    black, 43° focus, 3000 K, fixture 5.5 W, 99 lm/W
    non DIM
    beam angle min
    black, 17° focus, 3000 K, fixture 5.5 W, 99 lm/W
    non DIM
    beam angle max
    black, 43° focus, 3000 K, fixture 5.5 W, 99 lm/W
    DALI-2 single control
    beam angle min
    black, 17° focus, 3000 K, fixture 5.5 W, 99 lm/W
    DALI-2 single control
    beam angle max
    black, 43° focus, 4000 K, fixture 5.5 W, 103 lm/W
    non DIM
    beam angle min
    black, 17° focus, 4000 K, fixture 5.5 W, 103 lm/W
    non DIM
    beam angle max
    black, 43° focus, 4000 K, fixture 5.5 W, 103 lm/W
    DALI-2 single control
    beam angle min
    black, 17° focus, 4000 K, fixture 5.5 W, 103 lm/W
    DALI-2 single control
    beam angle min
    black, 17° focus, 2700 K, fixture 5.5 W, 95 lm/W
    non DIM
    beam angle max
    black, 43° focus, 2700 K, fixture 5.5 W, 95 lm/W
    non DIM
    beam angle min
    black, 17° focus, 2700 K, fixture 5.5 W, 77 lm/W
    DALI-2 single control
    beam angle max
    black, 43° focus, 2700 K, fixture 5.5 W, 77 lm/W
    DALI-2 single control
    JUST 32 FOCUS MOVE IT 25

    JUST 32 FOCUS MOVE IT 25

    JUST 32 FOCUS MOVE IT 25

    Status
    Article number(s)
    Variant
    Type
    Dimming
    beam angle min
    special colours, 17° focus, 3000 K, fixture 5.5 W, 99 lm/W
    non DIM
    beam angle max
    special colours, 43° focus, 3000 K, fixture 5.5 W, 99 lm/W
    non DIM
    beam angle min
    special colours, 17° focus, 3000 K, fixture 5.5 W, 80 lm/W
    DALI-2 single control
    beam angle max
    special colours, 43° focus, 3000 K, fixture 5.5 W, 80 lm/W
    DALI-2 single control
    beam angle min
    special colours, 17° focus, 4000 K, fixture 5.5 W, 83 lm/W
    non DIM
    beam angle max
    special colours, 43° focus, 4000 K, fixture 5.5 W, 83 lm/W
    non DIM
    beam angle max
    special colours, 43° focus, 4000 K, fixture 5.5 W, 103 lm/W
    DALI-2 single control
    beam angle min
    special colours, 17° focus, 4000 K, fixture 5.5 W, 103 lm/W
    DALI-2 single control
    beam angle max
    special colours, 43° focus, 2700 K, fixture 5.5 W, 95 lm/W
    non DIM
    beam angle min
    special colours, 17° focus, 2700 K, fixture 5.5 W, 95 lm/W
    non DIM
    beam angle min
    special colours, 17° focus, 2700 K, fixture 5.5 W, 77 lm/W
    DALI-2 single control
    beam angle max
    special colours, 43° focus, 2700 K, fixture 5.5 W, 77 lm/W
    DALI-2 single control
    JUST 32 FOCUS MOVE IT 25

    JUST 32 FOCUS MOVE IT 25

    JUST 32 FOCUS MOVE IT 25

    Status
    Article number(s)
    Variant
    Type
    Dimming
    beam angle min
    white, 17° focus, 3000 K, fixture 5.5 W, 80 lm/W
    non DIM
    beam angle max
    white, 43° focus, 3000 K, fixture 5.5 W, 80 lm/W
    non DIM
    beam angle min
    white, 17° focus, 3000 K, fixture 5.5 W, 80 lm/W
    DALI-2 single control
    beam angle max
    white, 43° focus, 3000 K, fixture 5.5 W, 80 lm/W
    DALI-2 single control
    beam angle max
    white, 43° focus, 4000 K, fixture 5.5 W, 103 lm/W
    non DIM
    beam angle min
    white, 17° focus, 4000 K, fixture 5.5 W, 103 lm/W
    non DIM
    beam angle max
    white, 43° focus, 4000 K, fixture 5.5 W, 103 lm/W
    DALI-2 single control
    beam angle min
    white, 17° focus, 4000 K, fixture 5.5 W, 103 lm/W
    DALI-2 single control
    beam angle min
    white, 17° focus, 2700 K, fixture 5.5 W, 77 lm/W
    non DIM
    beam angle max
    white, 43° focus, 2700 K, fixture 5.5 W, 77 lm/W
    non DIM
    beam angle max
    white, 43° focus, 2700 K, fixture 5.5 W, 95 lm/W
    DALI-2 single control
    beam angle min
    white, 17° focus, 2700 K, fixture 5.5 W, 95 lm/W
    DALI-2 single control

    Accessories

    System products

    MOVE IT 25 S

    trimless system

    MOVE IT 25 S

    surface / suspended system

    MOVE IT 25 S

    suspended indirect system

    MOVE IT 25

    trimless system

    MOVE IT 25

    surface / suspended system

    MOVE IT 25

    suspended indirect system
