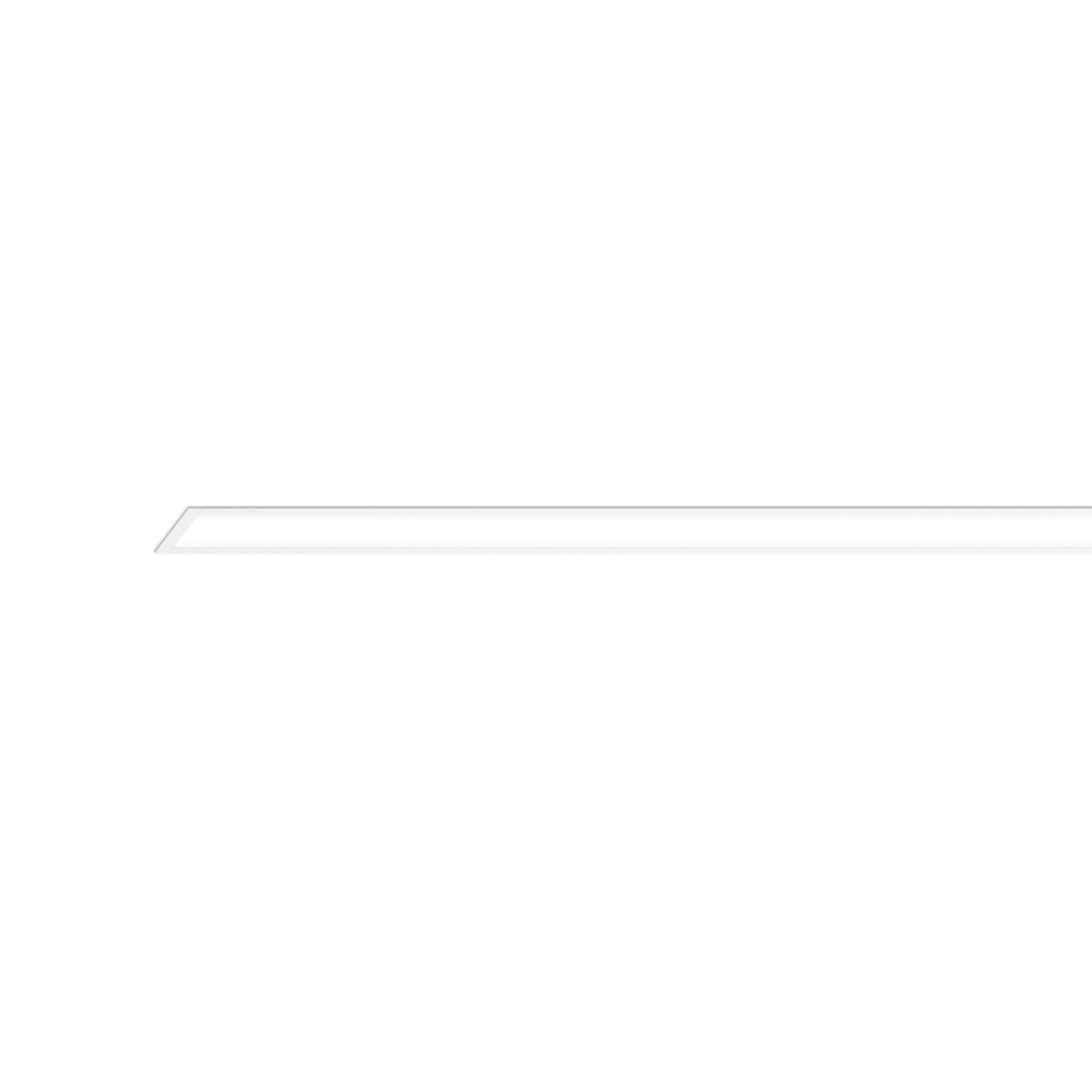

BASO 60 IP54 opal
trim
845-3522537H
Quickinfo
3000 KCRI ≥ 80 / 3 SDCM
122 lm/W
L90 / 50000 h
DALI-2
High Performance Opal
IP54
Colour
General
- Ceiling
- Recessed
- white
- RAL9016 1
- 2210 lm/m
- IP54
- 1320 lm
LED
- 3000 K
- CRI ≥ 80
- L90 / 50000 h
- photobio. safety RG 0 - no Risk
- initial MacAdam ≤ 3 SDCM
- MR 0.54
- MDER 0.49
Optical
- High Performance Opal
- opal (lambertsch)
Electrical
- DALI-2
- system 10.8 W
- PC2 220-240V
- system 122 lm/W2
- 1 DALI Addr.
- 18 W/m
Physical
- trim
- length 619 mm
- width 76 mm
- height 75 mm
- 1.5 kg
Cutout
- length 609 mm
- width 66 mm
- min. ceiling thickness 8 mm
- max. ceiling thickness 20 mm
- recessed depth 100 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Luminaire housing made of extruded aluminium profile; recessed light with wrap around edge; suitable for ceiling thickness of 8-20 mm; surface white powder coated; suitable for wall or ceiling mounting; luminaire profile (end caps come pre-assembled) can be pre-mounted; remaining lamp components mounted without tools; closed light insert made of PMMA, consisting of converter unit and circuit board unit; light inset with screwed-on, thus maintenance-friendly, transparent end cap in PMMA; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; HPO (High Performance Opal) cover for uniform illumination; degree of protection IP54; PC2 220-240V; photobiological safety according to IEC 62471 risk group RG 0 - no Risk; internal wiring in light halogen free; incl. DALI-2 converter; IP 67 socket connector system for easy and sealed electrical connection; light source not replaceable; control gear replaceable by an authorized professional;
