VITA indirect
light inset
099-9326037A
Quickinfo
3000 KCRI ≥ 90 / 3 SDCM
110 lm/W
L80 / 50000 h
DALI-2
Linear Prismatic
IP20
Colour
General
- Wall
- Surface
- white
- RAL9010 1
- IP20
- 7160 lm
LED
- 3000 K
- CRI ≥ 90
- L80 / 50000 h
- photobio. safety RG 0 - no Risk
- initial MacAdam ≤ 3 SDCM
- Rg: 99
- Rf: 91
- R{1-15}: 89
- MR 0.61
- MDER 0.55
Optical
- Linear Prismatic
- asymmetric
- ≤ 1.0 2
- SVM ≤ 0.4 2
Electrical
- DALI-2
- system 65 W
- PC1 220-240V
- system 110 lm/W3
- 1 DALI Addr.
Physical
- length 1006 mm
- width 45 mm
- height 22 mm
- 1.7 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
B10
B13
B16
B20
C10
C13
C16
C20
Number of Fixtures
12
16
20
25
20
27
34
41
1 RAL code
2 Value of containing product at full load (undimmed)
3 incl. optical losses and the efficiency of the operating device (converter)

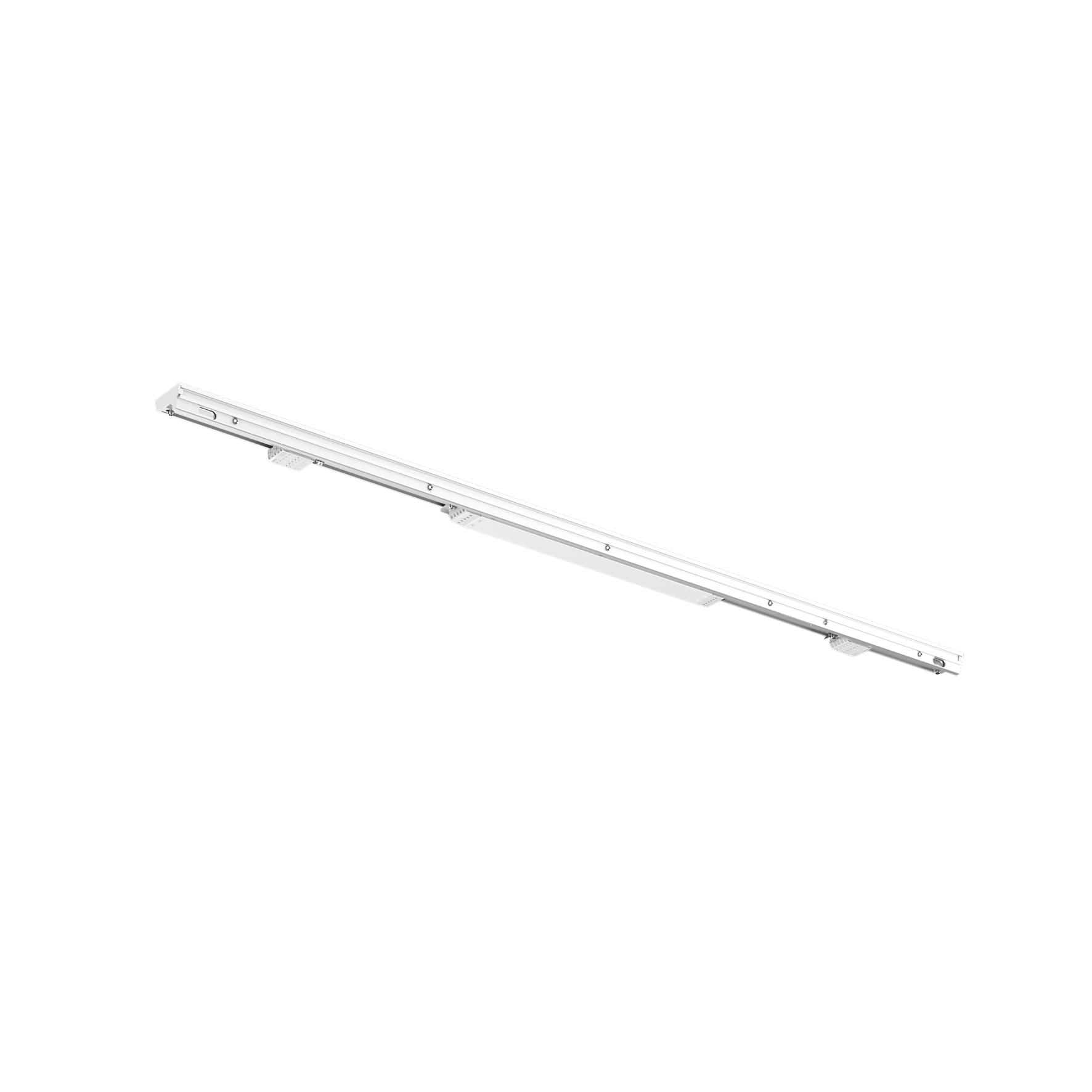

Linear light inset made of aluminium; surface white powder coated; for VITA system module; lighting module with specially computed, asymmetrical high gloss reflector, linear prismatic cover incl. foil; designed for use as indirect light component; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; photobiological safety according to IEC 62471 risk group RG 0 - no Risk; degree of protection IP20; PC1 220-240V; with 2 plug-in terminals for through wiring; incl. DALI-2 converter; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
