VITA direct light inset;LIGHT INSET VITA DIRECT

VITA direct

light inset

099-9317137A

Quickinfo

4000 K
CRI ≥ 90 / 3 SDCM
115 lm/W
L80 / 50000 h
DALI-2
Linear Prismatic
IP20

Colour

General

  • Wall
  • Surface
  • white
  • RAL9010 1
  • IP20
  • 8970 lm

LED

  • 4000 K
  • CRI ≥ 90
  • L80 / 50000 h
  • photobio. safety RG 0 - no Risk
  • initial MacAdam ≤ 3 SDCM
  • Rg: 98
  • Rf: 90
  • R{1-15}: 88
  • MR 0.76
  • MDER 0.69

Optical

  • Linear Prismatic
  • asymmetric
  • PstLM ≤ 1.0 2
  • SVM ≤ 0.4 2

Electrical

  • DALI-2
  • system 78 W
  • PC1 220-240V
  • system 115 lm/W3
  • 1 DALI Addr.

Physical

  • length 1206 mm
  • width 45 mm
  • height 22 mm
  • 3 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B13
B16
B20
C10
C13
C16
C20

Number of Fixtures

12
16
20
25
20
27
34
41
1 RAL code 2 Value of containing product at full load (undimmed) 3 incl. optical losses and the efficiency of the operating device (converter)

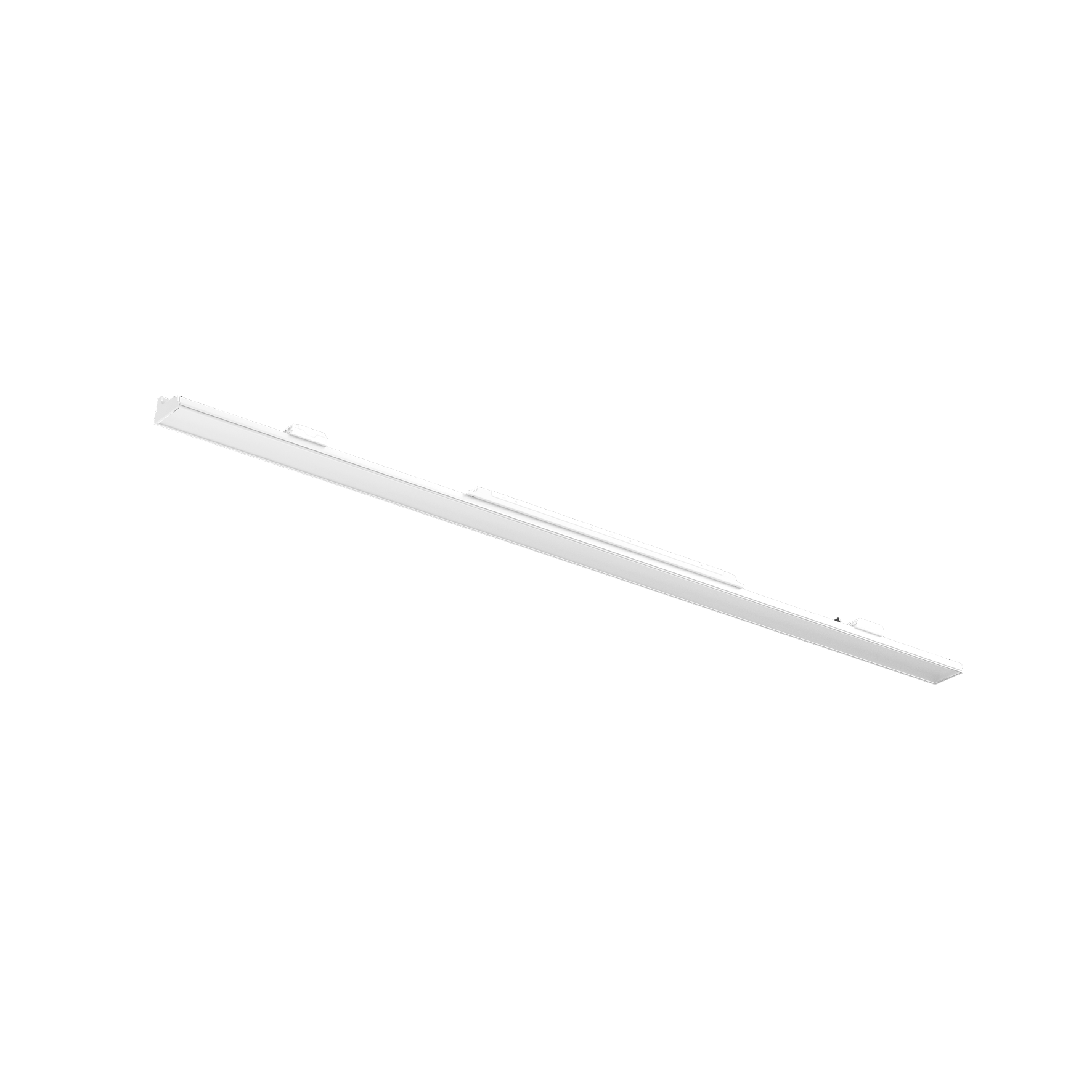

Linear light inset made of aluminium; surface white powder coated; for VITA system module; lighting module with specially computed, asymmetrical high gloss reflector, linear prismatic cover incl. foil; designed for use as direct light component; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; photobiological safety according to IEC 62471 risk group RG 0 - no Risk; degree of protection IP20; PC1 220-240V; with 2 plug-in terminals for through wiring; incl. DALI-2 converter; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
