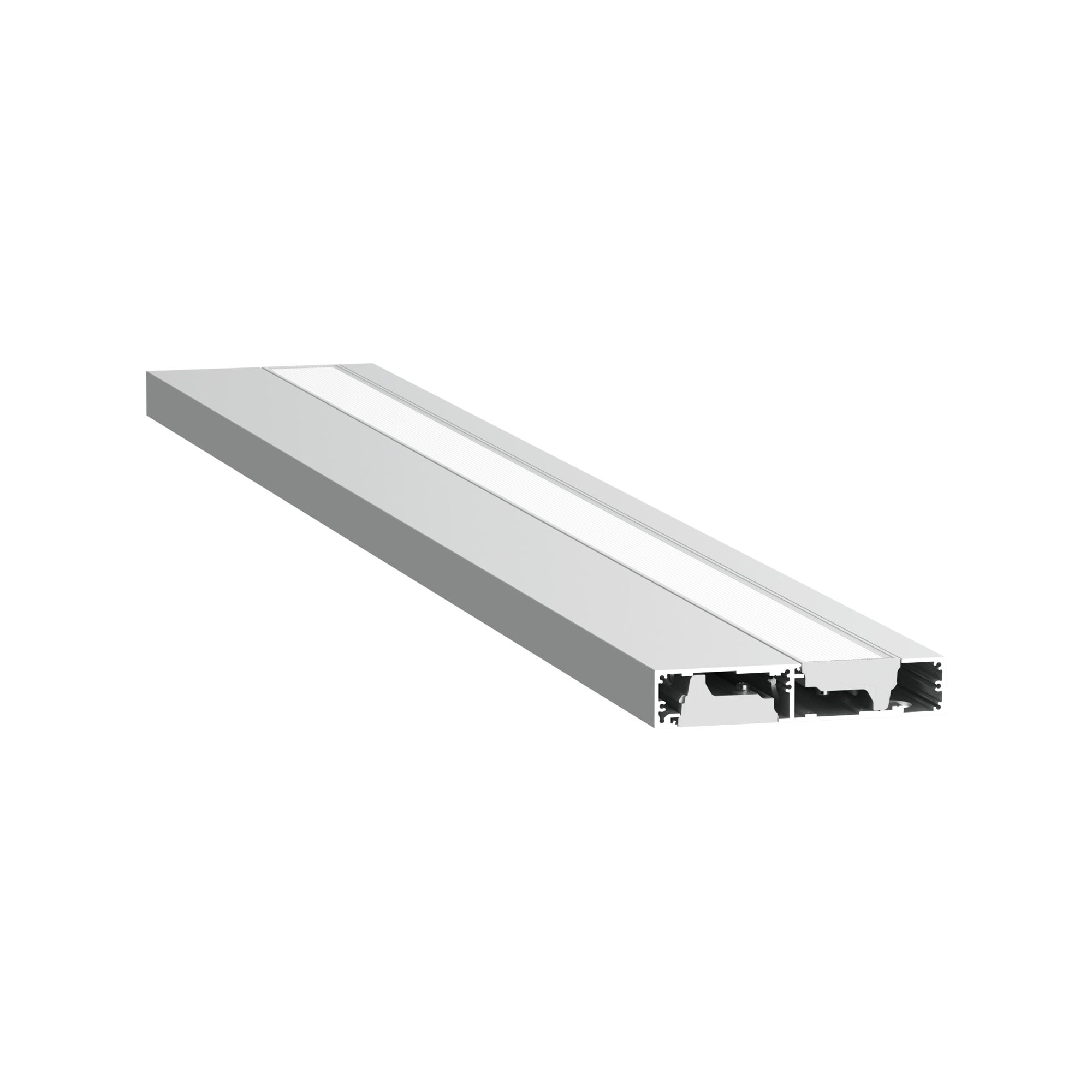

VITA direct/indirect module
wall system
099-9912616 099-9316037A 099-9326037A
Quickinfo
3000 KCRI ≥ 90 / 3 SDCM
7,210 lm/↑ 7,210 lm
117 lm/W
L80 / 50000 h
DALI-2
Linear Prismatic
IP20
Colour
Mounting set
General
- Wall
- Surface
- anodised aluminium
- white
- IP20
- indirect 7210 lm
- direct 7210 lm
- total 14420 lm
LED
- 3000 K
- CRI ≥ 90
- L80 / 50000 h
- photobio. safety RG 0 - no Risk
- initial MacAdam ≤ 3 SDCM
- Rg: 99
- Rf: 91
- R{1-15}: 89
- MR 0.61
- MDER 0.55
Optical
- Linear Prismatic
- asymmetric
- ≤ 1.0 1
- SVM ≤ 0.4 1
Electrical
- DALI-2
- system 123 W
- PC1 220-240V
- system 117 lm/W2
- 2 DALI Addr.
Physical
- length 1007 mm
- width 130 mm
- height 25 mm
- 1.7 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Luminaire housing made of extruded aluminium profile; angular design; no visible screws; for lighting systems; surface anodised aluminium; suitable for wall mounting; equipped with two light insets made of aluminium; surface white powder coated; direct/indirect illumination characteristic; lighting modules with specially computed, asymmetrical high gloss reflectors, linear prismatic covers incl. foil; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; photobiological safety according to IEC 62471 risk group RG 0 - no Risk; degree of protection IP20; PC1 220-240V; with 4 plug-in terminals for through wiring; incl. DALI-2 converter; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
