TUBO 60 suspended
TUBO 60 suspended

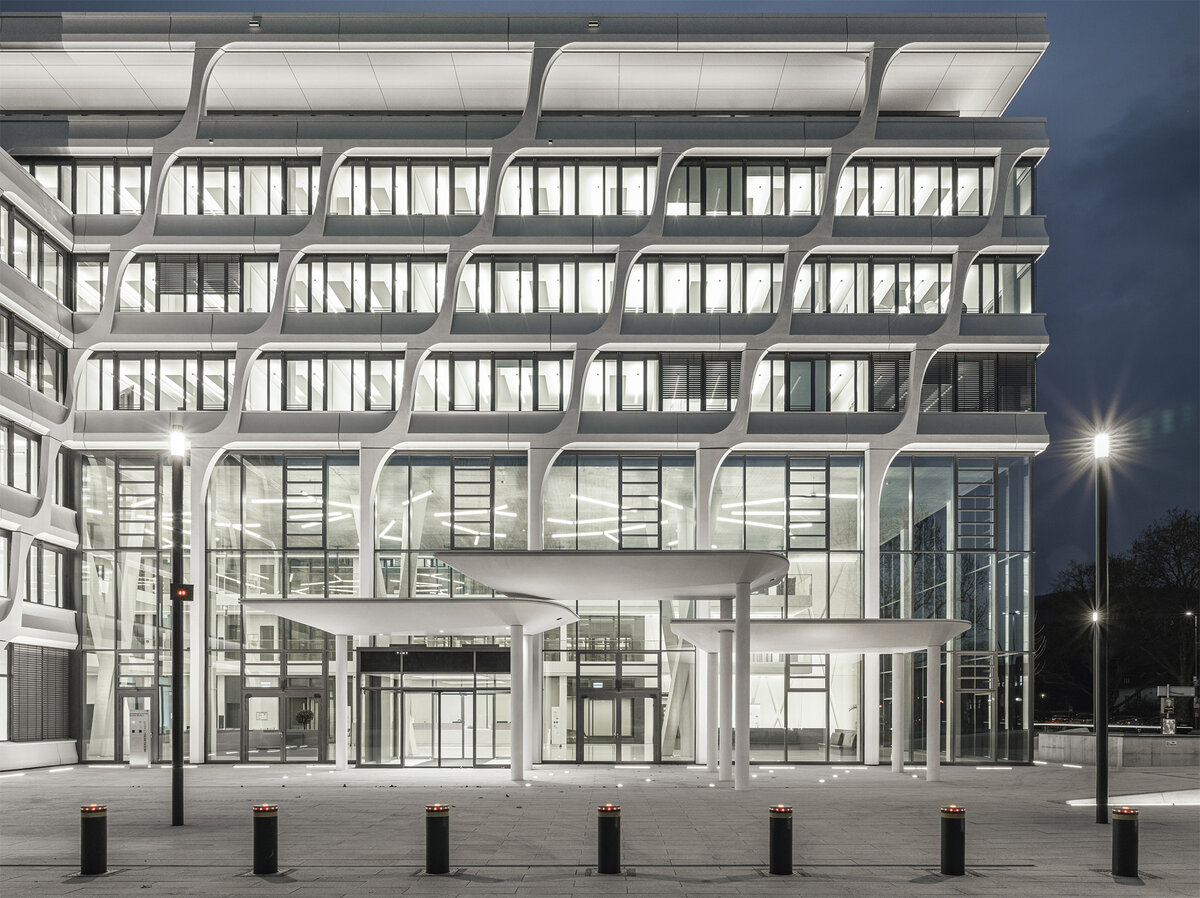

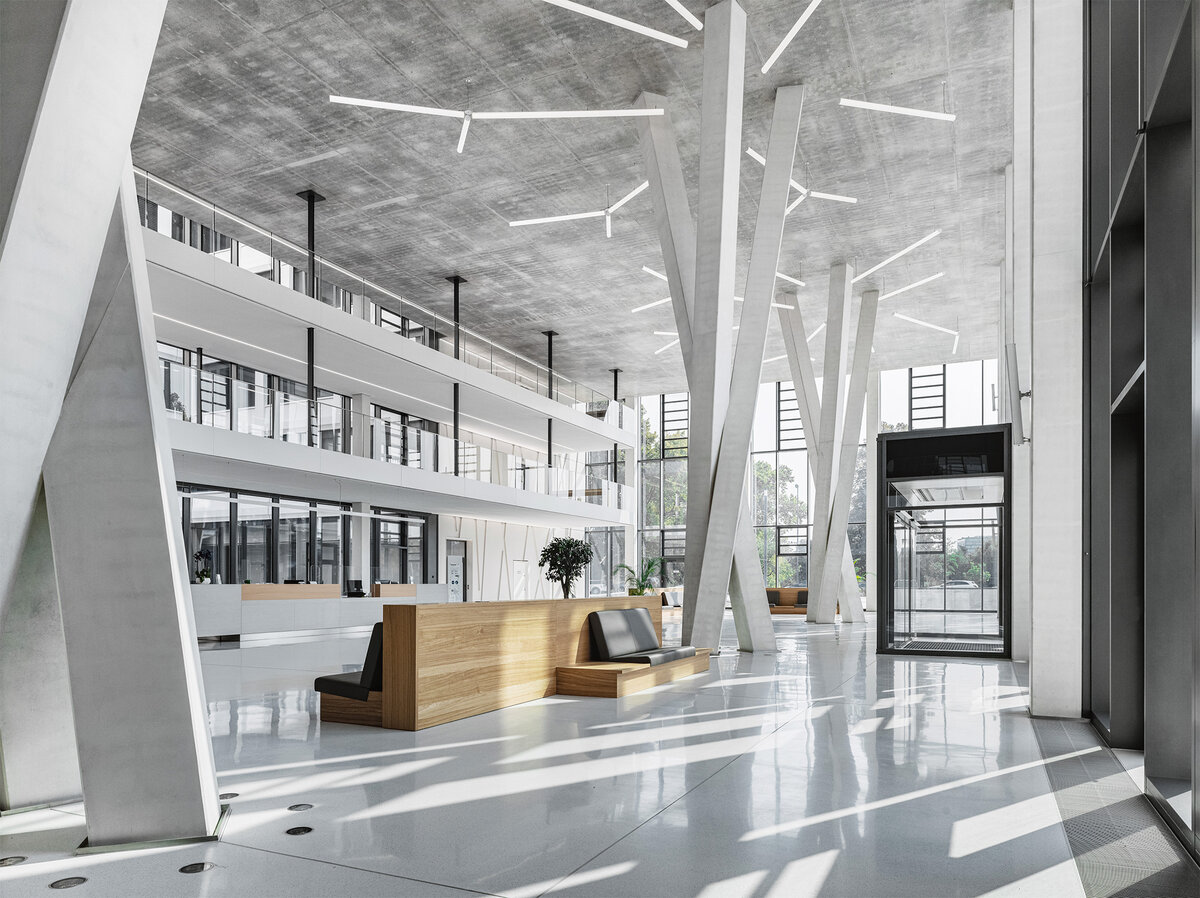

Konzernzentrale Cement
Konzernzentrale Cement

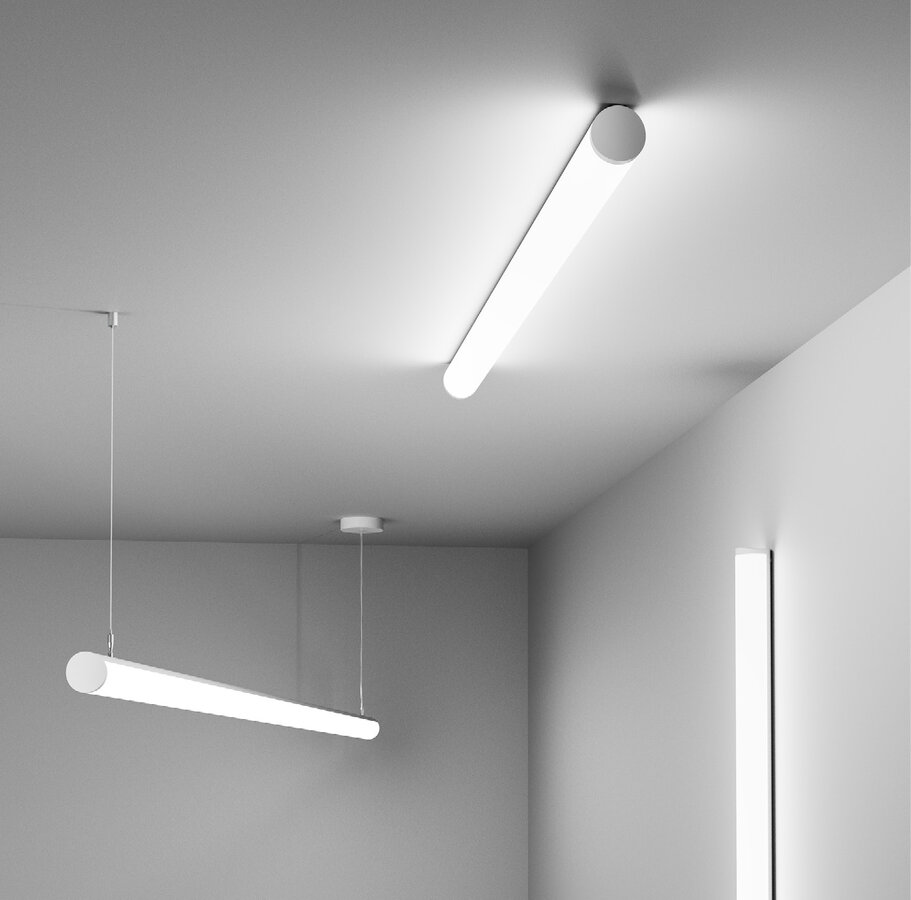

Mounting options

TUBO 60

suspended

Quickinfo

3000 K, 4000 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM
up to 3,060 lm/m
up to 133 lm/W
L90 / 50000 h
DALI-2
High Performance Opal
IP20

Colour

    • Products and codes
    Discover family

    Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    Download all
    • 3DS
    • DWG - 3D
    • Revit BIM data

    Description

    Supporting profile in extruded aluminium; end cap in aluminium; surface powder coated; suspended luminaire with cable suspension; height adjustment without tools; incl. feeder cable; light control via high quality lens system for maximum, homogeneous illumination; completely homogeneously illuminated, cylindrical HPO (High Performance Opal) cover; energy-efficient LEDs with very good colour rendering

    driver integrated

    system solution

    uniform illumination

    Products and codes

    Filter
    98
    lm/W
    133
    lm/W
    1370
    lm
    7170
    lm
    13.9
    W
    54
    W
    0.56
    0.81
    0.51
    0.74

    Colour

    • TUBO 60 suspended

    TUBO 60 suspended

    TUBO 60 suspended

    Status
    Article number(s)
    Type
    Dimming
    black, 3000 K, CRI ≥ 90, system 13.9 W, 99 lm/W, length 625 mm
    DALI-2
    black, 4000 K, CRI ≥ 90, system 13.9 W, 106 lm/W, length 625 mm
    DALI-2
    black, 3000 K, CRI ≥ 80, system 13.9 W, 114 lm/W, length 625 mm
    DALI-2
    black, 4000 K, CRI ≥ 80, system 13.9 W, 130 lm/W, length 625 mm
    DALI-2
    black, 3000 K, CRI ≥ 90, system 27.9 W, 98 lm/W, length 1,210 mm
    DALI-2
    black, 4000 K, CRI ≥ 90, system 27.9 W, 106 lm/W, length 1,210 mm
    DALI-2
    black, 3000 K, CRI ≥ 80, system 27.9 W, 114 lm/W, length 1,210 mm
    DALI-2
    black, 4000 K, CRI ≥ 80, system 27.9 W, 130 lm/W, length 1,210 mm
    DALI-2
    black, 3000 K, CRI ≥ 90, system 34 W, 100 lm/W, length 1,500 mm
    DALI-2
    black, 4000 K, CRI ≥ 90, system 34 W, 108 lm/W, length 1,500 mm
    DALI-2
    black, 3000 K, CRI ≥ 80, system 34 W, 116 lm/W, length 1,500 mm
    DALI-2
    black, 4000 K, CRI ≥ 80, system 34 W, 132 lm/W, length 1,500 mm
    DALI-2
    black, 3000 K, CRI ≥ 90, system 54 W, 101 lm/W, length 2,375 mm
    DALI-2
    black, 4000 K, CRI ≥ 90, system 54 W, 109 lm/W, length 2,375 mm
    DALI-2
    black, 3000 K, CRI ≥ 80, system 54 W, 117 lm/W, length 2,375 mm
    DALI-2
    black, 4000 K, CRI ≥ 80, system 54 W, 133 lm/W, length 2,375 mm
    DALI-2
    TUBO 60 suspended

    TUBO 60 suspended

    TUBO 60 suspended

    Status
    Article number(s)
    Type
    Dimming
    white, 3000 K, CRI ≥ 90, system 13.9 W, 99 lm/W, length 625 mm
    DALI-2
    white, 4000 K, CRI ≥ 90, system 13.9 W, 106 lm/W, length 625 mm
    DALI-2
    white, 3000 K, CRI ≥ 80, system 13.9 W, 114 lm/W, length 625 mm
    DALI-2
    white, 4000 K, CRI ≥ 80, system 13.9 W, 130 lm/W, length 625 mm
    DALI-2
    white, 3000 K, CRI ≥ 90, system 27.9 W, 98 lm/W, length 1,210 mm
    DALI-2
    white, 4000 K, CRI ≥ 90, system 27.9 W, 106 lm/W, length 1,210 mm
    DALI-2
    white, 3000 K, CRI ≥ 80, system 27.9 W, 114 lm/W, length 1,210 mm
    DALI-2
    white, 4000 K, CRI ≥ 80, system 27.9 W, 130 lm/W, length 1,210 mm
    DALI-2
    white, 3000 K, CRI ≥ 90, system 34 W, 100 lm/W, length 1,500 mm
    DALI-2
    white, 4000 K, CRI ≥ 90, system 34 W, 108 lm/W, length 1,500 mm
    DALI-2
    white, 3000 K, CRI ≥ 80, system 34 W, 116 lm/W, length 1,500 mm
    DALI-2
    white, 4000 K, CRI ≥ 80, system 34 W, 132 lm/W, length 1,500 mm
    DALI-2
    white, 3000 K, CRI ≥ 90, system 54 W, 101 lm/W, length 2,375 mm
    DALI-2
    white, 4000 K, CRI ≥ 90, system 54 W, 109 lm/W, length 2,375 mm
    DALI-2
    white, 3000 K, CRI ≥ 80, system 54 W, 117 lm/W, length 2,375 mm
    DALI-2
    white, 4000 K, CRI ≥ 80, system 54 W, 133 lm/W, length 2,375 mm
    DALI-2
