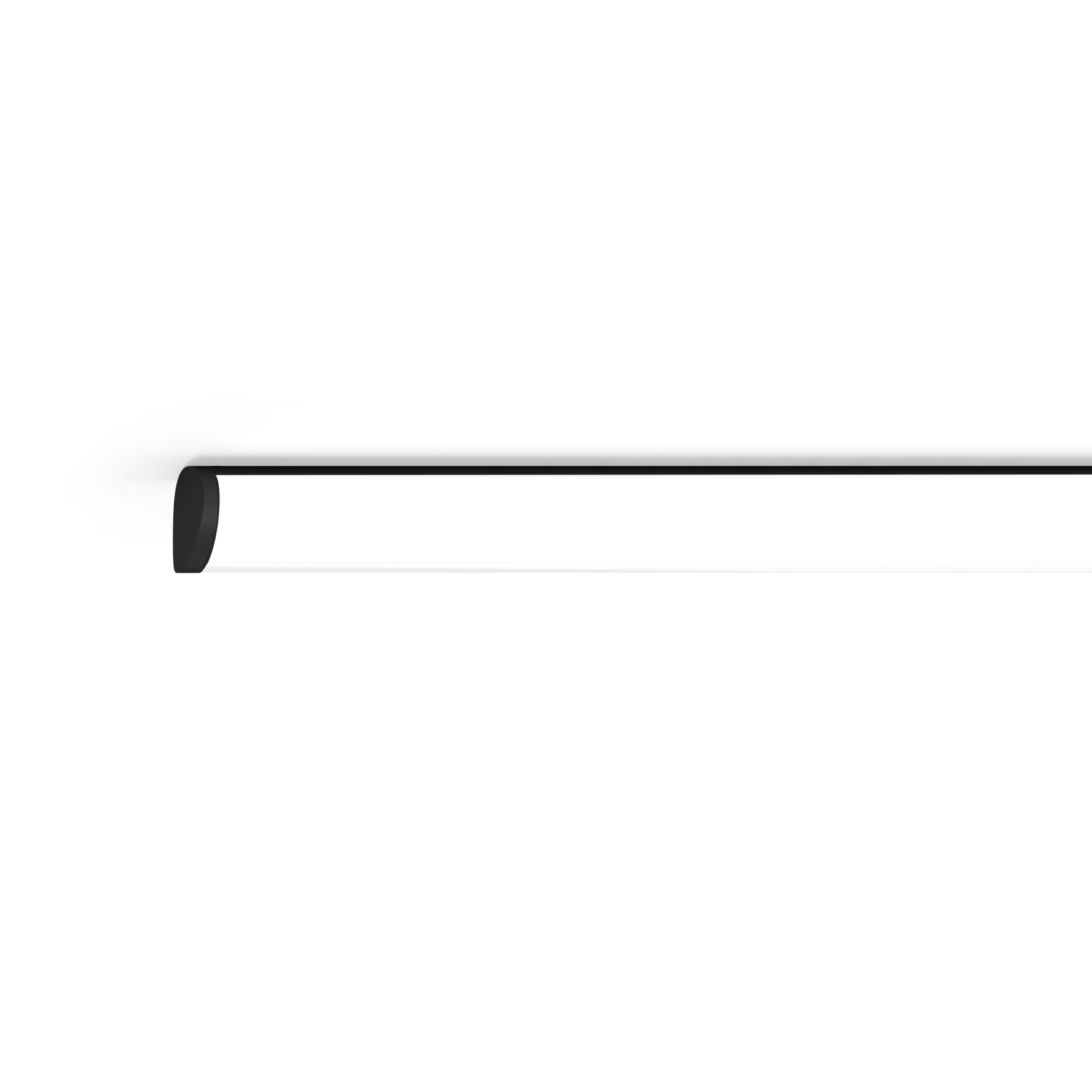

TUBO 60 surface

TUBO 60

surface

058-3114638O

Quickinfo

4000 K
CRI ≥ 80 / 3 SDCM
130 lm/W
L90 / 50000 h
DALI-2
High Performance Opal
IP20

Colour

General

  • Ceiling / Wall
  • Surface
  • black
  • RAL9005 1
  • 3060 lm/m
  • IP20
  • 3620 lm

LED

  • 4000 K
  • CRI ≥ 80
  • L90 / 50000 h
  • photobio. safety RG 0 - no Risk
  • initial MacAdam ≤ 3 SDCM
  • MR 0.72
  • MDER 0.65

Optical

  • High Performance Opal
  • opal (lambertsch)
  • PstLM ≤ 1.0 2
  • SVM ≤ 0.4 2

Electrical

  • DALI-2
  • system 27.9 W
  • PC1 220-240V
  • system 130 lm/W3
  • 1 DALI Addr.
  • 24 W/m

Physical

  • length 1210 mm
  • width 60 mm
  • height 60 mm
  • 3.4 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B13
B16
B20
C10
C13
C16
C20

Number of Fixtures

18
24
30
37
31
40
51
62
1 RAL code 2 Value of containing product at full load (undimmed) 3 incl. optical losses and the efficiency of the operating device (converter)

Carrier profile made of extruded aluminium profile; light-tight end caps in aluminium; converter integrated into luminaire housing; surface black powder coated; suitable for wall or ceiling mounting; easy installation using ceiling clips; light control via high quality lens system for maximum, homogeneous illumination; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; cylindrical cover made of satin PMMA for uniform illumination; with gentle ceiling illumination; degree of protection IP20; PC1 220-240V; photobiological safety according to IEC 62471 risk group RG 0 - no Risk; incl. DALI-2 converter; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
