LENO

semi-recessed

Quickinfo

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM
UGR < 19
up to 137 lm/W
L90 / 50000 h
DALI-2
High Performance Opal, Jut-Out, Microprismatic
IP40, back IP20

Colour

    • Products and codes
    Discover family

    Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    Download all
    • DWG - 3D
    • Revit BIM data

    Description

    Low profile recessed mounted luminaire, 15 mm visible height; suitable for wall or ceiling mounting; suitable for installation in primed or exposed concrete, in plasterboard constructions and in plastered walls or ceilings; surface powder coated; fall-safe light inset made of extruded aluminium profile, can be inserted in the canal without tools by magnetic holders; side coupled light, directed downwards by LGP body (Light Guiding Prism) and highly efficient reflector; homogeneously illuminated, satinised (flush or jut-out) or microprismatic PMMA cover; energy-efficient LEDs with very good colour rendering

    DiiA® standards 251, 252, 253

    system solution

    microprismatic UGR ≤ 19

    quick installation

    Products and codes

    Filter
    107
    lm/W
    137
    lm/W
    1160
    lm
    5190
    lm
    10.8
    W
    38
    W
    0.54
    0.72
    0.49
    0.66

    Colour

    • LENO jut-out semi-recessed;LENO jut-out semi-recessed system

    LENO jut-out semi-recessed

    LENO jut-out semi-recessed

    Status
    Article number(s)
    Type
    Dimming

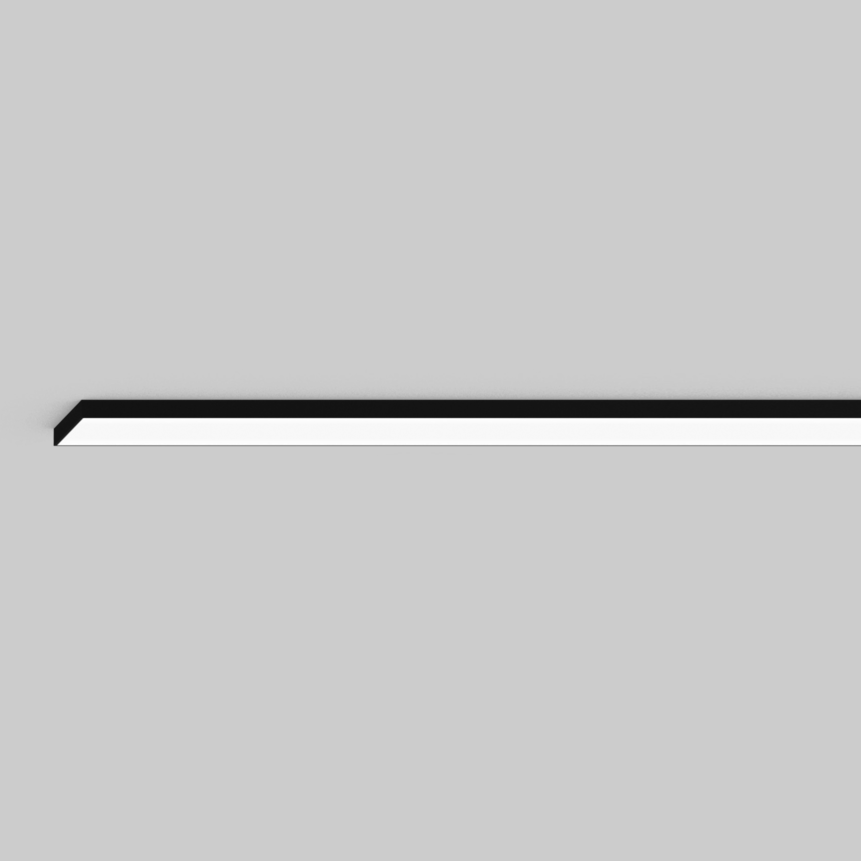

    black, 3000 K, 108 lm/W, length 618 mm
    DALI-2
    black, 4000 K, 115 lm/W, length 618 mm
    DALI-2
    black, 3000 K, 123 lm/W, length 1,226 mm
    DALI-2
    black, 4000 K, 130 lm/W, length 1,226 mm
    DALI-2
    black, 3000 K, 123 lm/W, length 1,835 mm
    DALI-2
    black, 4000 K, 130 lm/W, length 1,835 mm
    DALI-2
    black, 3000 K, 124 lm/W, length 2,443 mm
    DALI-2
    black, 4000 K, 131 lm/W, length 2,443 mm
    DALI-2
    LENO jut-out semi-recessed;LENO jut-out semi-recessed system

    LENO jut-out semi-recessed

    LENO jut-out semi-recessed

    Status
    Article number(s)
    Type
    Dimming

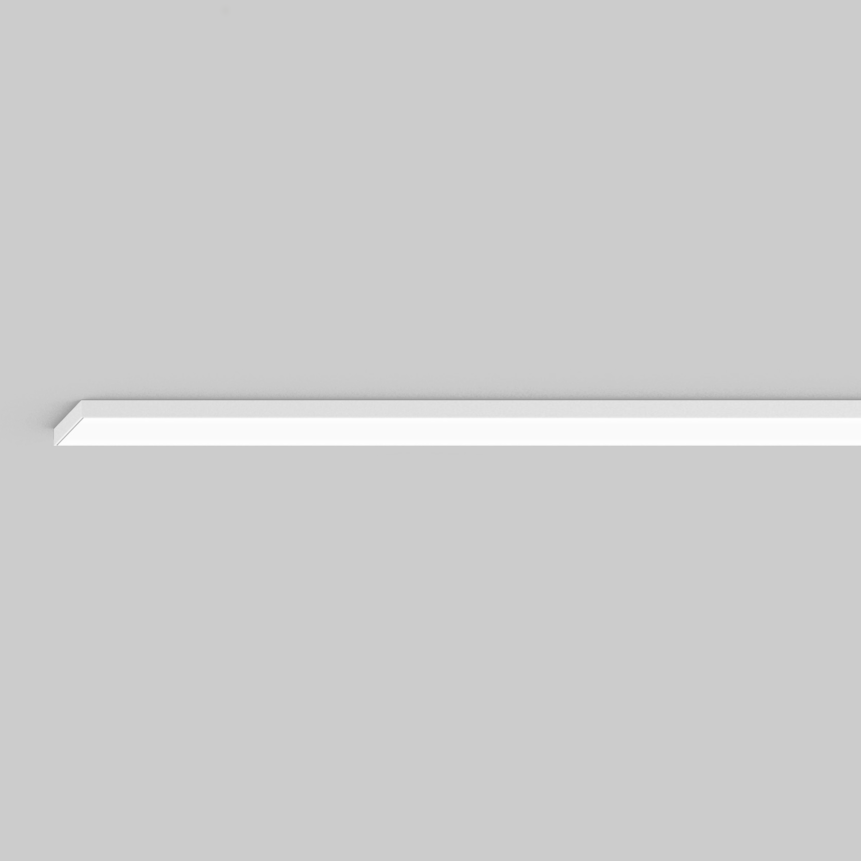

    white, 3000 K, 108 lm/W, length 618 mm
    DALI-2
    white, 4000 K, 115 lm/W, length 618 mm
    DALI-2
    white, 3000 K, 123 lm/W, length 1,226 mm
    DALI-2
    white, 4000 K, 130 lm/W, length 1,226 mm
    DALI-2
    white, 3000 K, 123 lm/W, length 1,835 mm
    DALI-2
    white, 4000 K, 130 lm/W, length 1,835 mm
    DALI-2
    white, 3000 K, 124 lm/W, length 2,443 mm
    DALI-2
    white, 4000 K, 131 lm/W, length 2,443 mm
    DALI-2
    LENO microprismatic semi-recessed;LENO opal semi-recessed;LENO microprismatic semi-recessed system;LENO opal semi-recessed system

    LENO microprismatic semi-recessed

    LENO microprismatic semi-recessed

    Status
    Article number(s)
    Type
    Dimming
    black, 3000 K, 107 lm/W, length 618 mm
    DALI-2
    black, 4000 K, 114 lm/W, length 618 mm
    DALI-2
    black, 3000 K, 121 lm/W, length 1,226 mm
    DALI-2
    black, 4000 K, 128 lm/W, length 1,226 mm
    DALI-2
    black, 3000 K, 122 lm/W, length 1,835 mm
    DALI-2
    black, 4000 K, 129 lm/W, length 1,835 mm
    DALI-2
    black, 3000 K, 122 lm/W, length 2,443 mm
    DALI-2
    black, 4000 K, 129 lm/W, length 2,443 mm
    DALI-2
    LENO microprismatic semi-recessed;LENO opal semi-recessed;LENO microprismatic semi-recessed system;LENO opal semi-recessed system

    LENO microprismatic semi-recessed

    LENO microprismatic semi-recessed

    Status
    Article number(s)
    Type
    Dimming
    white, 3000 K, 107 lm/W, length 618 mm
    DALI-2
    white, 4000 K, 114 lm/W, length 618 mm
    DALI-2
    white, 3000 K, 121 lm/W, length 1,226 mm
    DALI-2
    white, 4000 K, 128 lm/W, length 1,226 mm
    DALI-2
    white, 3000 K, 122 lm/W, length 1,835 mm
    DALI-2
    white, 4000 K, 129 lm/W, length 1,835 mm
    DALI-2
    white, 3000 K, 122 lm/W, length 2,443 mm
    DALI-2
    white, 4000 K, 129 lm/W, length 2,443 mm
    DALI-2
    LENO microprismatic semi-recessed;LENO opal semi-recessed;LENO microprismatic semi-recessed system;LENO opal semi-recessed system

    LENO opal semi-recessed

    LENO opal semi-recessed

    Status
    Article number(s)
    Type
    Dimming
    black, 3000 K, 113 lm/W, length 618 mm
    DALI-2
    black, 4000 K, 120 lm/W, length 618 mm
    DALI-2
    black, 3000 K, 128 lm/W, length 1,226 mm
    DALI-2
    black, 4000 K, 136 lm/W, length 1,226 mm
    DALI-2
    black, 3000 K, 128 lm/W, length 1,835 mm
    DALI-2
    black, 4000 K, 136 lm/W, length 1,835 mm
    DALI-2
    black, 3000 K, 129 lm/W, length 2,443 mm
    DALI-2
    black, 4000 K, 137 lm/W, length 2,443 mm
    DALI-2
    LENO microprismatic semi-recessed;LENO opal semi-recessed;LENO microprismatic semi-recessed system;LENO opal semi-recessed system

    LENO opal semi-recessed

    LENO opal semi-recessed

    Status
    Article number(s)
    Type
    Dimming
    white, 3000 K, 113 lm/W, length 618 mm
    DALI-2
    white, 4000 K, 120 lm/W, length 618 mm
    DALI-2
    white, 3000 K, 128 lm/W, length 1,226 mm
    DALI-2
    white, 4000 K, 136 lm/W, length 1,226 mm
    DALI-2
    white, 3000 K, 128 lm/W, length 1,835 mm
    DALI-2
    white, 4000 K, 136 lm/W, length 1,835 mm
    DALI-2
    white, 3000 K, 129 lm/W, length 2,443 mm
    DALI-2
    white, 4000 K, 137 lm/W, length 2,443 mm
    DALI-2
