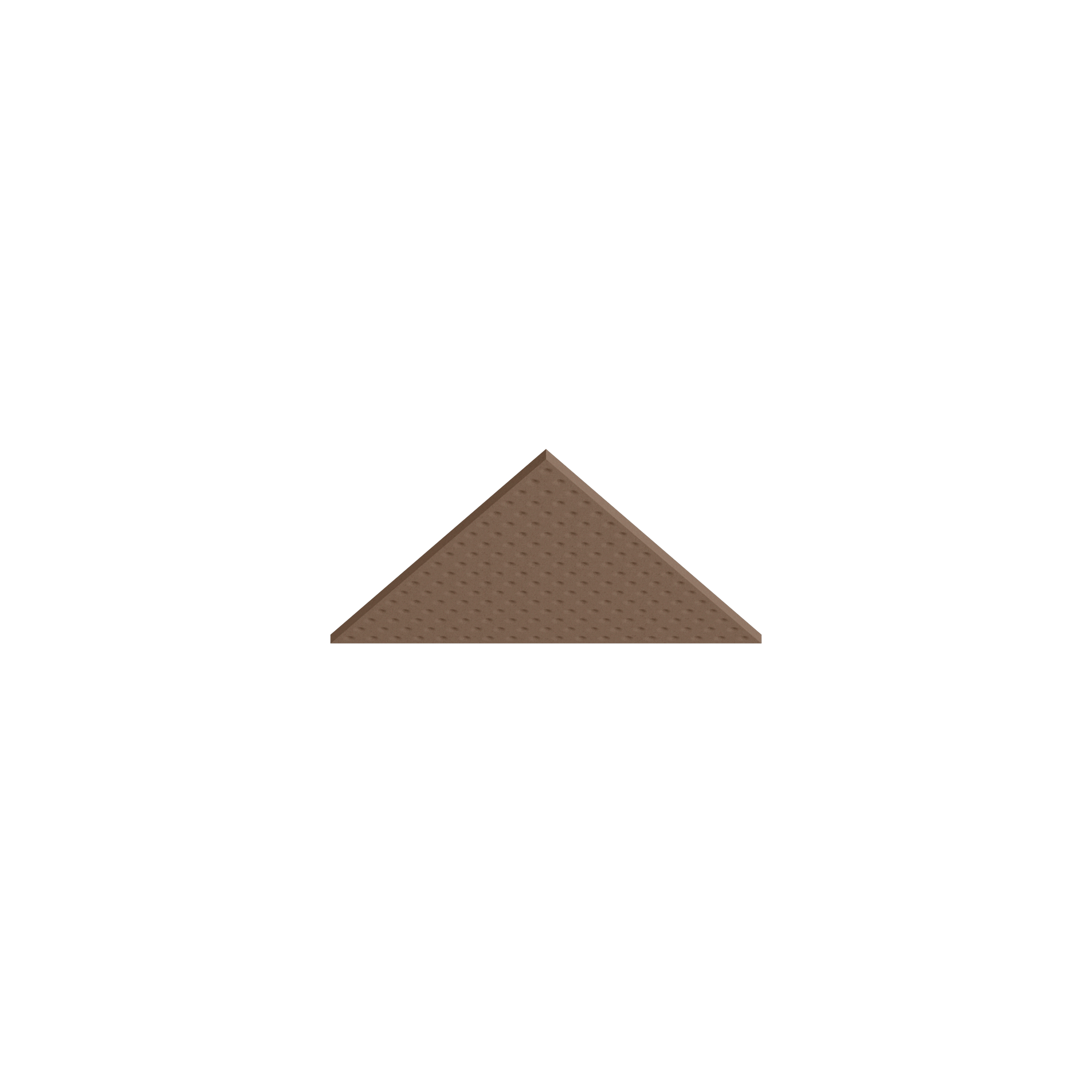

MOVE IT 25 ACOUSTIC triangle inlay

MOVE IT 25 ACOUSTIC triangle

inlay

050-231421S

Quickinfo

PET felt
from recycled material
flame retardant version available

Colour

General

  • Luminaire / Track
  • Mounted
  • limestone

Physical

  • panel only for NODE connector + track 1210 mm
  • length 1195 mm
  • width 1035 mm
  • height 25 mm
  • 6.8 kg

Acoustics

  • Alpha w (αw) up to 1
  • SAC (sound absorption class) up to A
  • NRC up to 1.3
  • SAA up to 1.32
  • Acoustic data calculations based on MOVE IT 25/45 acoustic square grid inlay, cavity 40cm

Equivalent sound absorption area (Aeq)

125 Hz

0.33

250 Hz

0.57

500 Hz

0.73

1000 Hz

0.97

2000 Hz

1.27

4000 Hz

1.33

Acoustic element made of high quality, self-supporting PET felt with sound absorbing properties, consisting of at least 50% post-consumer recycled PET; triangular design; high quality visual and tactile surface with embossed pattern, limestone; foreign fiber inclusions possible; absorption of direct sound and sound reflected from the ceiling; this creates high acoustic performance; for installation in the MOVE IT 25 suspended system composed of node connectors and profiles; subsequent insertion in already installed MOVE IT suspended system possible; installation without tools;

Product data & specification documents

Datasheets

Certificates

Download all
