MOVE IT 25 / 45 ACOUSTIC square grid
inlay
050-231121S
Quickinfo
PET feltfrom recycled material
flame retardant version available
Colour
General
- Luminaire / Track
- Mounted
- limestone
Physical
- panel only for NODE connector + track 1210 mm
- length 1235 mm
- width 1235 mm
- height 25 mm
- 2.2 kg
Acoustics
- Alpha w (αw) up to 1
- SAC (sound absorption class) up to A
- NRC up to 1.3
- SAA up to 1.32
- Acoustic data calculations based on MOVE IT 25/45 acoustic square grid inlay, cavity 40cm
Equivalent sound absorption area (Aeq)
125 Hz
0.73
250 Hz
1.47
500 Hz
1.73
1000 Hz
2.2
2000 Hz
2.67
4000 Hz
2.77

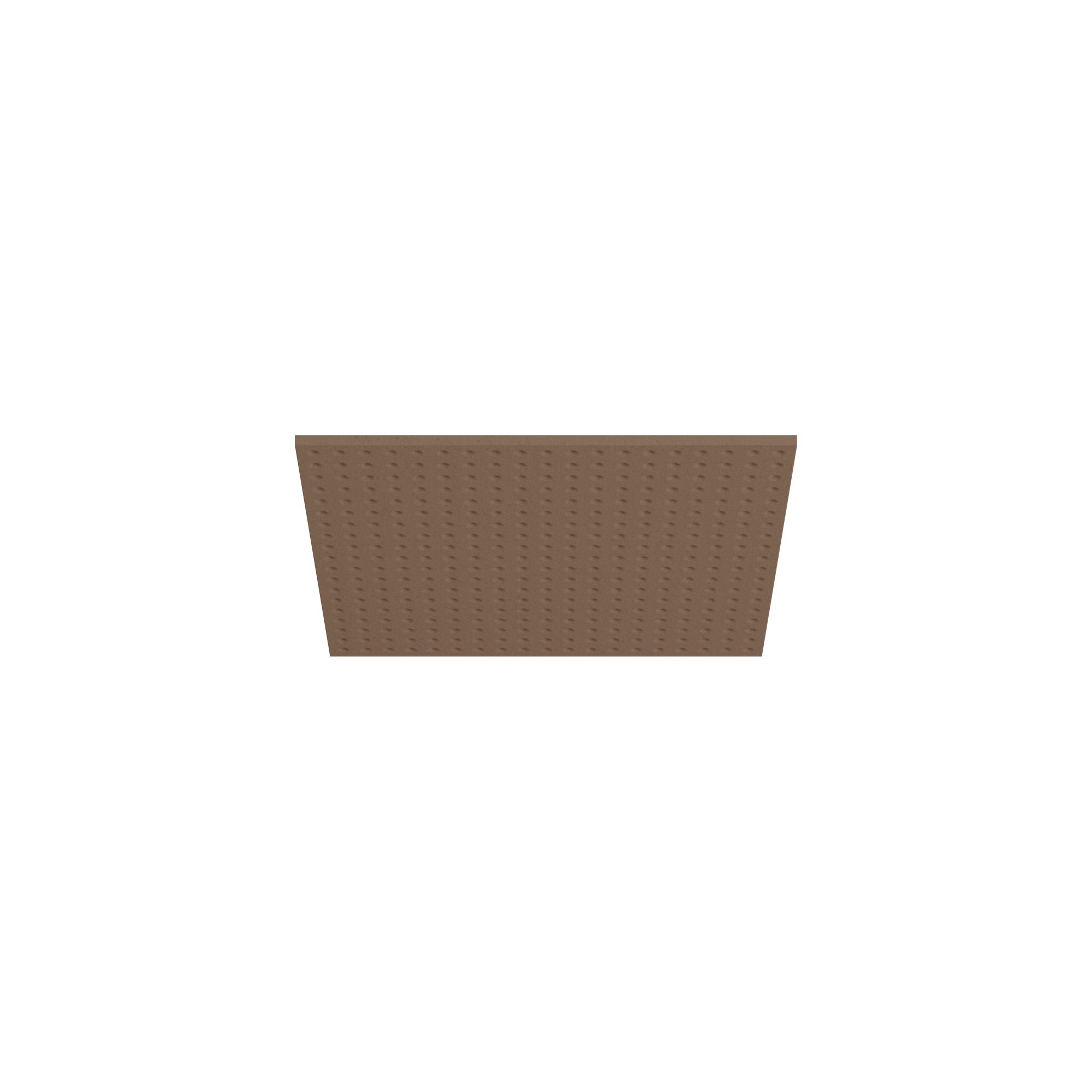

Acoustic element made of high quality, self-supporting PET felt with sound absorbing properties, consisting of at least 50% post-consumer recycled PET; square design; high quality visual and tactile surface with embossed pattern, limestone; foreign fiber inclusions possible; absorption of direct sound and sound reflected from the ceiling; this creates high acoustic performance; for installation in the MOVE IT 25 / 45 suspended system composed of node connectors and profiles; subsequent insertion in already installed MOVE IT suspended system possible; installation without tools;
