MOVE IT 25 / 45 ACOUSTIC square grid
inlay
050-231121W
Quickinfo
PET feltmade of at least 50% post-consumer recycled material
flame retardant version available
Colour
General
- Luminaire / Track
- Mounted
- white
Physical
- panel only for NODE connector + track 1210 mm
- length 1235 mm
- width 1235 mm
- height 25 mm
Acoustics
- Alpha w (αw) up to 1 1
- SAC (sound absorption class) up to A 1
- NRC up to 1.3 1
- SAA up to 1.32 1
Equivalent sound absorption area (Aeq)
125 Hz
0.73
250 Hz
1.47
500 Hz
1.73
1000 Hz
2.2
2000 Hz
2.67
4000 Hz
2.77
1 Acoustic data calculations based on MOVE IT 25/45 acoustic square grid inlay, cavity 40cm

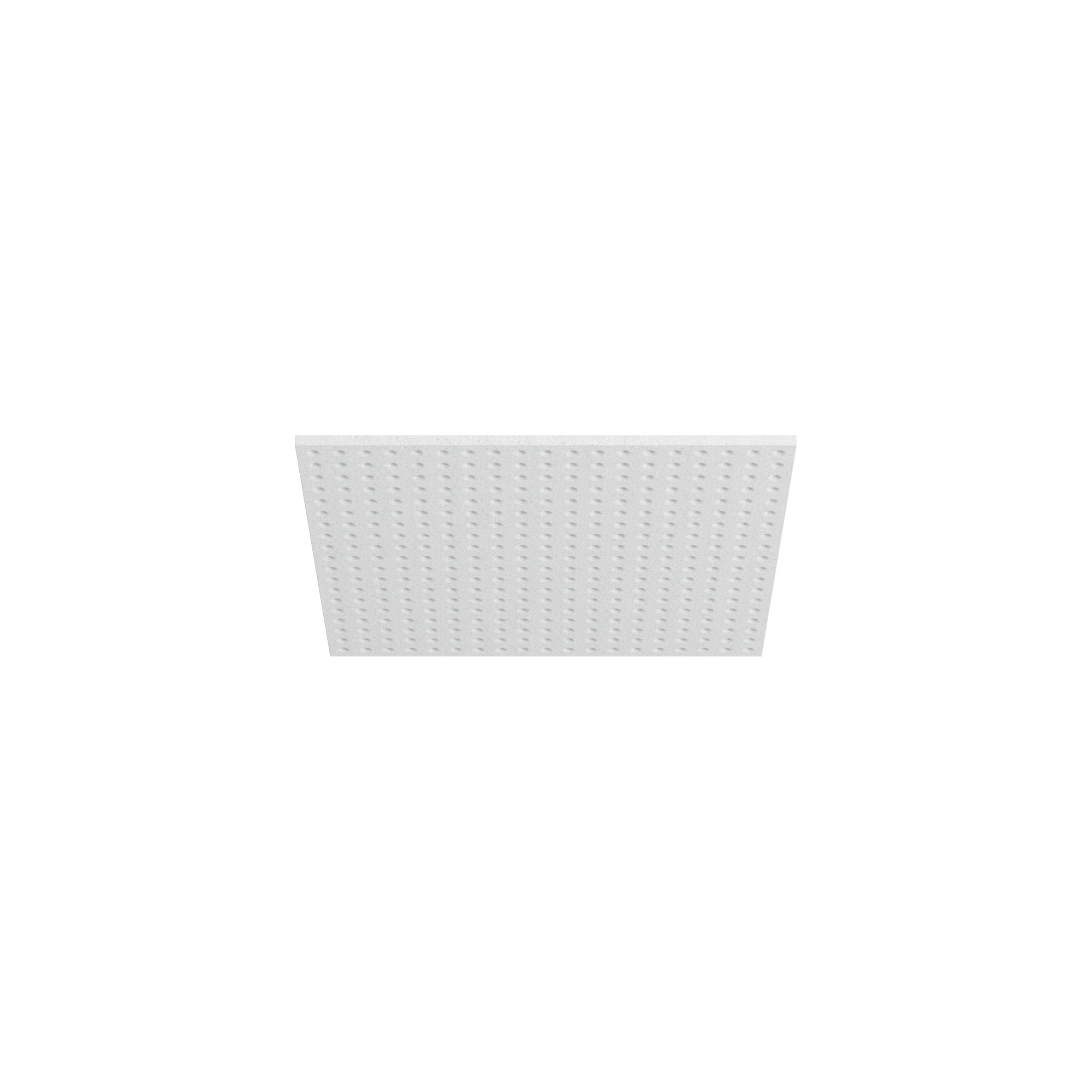

Acoustic element made of high quality, self-supporting PET felt with sound absorbing properties, consisting of at least 50 % post-consumer recycled PET; square design; high quality visual and tactile surface with embossed pattern, white; foreign fiber inclusions possible; absorption of direct sound and sound reflected from the ceiling; this creates high acoustic performance; for installation in the MOVE IT 25 / 45 suspended system composed of node connectors and profiles; subsequent insertion in already installed MOVE IT suspended system possible; installation without tools;
