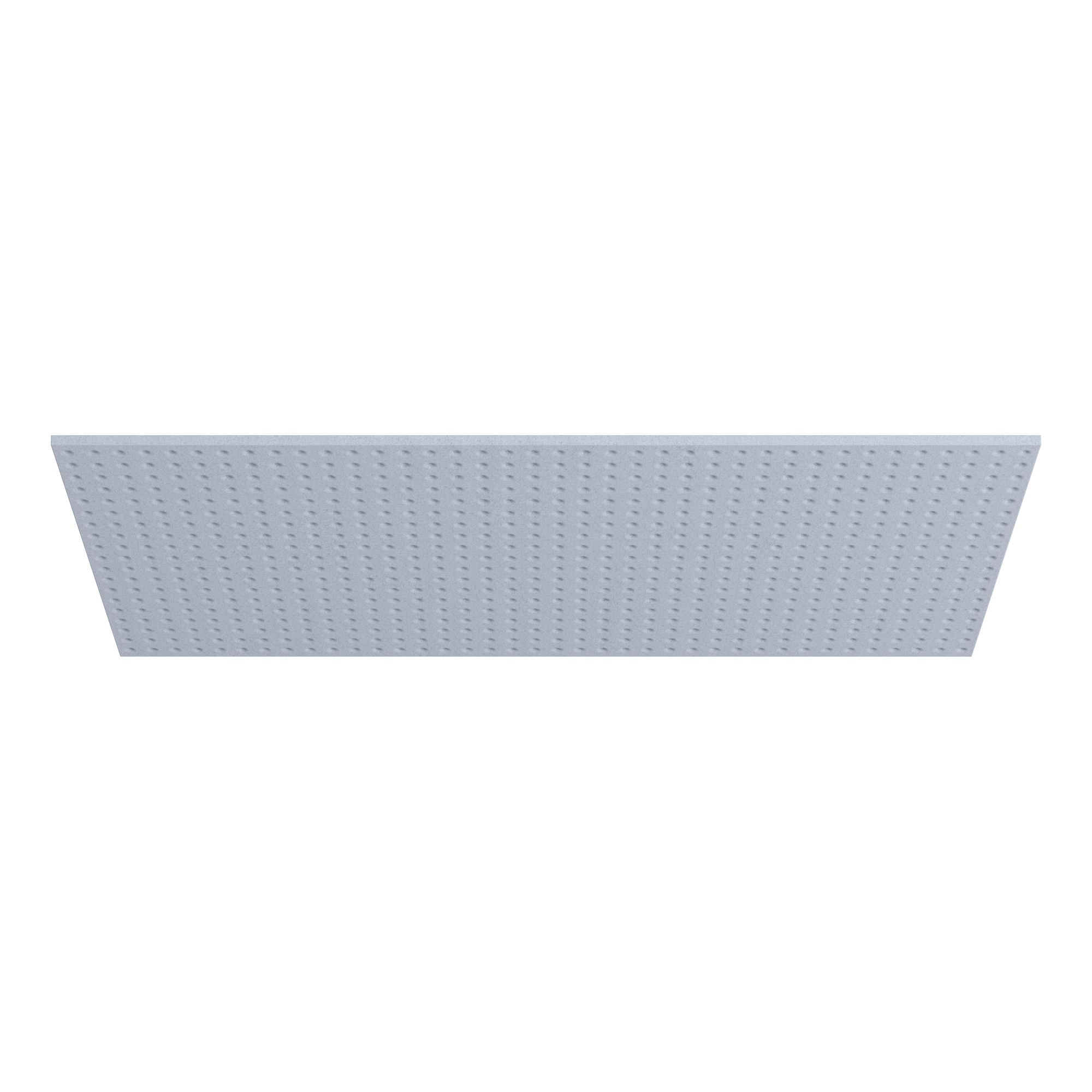

MOVE IT 25 / 45 ACOUSTIC double grid inlay

MOVE IT 25 / 45 ACOUSTIC double grid

inlay

050-231321D

Quickinfo

PET felt
from recycled material
flame retardant version available

Colour

General

  • Luminaire / Track
  • Mounted
  • marble grey

Physical

  • panel only for NODE connector + track 1210 mm
  • length 2435 mm
  • width 1235 mm
  • height 25 mm
  • 2.2 kg

Acoustics

  • Alpha w (αw) up to 1
  • SAC (sound absorption class) up to A
  • NRC up to 1.3
  • SAA up to 1.32
  • Acoustic data calculations based on MOVE IT 25/45 acoustic square grid inlay, cavity 40cm

Equivalent sound absorption area (Aeq)

125 Hz

1.3

250 Hz

2.73

500 Hz

3.2

1000 Hz

4.1

2000 Hz

4.97

4000 Hz

5.23

Acoustic element made of high quality, self-supporting PET felt with sound absorbing properties, consisting of at least 50% post-consumer recycled PET; rectangular design; high quality visual and tactile surface with embossed pattern, marble grey; foreign fiber inclusions possible; absorption of direct sound and sound reflected from the ceiling; this creates high acoustic performance; for installation in the MOVE IT 25 / 45 suspended system composed of node connectors and profiles; subsequent insertion in already installed MOVE IT suspended system possible; installation without tools;

Product data & specification documents

Datasheets

Certificates

Download all
mainDrawing
