MOVE IT 25 / 45 ACOUSTIC double grid inlay

MOVE IT 25 / 45 ACOUSTIC double grid

inlay

050-231321W

Quickinfo

PET felt
from recycled material
flame retardant version available

Colour

General

  • Luminaire / Track
  • Mounted
  • white

Physical

  • panel only for NODE connector + track 1210 mm
  • length 2435 mm
  • width 1235 mm
  • height 25 mm

Acoustics

  • Alpha w (αw) up to 1 1
  • SAC (sound absorption class) up to A 1
  • NRC up to 1.3 1
  • SAA up to 1.32 1

Equivalent sound absorption area (Aeq)

125 Hz

1.3

250 Hz

2.73

500 Hz

3.2

1000 Hz

4.1

2000 Hz

4.97

4000 Hz

5.23
1 Alpha w, SAC, NRC, SAA refer to the best result of the entire product family

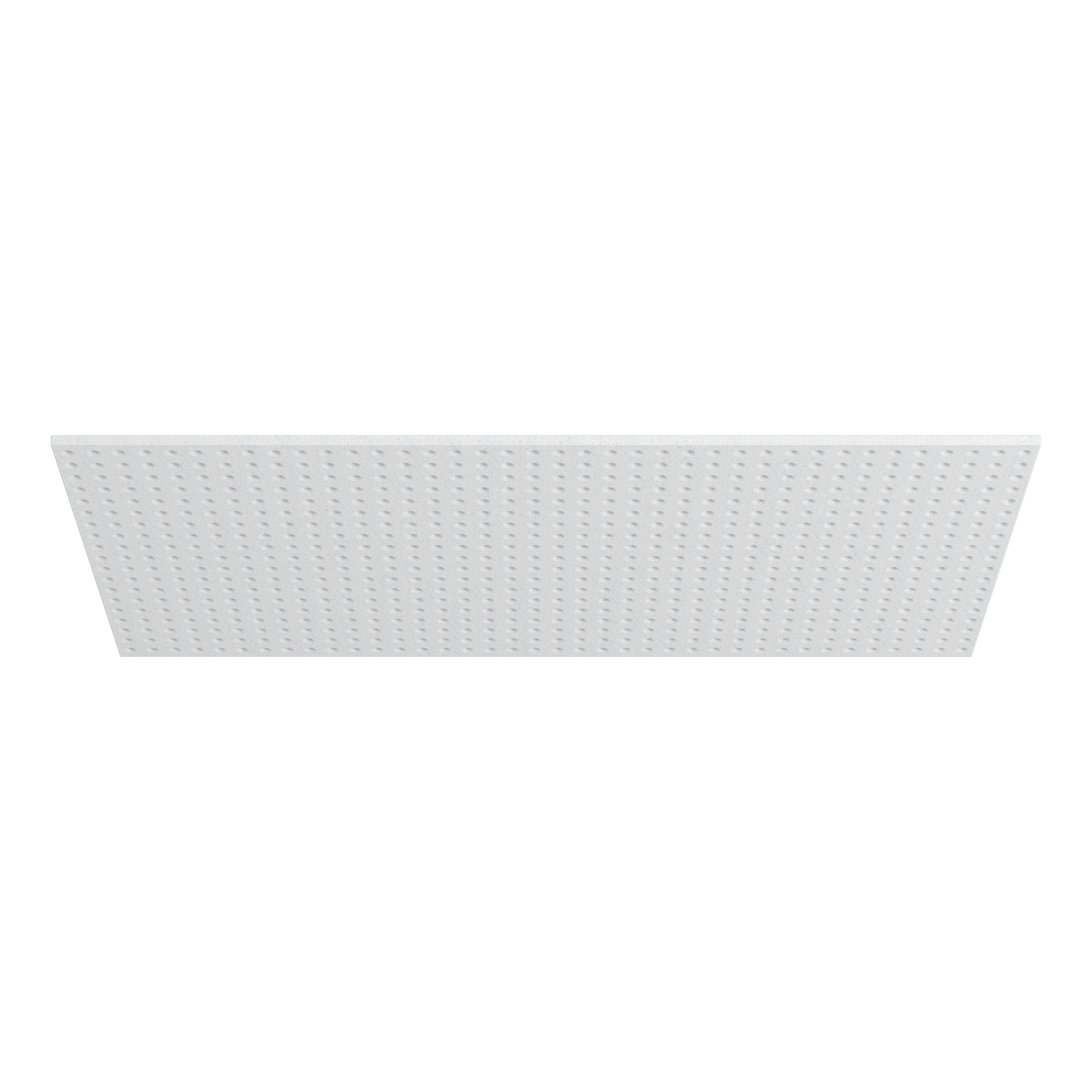

Acoustic element made of high quality, self-supporting PET felt with sound absorbing properties, consisting of 60% recycled PET; rectangular design; high quality visual and tactile surface with embossed pattern, white; foreign fiber inclusions possible; absorption of direct sound and sound reflected from the ceiling; this creates high acoustic performance; for installation in the MOVE IT 25 / 45 suspended system composed of node connectors and profiles; subsequent insertion in already installed MOVE IT suspended system possible; installation without tools;
