MOUNTING HOUSING square
049-8813037
Colour
General
- Ceiling
- Recessed
- traffic white
- RAL 9016 1
- IP20
Electrical
- DALI-2
- PC1 220-240V
- 1 DALI Addr.
Physical
- length 260 mm
- width 260 mm
- height 120 mm
Cutout
- length 270 mm
- width 270 mm
- min. ceiling thickness 8 mm
- max. ceiling thickness 25 mm
- recessed depth 140 mm
1 RAL code

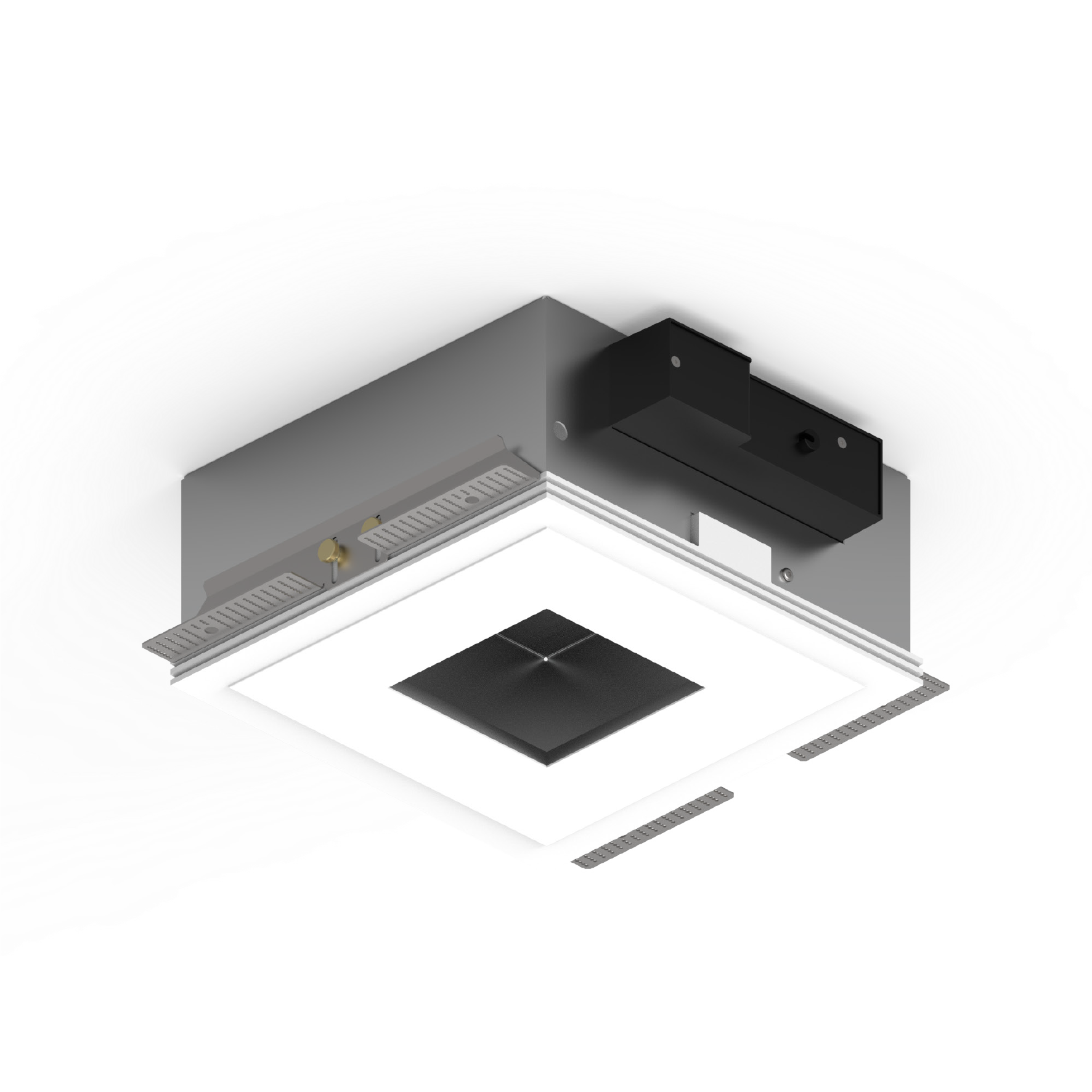

Recessed housing made of pressed steel sheet for flush installation in plasterboard ceilings, underside of aluminium-reinforced plaster (paintable); with square cut-out; no break-out of edges; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 8-25 mm; 3 non-reversible plug and play connector sockets for power supply to the spotlights; spotlight can be installed and moved without tools by means of magnetic holders; hot plug protection; surface traffic white powder coated; degree of protection IP20; PC1 220-240V; incl. DALI-2 converter; all spotlights together DALI dimmable; control gear replaceable by an authorized professional;
