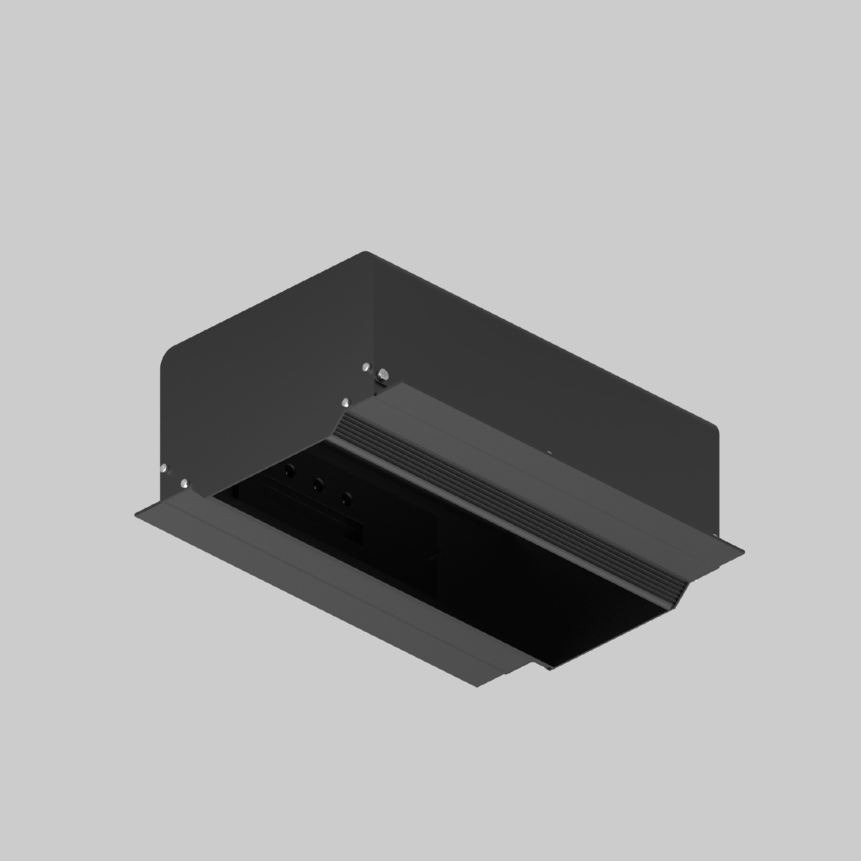

MOUNTING HOUSING 300 trim linear

049-8853038

Colour

General

  • Ceiling
  • Recessed
  • jet black
  • RAL 9005 1
  • IP20

Electrical

  • DALI-2
  • PC1 220-240V
  • 1 DALI Addr.

Physical

  • length 344 mm
  • width 254 mm
  • height 120 mm

Cutout

  • length 335 mm
  • width 135 mm
  • min. ceiling thickness 12.5 mm
  • max. ceiling thickness 12.5 mm
  • recessed depth 175 mm
1 RAL code

Installation housing in pressed steel sheet with rectangular cut-out; with wrap around edge; suitable for ceiling thickness of 12.5 mm; 3 non-reversible plug and play connector sockets for power supply to the spotlights; spotlight can be installed and moved without tools by means of magnetic holders; hot plug protection; surface jet black powder coated; degree of protection IP20; PC1 220-240V; incl. DALI-2 converter; all spotlights together DALI dimmable; control gear replaceable by an authorized professional;
