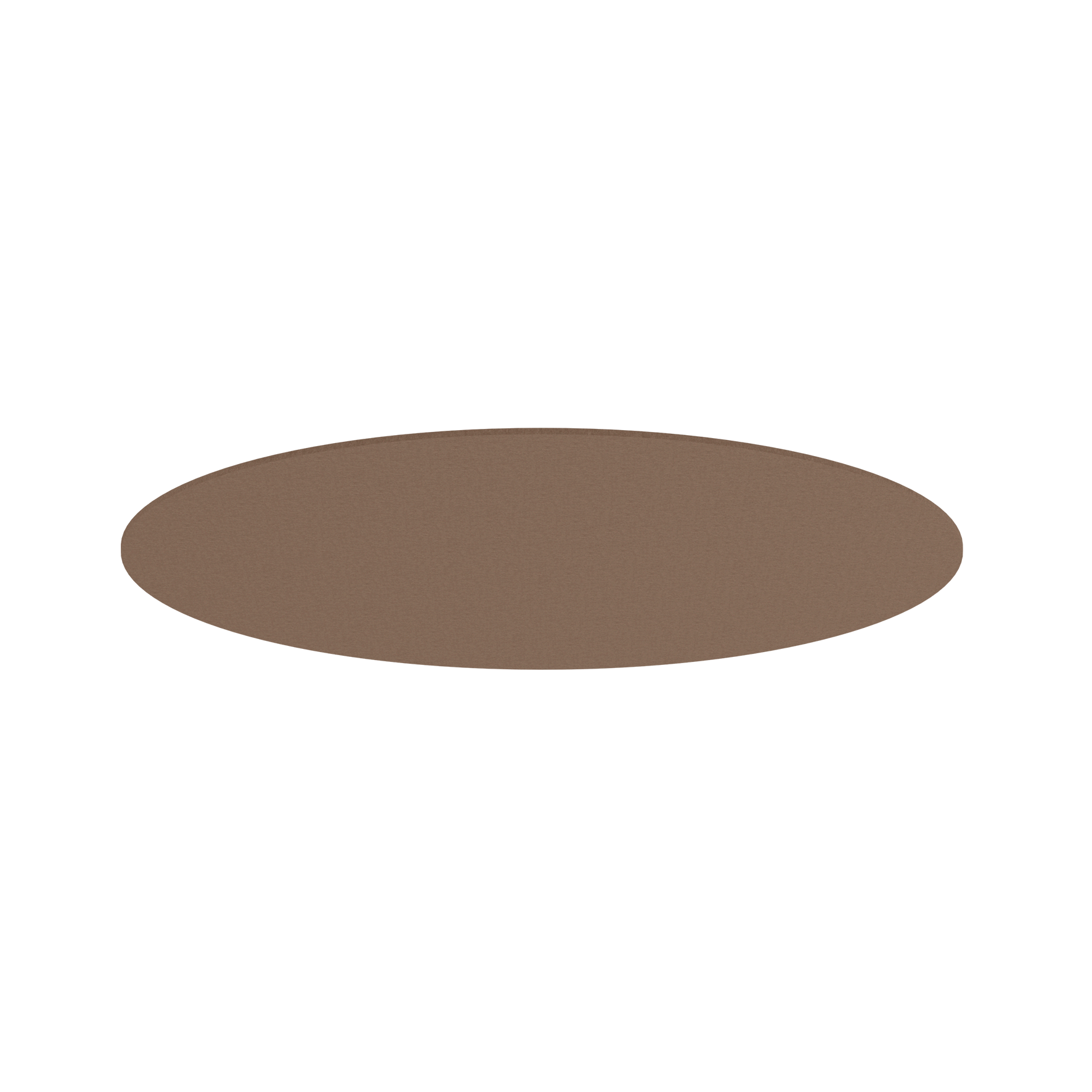

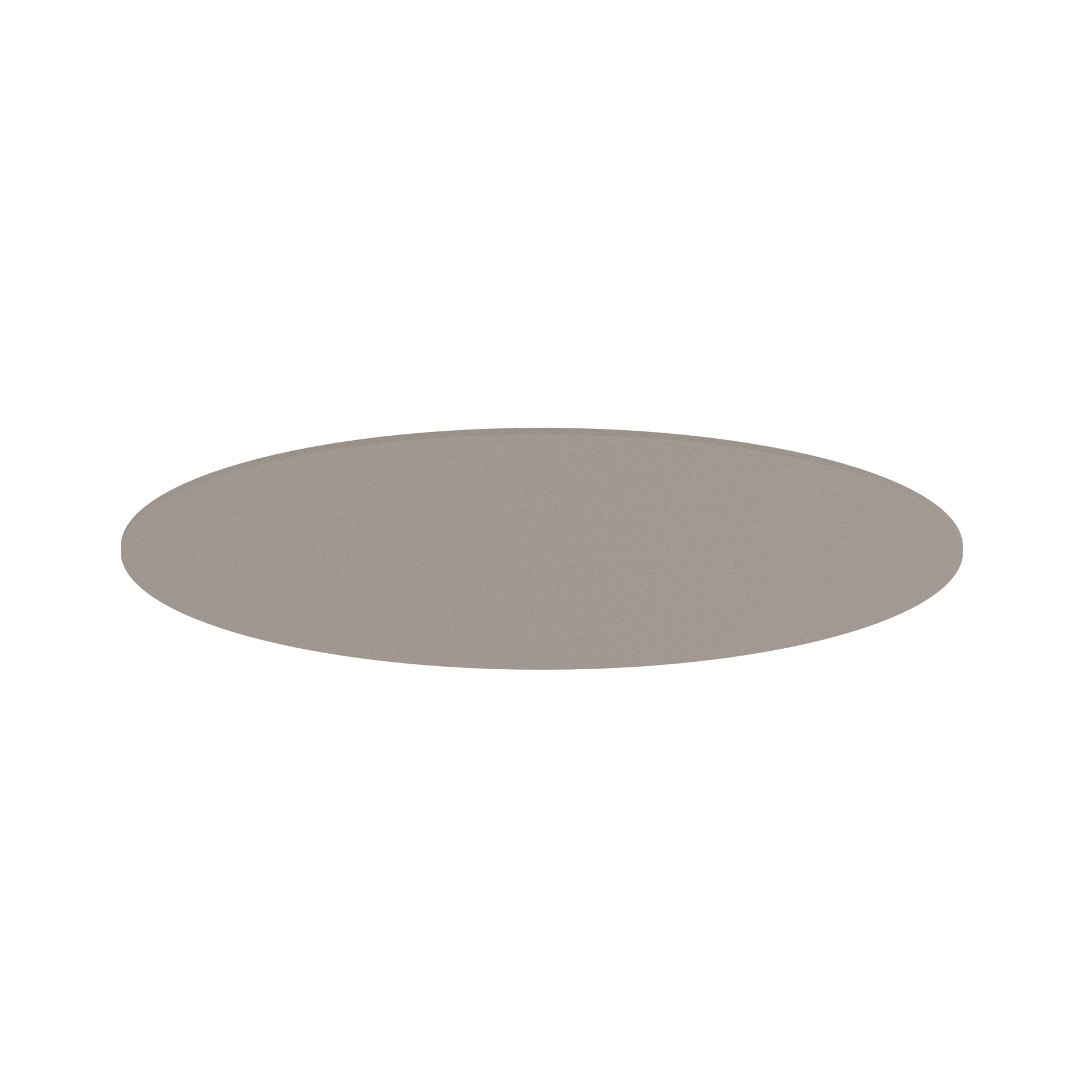

MINO CIRCLE ACOUSTIC 1500
inlay
034-270211S
Quickinfo
PET feltfrom recycled material
up to absorption class A
flame retardant version available
Colour
General
- Luminaire / Track
- Mounted
- limestone
Physical
- diameter 1434 mm
- height 24 mm
- 7.1 kg
Acoustics
- Alpha w (αw) up to 0.65
- SAC (sound absorption class) up to C
- NRC up to 0.7
- SAA up to 0.74
- Acoustic data calculations based on MINO CIRCLE ACOUSTIC 1000, cavity 100cm
Equivalent sound absorption area (Aeq)
125 Hz
0.97
250 Hz
1.2
500 Hz
1.83
1000 Hz
2.67
2000 Hz
3.07
4000 Hz
3.3
Acoustic element made of high quality, self-supporting PET felt with sound absorbing properties, consisting of at least 50% post-consumer recycled PET; round design; high quality visual and tactile surface, limestone; colour may deviate; absorption of direct sound and sound reflected from the ceiling; this creates high acoustic performance; for insertion into the MINO 60 CIRCLE 1500 ceiling or MINO 60 CIRCLE 1500 suspended;
