MINO CIRCLE ACOUSTIC 1500 ceiling;MINO CIRCLE ACOUSTIC 1500 inlay

MINO CIRCLE ACOUSTIC 1500

inlay

034-270211L

Quickinfo

PET felt
from recycled material
up to absorption class A
available as B-s1, d0

Colour

General

  • Luminaire / Track
  • Mounted
  • black

Physical

  • diameter 1434 mm
  • height 24 mm
  • 6.2 kg

Acoustics

  • Alpha w (αw) 0.65 1
  • SAC (sound absorption class) C 1
  • NRC 0.7 1
  • SAA 0.74 1
1 Alpha w, SAC, NRC, SAA refer to the best result of the entire product family

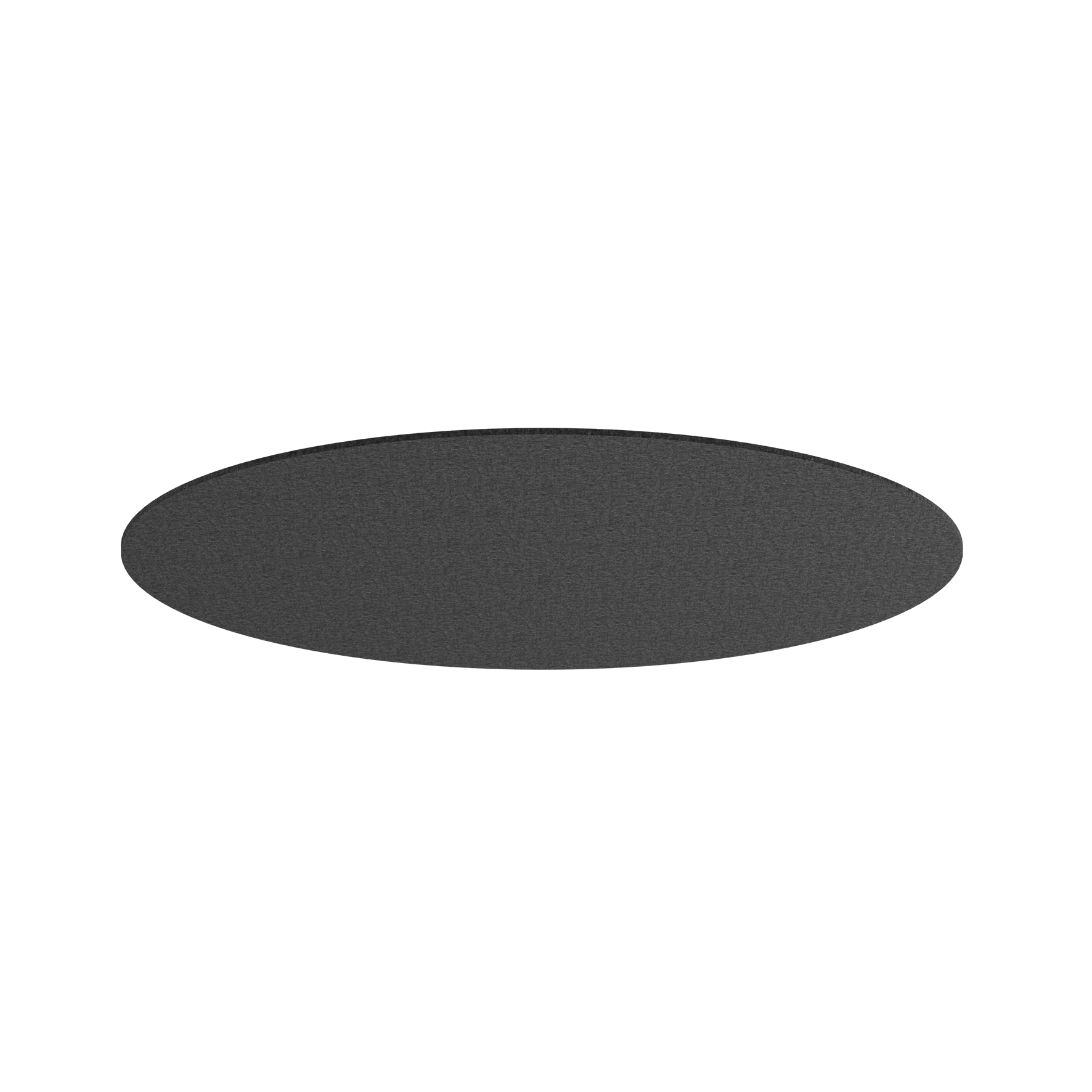

Acoustic element made of high quality, self-supporting PET felt with sound absorbing properties, consisting of 50% recycled PET; round design; high quality visual and tactile surface, black; colour may deviate; absorption of direct sound and sound reflected from the ceiling; this creates high acoustic performance; for insertion into the MINO 60 CIRCLE 1500 ceiling or MINO 60 CIRCLE 1500 suspended;

Product data & specification documents

Datasheets

Certificates

Download all
mainDrawing

Used in products
