MINO CIRCLE ACOUSTIC 1500 ceiling;MINO CIRCLE ACOUSTIC 1500 inlay

MINO CIRCLE ACOUSTIC 1500

inlay

034-270211W

Quickinfo

PET felt
from recycled material
up to absorption class A
flame retardant version available

Colour

General

  • Luminaire / Track
  • Mounted
  • white

Physical

  • diameter 1434 mm
  • height 24 mm
  • 7.1 kg

Acoustics

  • Alpha w (αw) up to 0.65
  • SAC (sound absorption class) up to C
  • NRC up to 0.7
  • SAA up to 0.74
  • Acoustic data calculations based on MINO CIRCLE ACOUSTIC 1000, cavity 100cm

Equivalent sound absorption area (Aeq)

125 Hz

0.97

250 Hz

1.2

500 Hz

1.83

1000 Hz

2.67

2000 Hz

3.07

4000 Hz

3.3

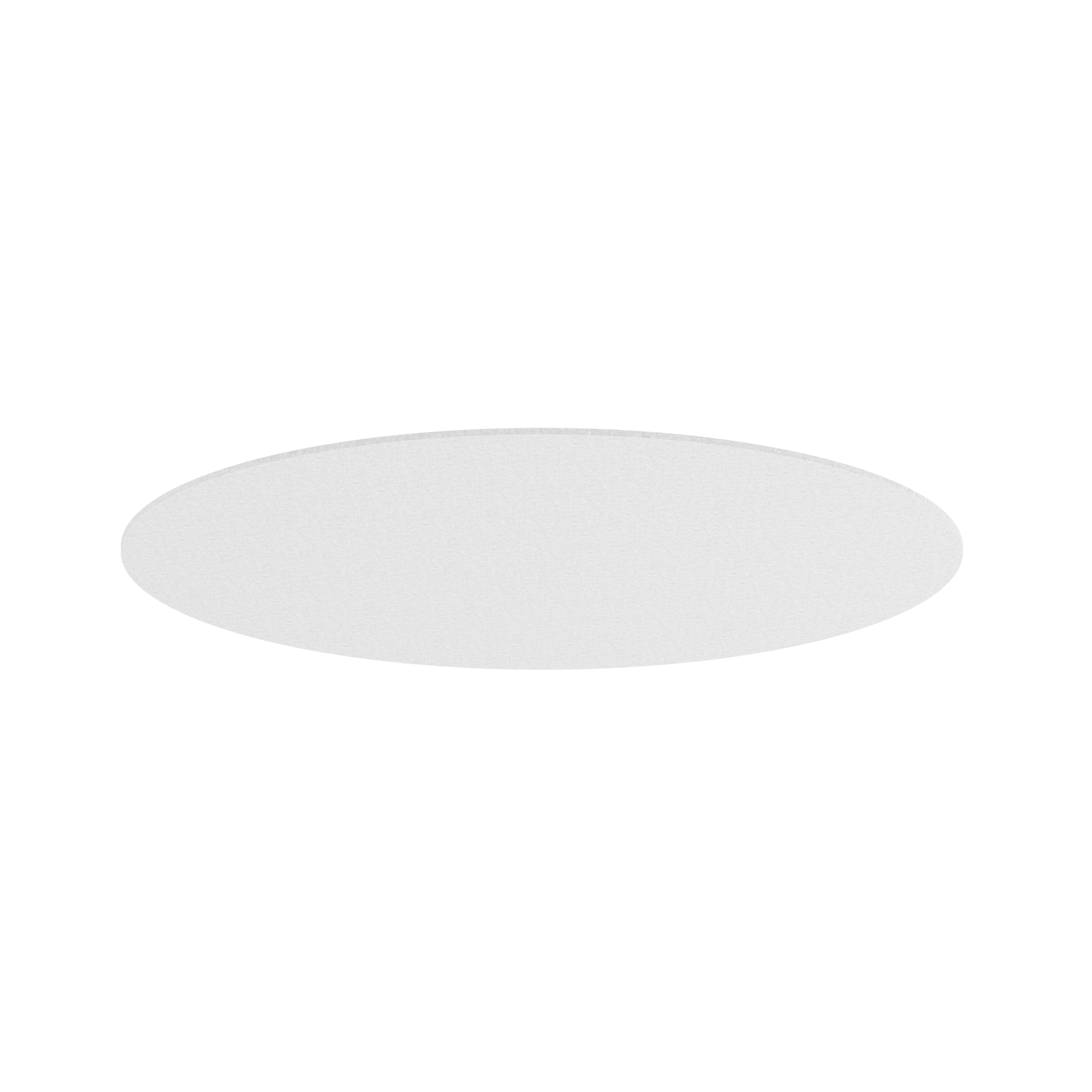

Acoustic element made of high quality, self-supporting PET felt with sound absorbing properties, consisting of at least 50% post-consumer recycled PET; round design; high quality visual and tactile surface, white; colour may deviate; absorption of direct sound and sound reflected from the ceiling; this creates high acoustic performance; for insertion into the MINO 60 CIRCLE 1500 ceiling or MINO 60 CIRCLE 1500 suspended;

Product data & specification documents

Datasheets

Certificates

Download all
mainDrawing

Used in products
