INDIRECT EXTENSION low power MOVE IT PRO;INDIRECT EXTENSION high power MOVE IT PRO

INDIRECT EXTENSION high power MOVE IT PRO

086-6805430B

Quickinfo

high power

Colour

General

  • Ceiling
  • Track Suspended
  • high power
  • white
  • IP20
  • 747 lm

LED

  • 2700 K
  • CRI ≥ 80
  • L90 / 50000 h
  • initial MacAdam ≤ 3 SDCM
  • MR 0.48
  • MDER 0.44

Optical

  • UGR < 10
  • ≥65° <1500 cd/m²

Electrical

  • system 5.5 W
  • inset 4.7 W
  • 50 mA
  • PC3
  • system 136 lm/W1

Physical

  • length 245 mm
  • width 24 mm
  • height 6 mm
1 incl. optical losses and the efficiency of the operating device (converter)

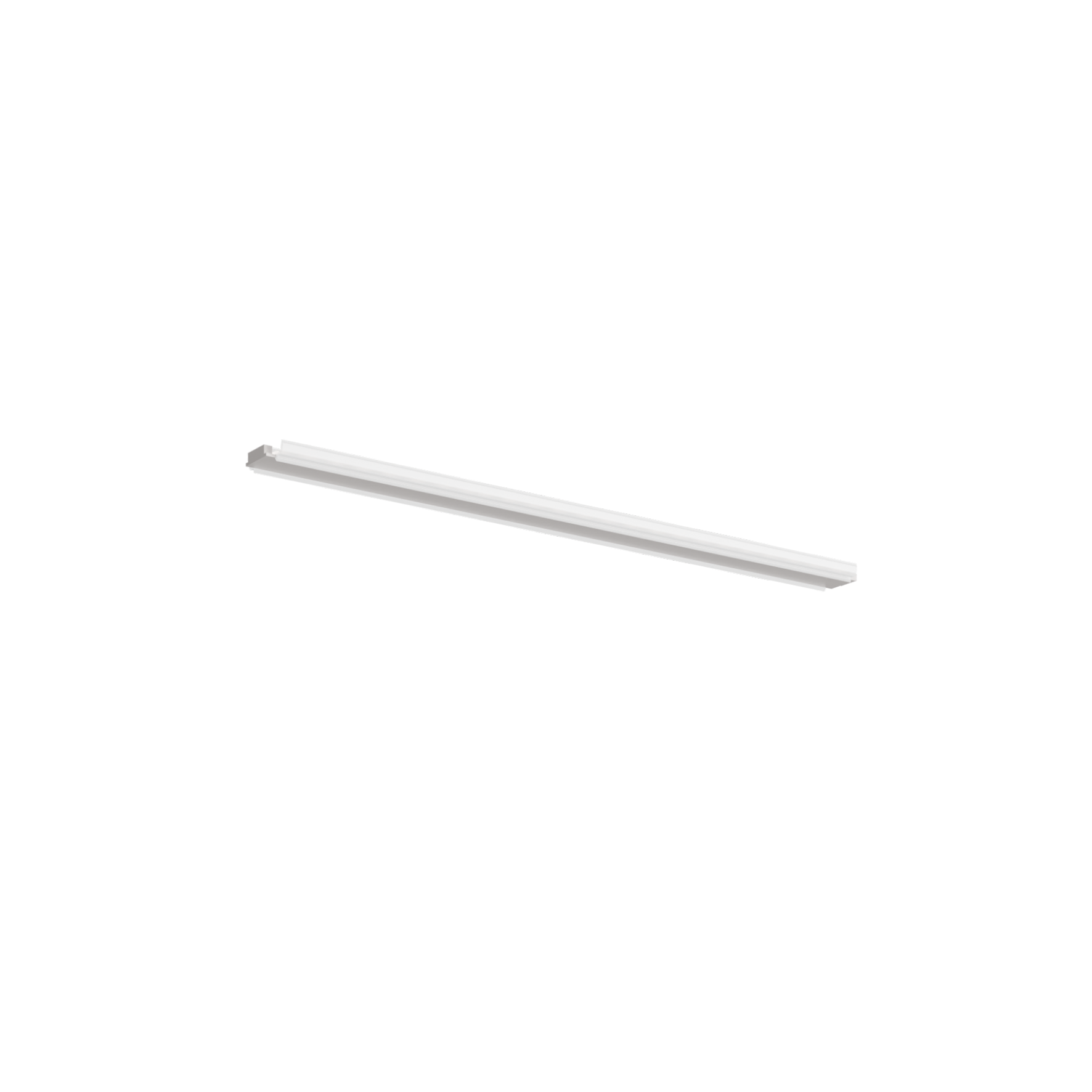

Linear light inset made of plastic; light inset can be installed flexibly and without tools; flush with profile system; power supplied via INDIRECT MOVE IT PRO inset; with indirect light component for additional accentuation of the ceiling; high quality lens system for maximum, homogeneous ceiling illumination; passive cooling of the LEDs through improved heat sink geometry; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; degree of protection IP20; PC3; light source replaceable by an authorized professional;

Product data & specification documents

Datasheets

Planing files & lighting data

Download all
lightDistribution
mainDrawing
