LINEA
system
Infos rapides
3000 K, 4000 K, tunable whiteCRI ≥ 90, CRI ≥ 97 / 3 SDCM
jusqu'à 4,030 lm/↑ 4,790 lm
jusqu'à 121 lm/W
L85 / 50000 h, L95 / 50000 h
DALI-2, DALI-2 DT8, non DIM
High Performance Opal, High Performance Opal / Asymmetric
IP20
Dessin simple
![](/content/Simple%20Drawings/LINEA/1081324/image-thumb__1081324__simple-drawing/LINEA_SYSTEM_WALL_01~-~page-1.png)
![](/content/Simple%20Drawings/LINEA/1081327/image-thumb__1081327__simple-drawing/LINEA_SYSTEM_WALL_02~-~page-1.png)
Distribution de la lumière
![](/content/Light%20distributions/1076268/image-thumb__1076268__light-distribution/LINEA-asymmetric-opal.png 1x, /content/Light%20distributions/1076268/image-thumb__1076268__light-distribution/LINEA-asymmetric-opal@2x.png 2x)
![](/content/Light%20distributions/1076269/image-thumb__1076269__light-distribution/LINEA-opal-opal.png 1x, /content/Light%20distributions/1076269/image-thumb__1076269__light-distribution/LINEA-opal-opal@2x.png 2x)
![](/content/Light%20distributions/1076270/image-thumb__1076270__light-distribution/LINEA-opal-spot.png 1x, /content/Light%20distributions/1076270/image-thumb__1076270__light-distribution/LINEA-opal-spot@2x.png 2x)
Description
Corps de luminaire et cache avant en profil extrudé en aluminium, version à bords en arête ; aucune vis visible ; conçu pour systèmes d’éclairage continus, équerres de raccordement 90° pour structure de système flexible ; surface thermolaquée ; convient à un montage mural ; éclairage homogène du mur ou du plafond par une distribution de lumière uniforme directe / indirecte ; cache HPO (High Performance Opal) pour éclairage homogène ; ou avec lentille spécialement calculée et asym. pour des intensités lum. homogènes (montage au choix pour éclairage du sol ou du plafond) ; LED économes en énergie à restitution de couleur élevée ; insert de spot JUST 26 montable au choix
![](/content/Feature%20Bilder/general/842654/image-thumb__842654__product-detail-marketing-img/Featurebilder_General_CRI-%3D98.jpg 1x, /content/Feature%20Bilder/general/842654/image-thumb__842654__product-detail-marketing-img/Featurebilder_General_CRI-%3D98@2x.jpg 2x)
CRI ≥ 98 XPECTRUM (facultatif)

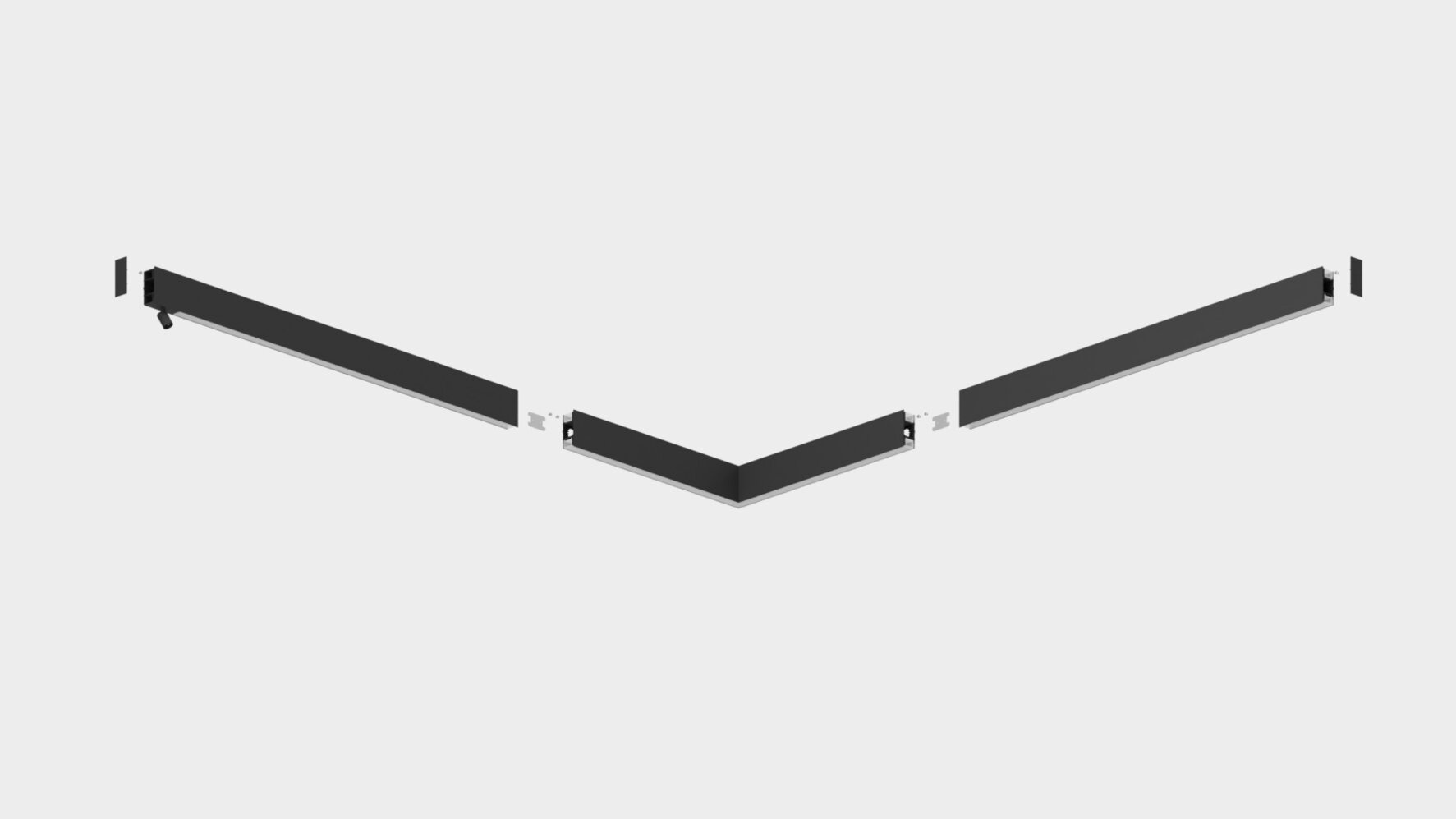

System components
Click to see components
![](/content/System/linea/3796971/image-thumb__3796971__scroll-video-poster/LINEA_Explosion_Standbild.jpg 1x, /content/System/linea/3796971/image-thumb__3796971__scroll-video-poster/LINEA_Explosion_Standbild@2x.jpg 2x)
![LINEA opal / asymmetric wall system;LINEA opal / opal wall system LINEA opal / asymmetric wall system;LINEA opal / opal wall system](/pim/LINEA%20opal/asymmetric%20wall%20system/1468205/image-thumb__1468205__hotspot-detail/_0001_linea_id0010_rs_v1_system_system_RZ.png 1x, /pim/LINEA%20opal/asymmetric%20wall%20system/1468205/image-thumb__1468205__hotspot-detail/_0001_linea_id0010_rs_v1_system_system_RZ@2x.png 2x)

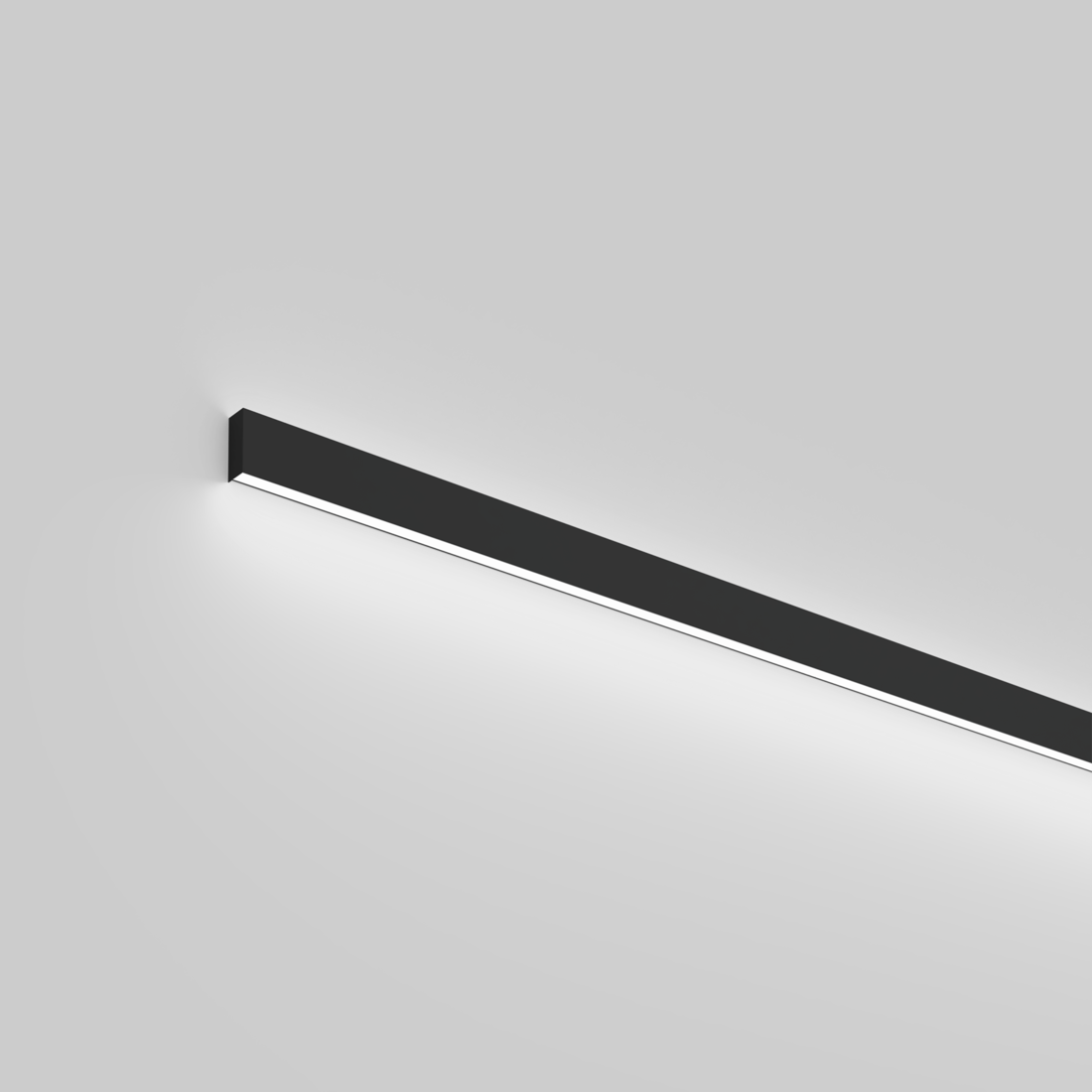

LINEA opal / asymmetric wall system
3000 K, 4000 K, tunable whiteCRI ≥ 90, CRI ≥ 97 / 3 SDCM
jusqu'à 4,030 lm/↑ 4,790 lm
jusqu'à 121 lm/W
L85 / 50000 h, L95 / 50000 h
DALI-2, DALI-2 DT8, non DIM
High Performance Opal, High Performance Opal / Asymmetric
IP20
![LINEA inner corner opal / asymmetric wall system;LINEA inner corner opal / opal wall system LINEA inner corner opal / asymmetric wall system;LINEA inner corner opal / opal wall system](/pim/LINEA%20inner%20corner%20opal/asymmetric%20wall%20system/1468489/image-thumb__1468489__hotspot-detail/_0002_linea_id0010_rs_v1_system_corner_innen_RZ.png 1x, /pim/LINEA%20inner%20corner%20opal/asymmetric%20wall%20system/1468489/image-thumb__1468489__hotspot-detail/_0002_linea_id0010_rs_v1_system_corner_innen_RZ@2x.png 2x)

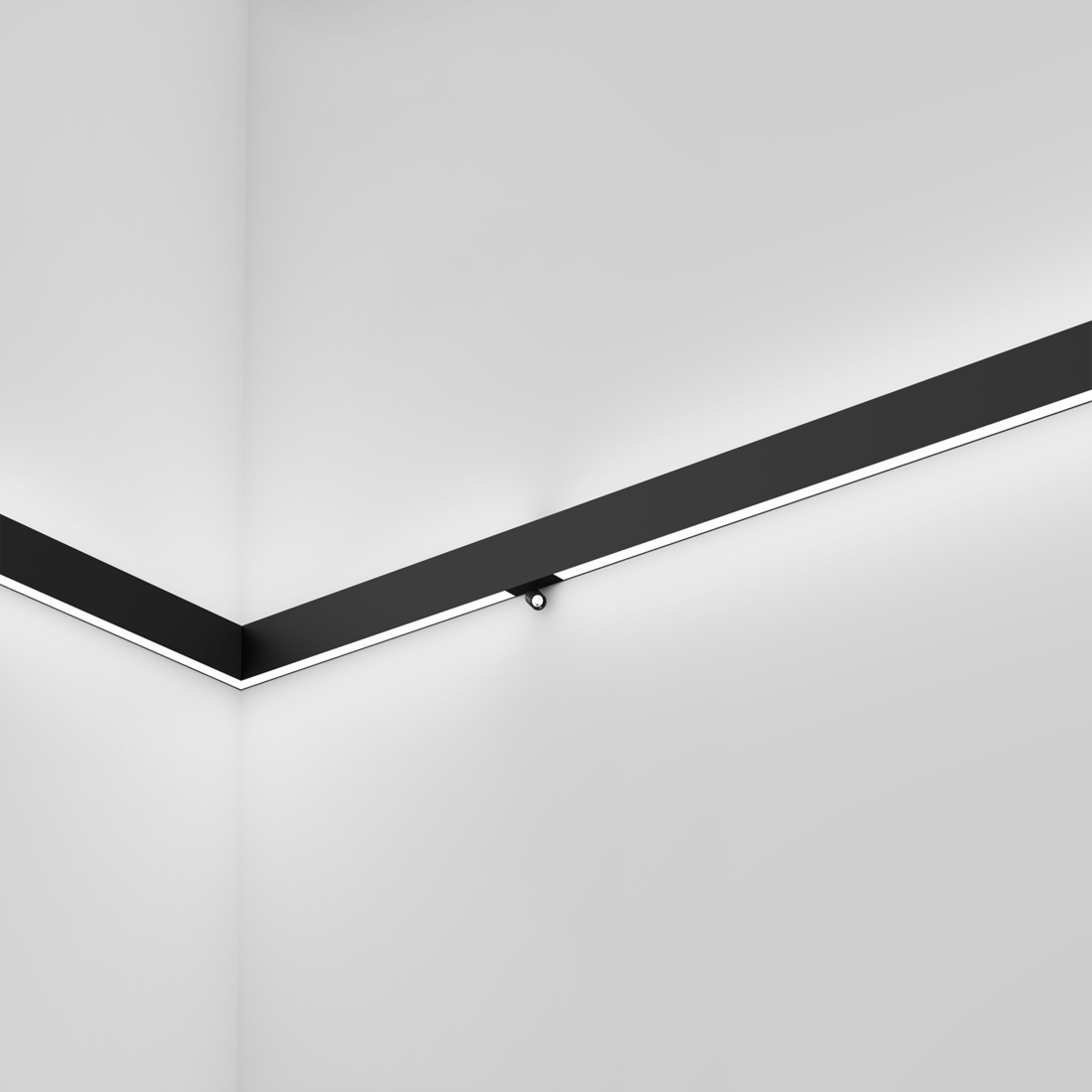

LINEA inner corner opal / asymmetric wall system
3000 K, 4000 K, tunable whiteCRI ≥ 90, CRI ≥ 97 / 3 SDCM
jusqu'à 4,030 lm/↑ 4,790 lm
jusqu'à 121 lm/W
L85 / 50000 h, L95 / 50000 h
DALI-2, DALI-2 DT8, non DIM
High Performance Opal, High Performance Opal / Asymmetric
IP20
![LINEA opal / 1 spot wall system LINEA opal / 1 spot wall system](/pim/LINEA%20opal/1%20spot%20wall%20system/1468226/image-thumb__1468226__hotspot-detail/_0000_linea_id0010_rs_v1_system_system-3spot_RZ.png 1x, /pim/LINEA%20opal/1%20spot%20wall%20system/1468226/image-thumb__1468226__hotspot-detail/_0000_linea_id0010_rs_v1_system_system-3spot_RZ@2x.png 2x)

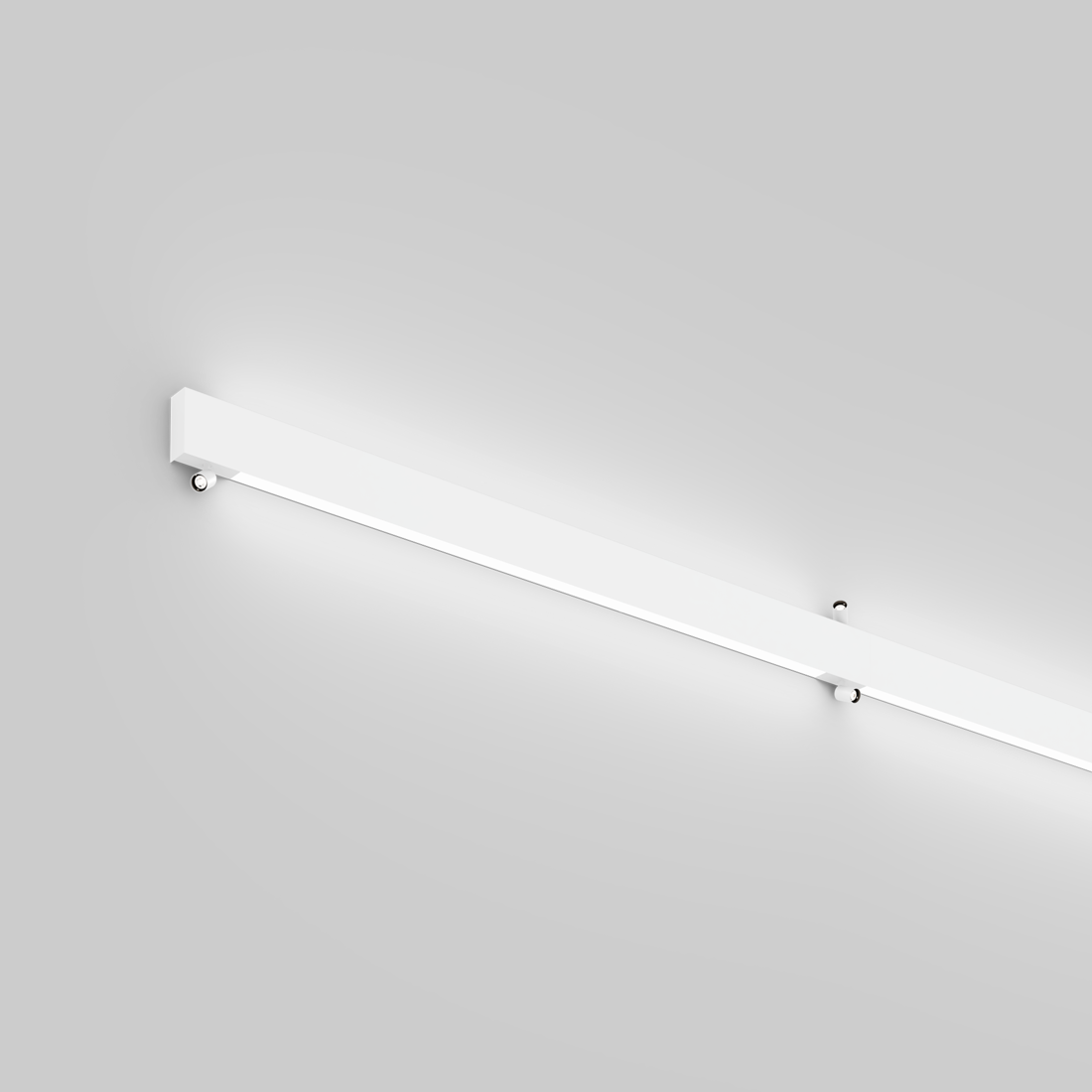

LINEA opal / 1 spot wall system
3000 K, 4000 K, tunable whiteCRI ≥ 90, CRI ≥ 97 / 3 SDCM
jusqu'à 4,030 lm/↑ 4,790 lm
jusqu'à 121 lm/W
L85 / 50000 h, L95 / 50000 h
DALI-2, DALI-2 DT8, non DIM
High Performance Opal, High Performance Opal / Asymmetric
IP20
