SPOT LINE
MOVE IT 25
050-0220538M
Quickinfo
3000 KCRI ≥ 97 / 3 SDCM
UGR < 16
96 lm/W
L80 / 50000 h
DALI-2 single control
IP20 / PC3 / 48 V
Colour
General
- Ceiling / Wall
- Track
- black
- RAL 9005 1
- IP20
- 363 lm
- optical inset 96 lm/W2
LED
- 3000 K
- CRI ≥ 97
- L80 / 50000 h
- initial MacAdam ≤ 3 SDCM
- Rg: 92
- Rf: 86
- R{1-15}: 94
- MR 0.53
- MDER 0.48
Optical
- medium
- UGR < 16
- ≤ 1.0 3
- SVM ≤ 0.4 3
Electrical
- DALI-2 single control
- 48 V
- fixture 4.5 W
- fixture 81 lm/W4
- optical inset 3.8 W
- PC3
- 1 DALI Addr.
Physical
- length 155 mm
- width 25 mm
- height 45 mm
- 0.12 kg

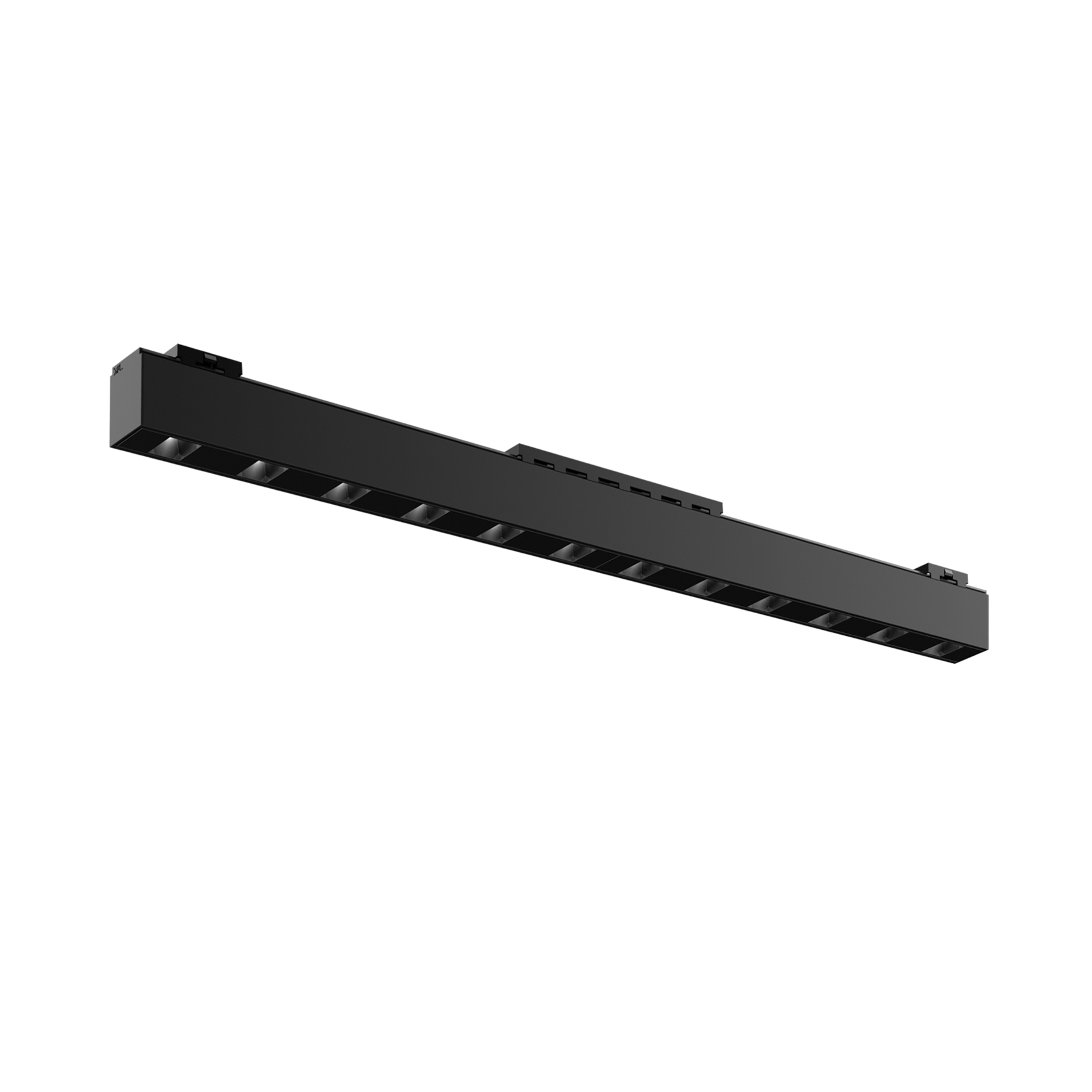

Linear light inset made of aluminium; surface anodised black; light inset can be installed and moved without tools by means of magnetic holders+locking; flush with profile system; power supplied via MOVE IT system track profile; hot plug protection; fitted with single LED light points; passive cooling of the LEDs through improved heat sink geometry; with CSP (Chip-Scale-Packaging) technology for maximum efficiency; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 97; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; good glare control through recessed light point level; inserted lenses with medium radiation characteristic 31°; UGR ≤ 16; degree of protection IP20; PC3; 48 V; DALI single control; flicker-free visual comfort through analogue current control (minimum value 1%); light source not replaceable;
