PIVOT
MOVE IT 25 / 45
050-0312L38O
Quickinfo
tunable whiteCRI ≥ 80 / 3 SDCM
123 lm/W
L90 / 50000 h
DALI-2 DT8
IP20 / PC3 / 48 V
Colour
General
- Ceiling
- Track
- rotation 360°
- black
- RAL9005 1
- 1080 lm/m
- IP20
- 650 lm
LED
- tunable white
- 1800 K - 4000 K
- CRI ≥ 80
- L90 / 50000 h
- initial MacAdam ≤ 3 SDCM
- MR 0.72
- MDER 0.66
Optical
- opal (lambertsch)
- ≤ 1.0 2
- SVM ≤ 0.4 2
Electrical
- DALI-2 DT8
- 48 V
- inset 5.3 W
- PC3
- inset 123 lm/W3
- 1 DALI Addr.
- 9 W/m
Physical
- length 610 mm
- width 33 mm
- height 33 mm
- 0.3 kg

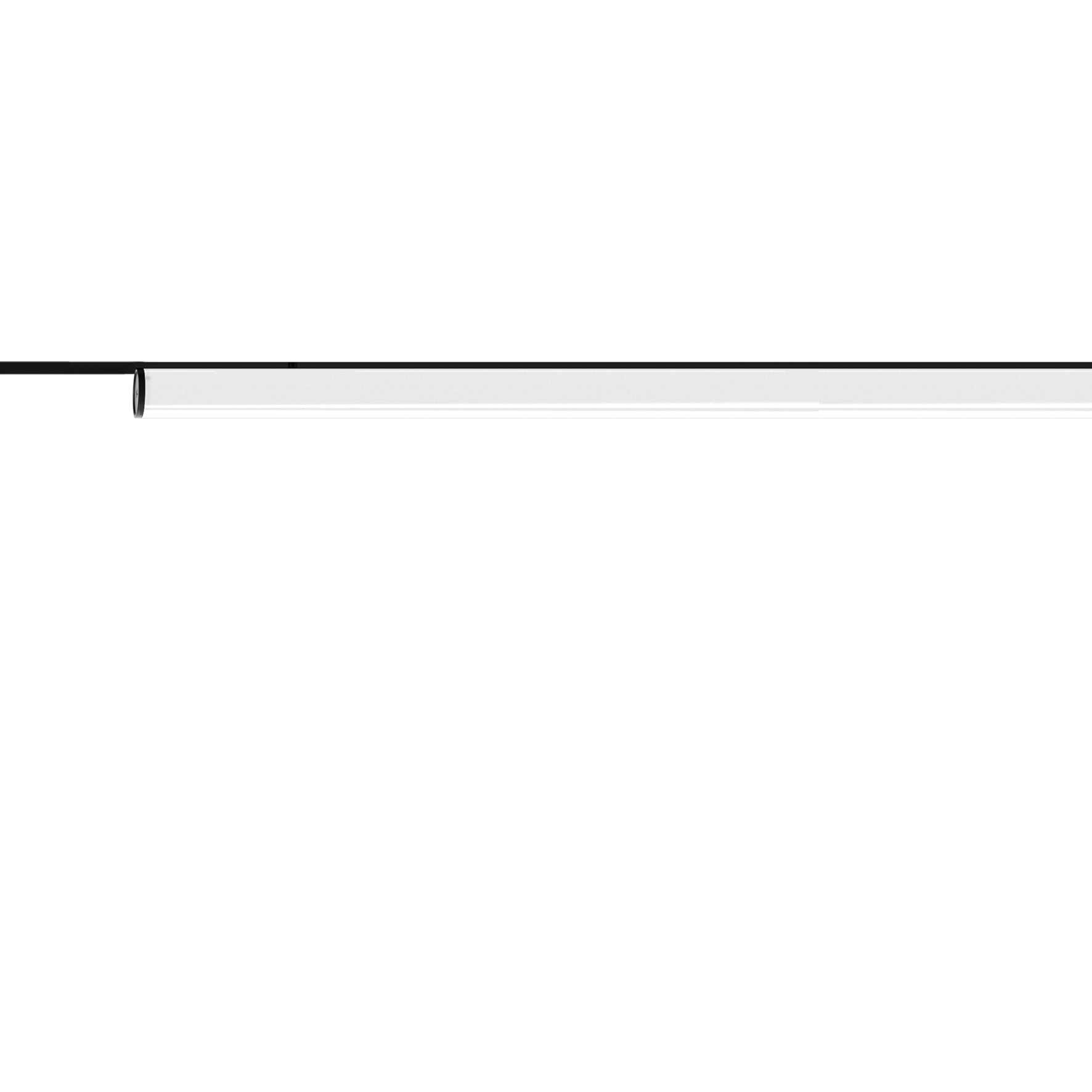

Cylindrical, decorative-graphic light inset made of aluminium and satinised PMMA for homogeneous illumination; surface anodised black; light inset can be installed and moved without tools by means of magnetic holders+locking; suitable for two MOVE IT 25 / 45 profiles as well as one MOVE IT 25 / 45 profile (axial arrangement); holders 360° rotatable; power supplied via MOVE IT system track profile; hot plug protection; passive cooling of the LEDs through improved heat sink geometry; with CSP (Chip-Scale-Packaging) technology for maximum efficiency; light colour: tunable white diodes (1800-4000 K); binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; degree of protection IP20; PC3; DALI single control; flicker-free visual comfort through analogue current control (minimum value 1%); light source replaceable by an authorized professional;
